Product Description

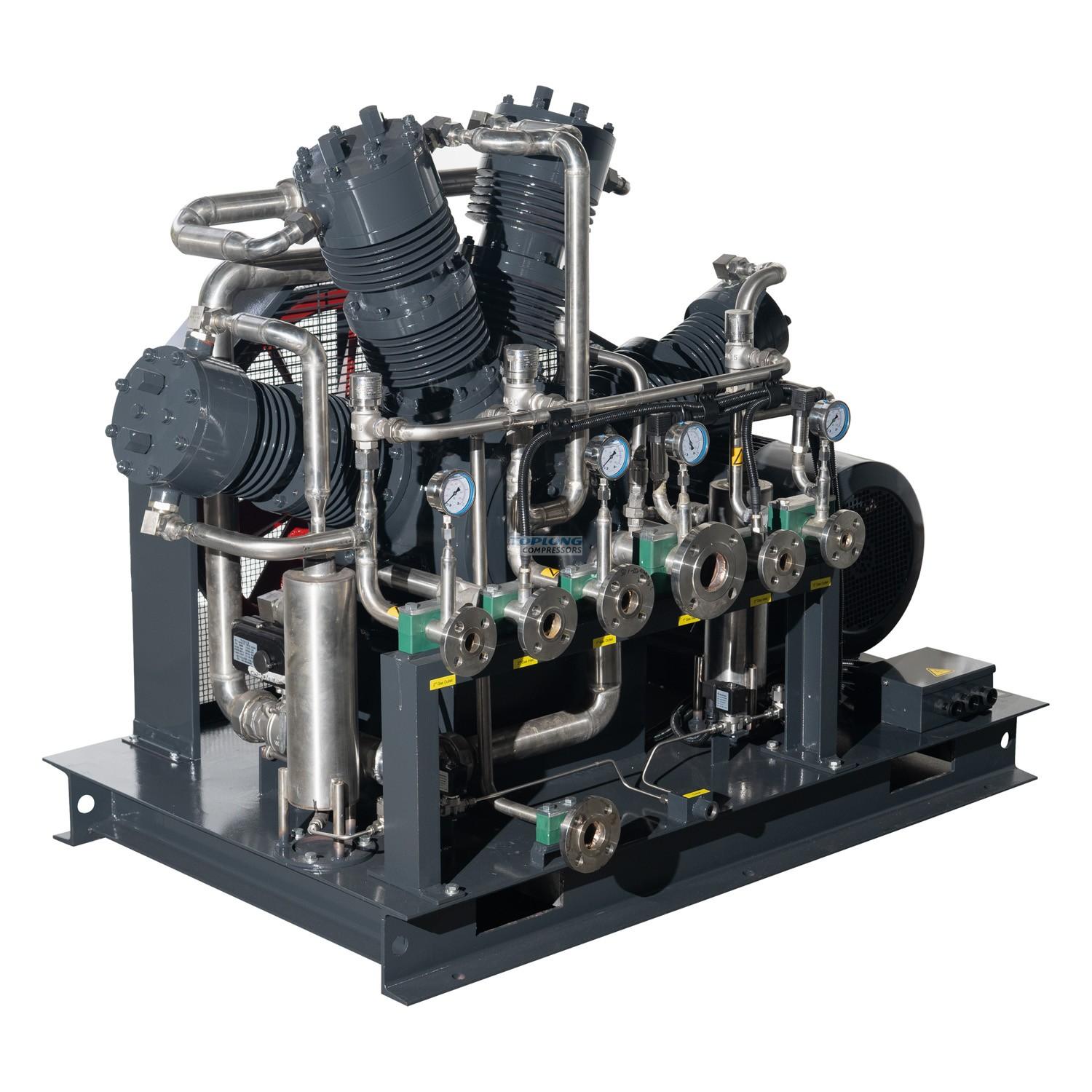

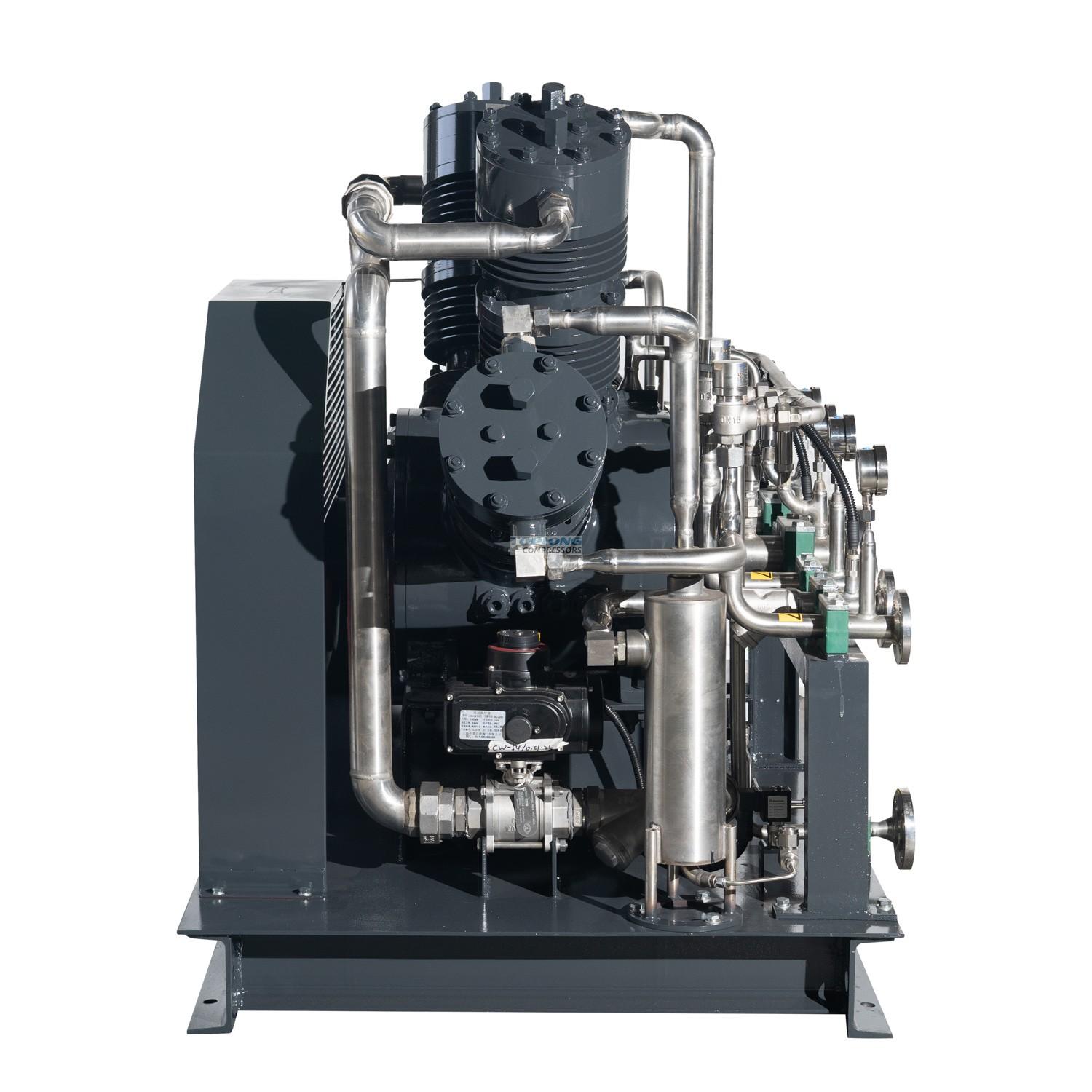

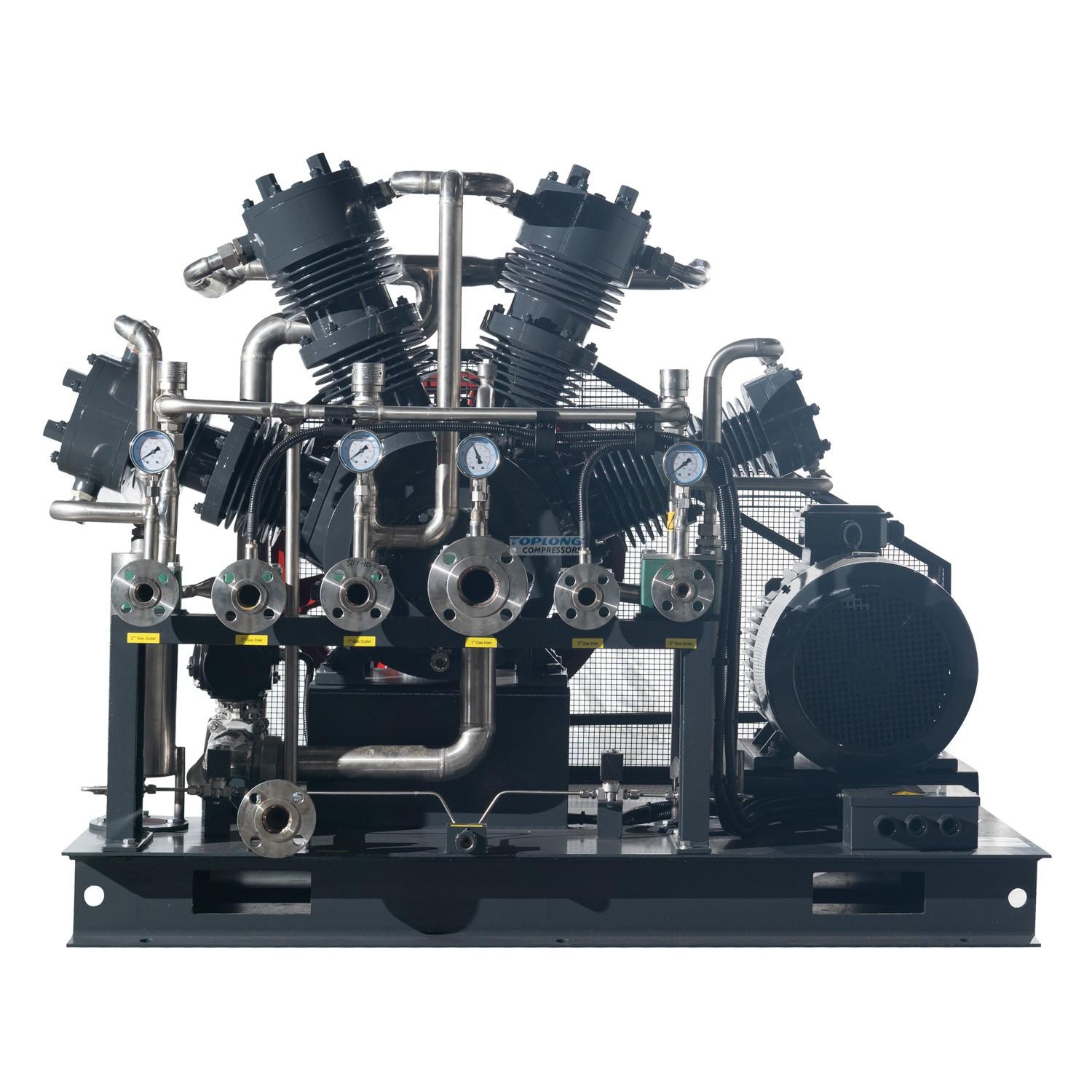

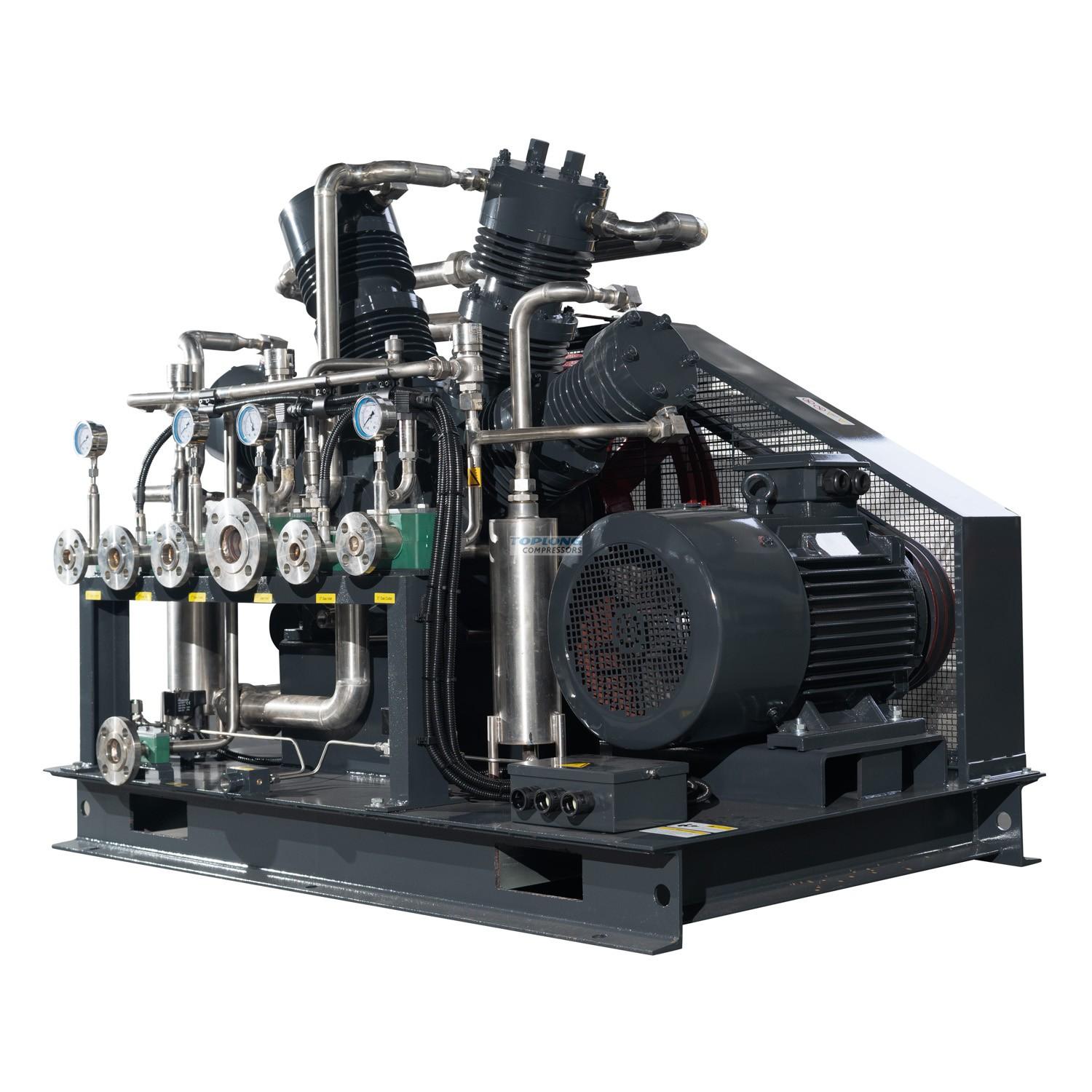

This is SW fan type oil free co2 compressor
working medium is co2( carbon dioxide) gas
flow rate is 30-60nm3/hour
Inlet pressure can be negative pressure outlet pressure is 20 or 30bar pressure
two or three stage pressure ,and four gas cylinder
The pressure bear design of the crankcase allows for a certain amount of intake negative pressure and positive intake pressure
This compressor is very popular in co2 gas recovery scope and supercritical fluid extraction scope
|
Project and parameters |
|||
|
Medium |
CO2 gas |
Quantity |
1 |
|
Intake pressure MPa(G) |
(-0.03~+0.09) |
Inlet temperature ºC |
0~40 |
|
Discharge pressure Mpa(G) |
2.2 |
Exhaust temperature ºC |
≤50 |
|
Flow rate Nm3/h |
54(@inlet atmosphere pressure) |
Piston stroke mm |
90 |
|
Model |
CW-54/0.01-22 |
Compressed series |
3 |
|
Structural type |
SW FAN sleigh mounted |
Number of cylinders |
4 |
|
Speed of crankshaft r/min |
570 |
Voltage V |
400 |
|
Cooling method |
air cooling |
Cooling water flow t/h |
- |
|
Shaft power kw |
≤15.0 |
Motor speed r/min |
1460 |
|
Main motor |
18.5kw 400V 50Hz |
||
|
Size mm |
1700×1050×1450 |
Unit weight T |
0.88 |
|
Interface size mm |
Inter DN50/Outer DN15 |
||
|
Driven mode |
belt drive |
||
|
Material of main components
|
Gas valve, pipes, valves |
stainless steel |
|
|
|
Case, crankshaft |
cast iron |
|
|
|
Piston ring, guide ring |
filled polytetrafluoroethylene |
|
|
Scope of supply |
Main engine, motor, cooler, skid-mounted chassis, start cabinet, air intake filter, safety valve, import and export matching flange, random documents, etc. |
||
|
Other matters needing attention |
Bar data for user reference Mechanical seal at shaft end |
||
|
Deliver time |
Contract signed, 40 days after the advance payment received |
||
