Descrição

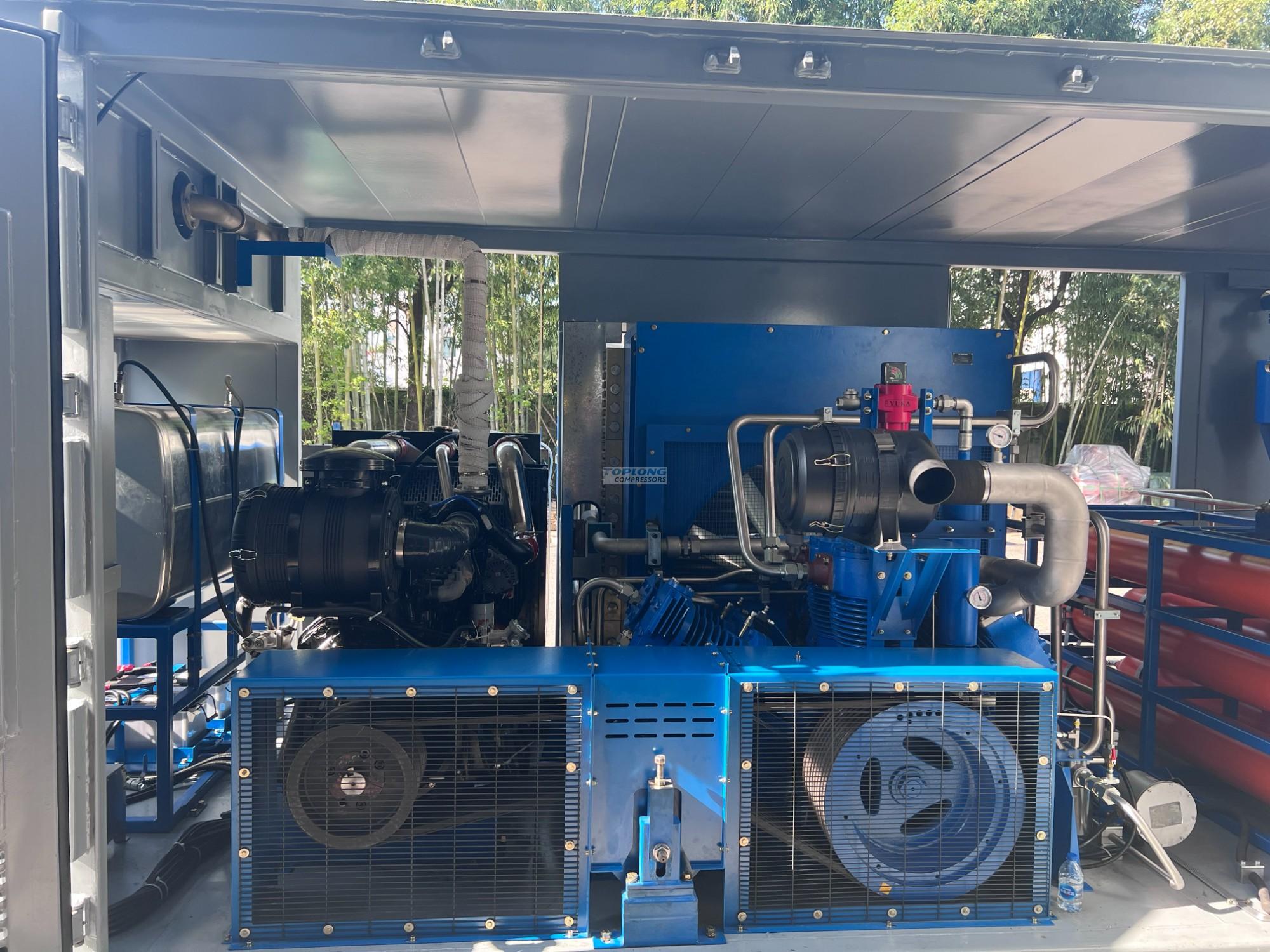

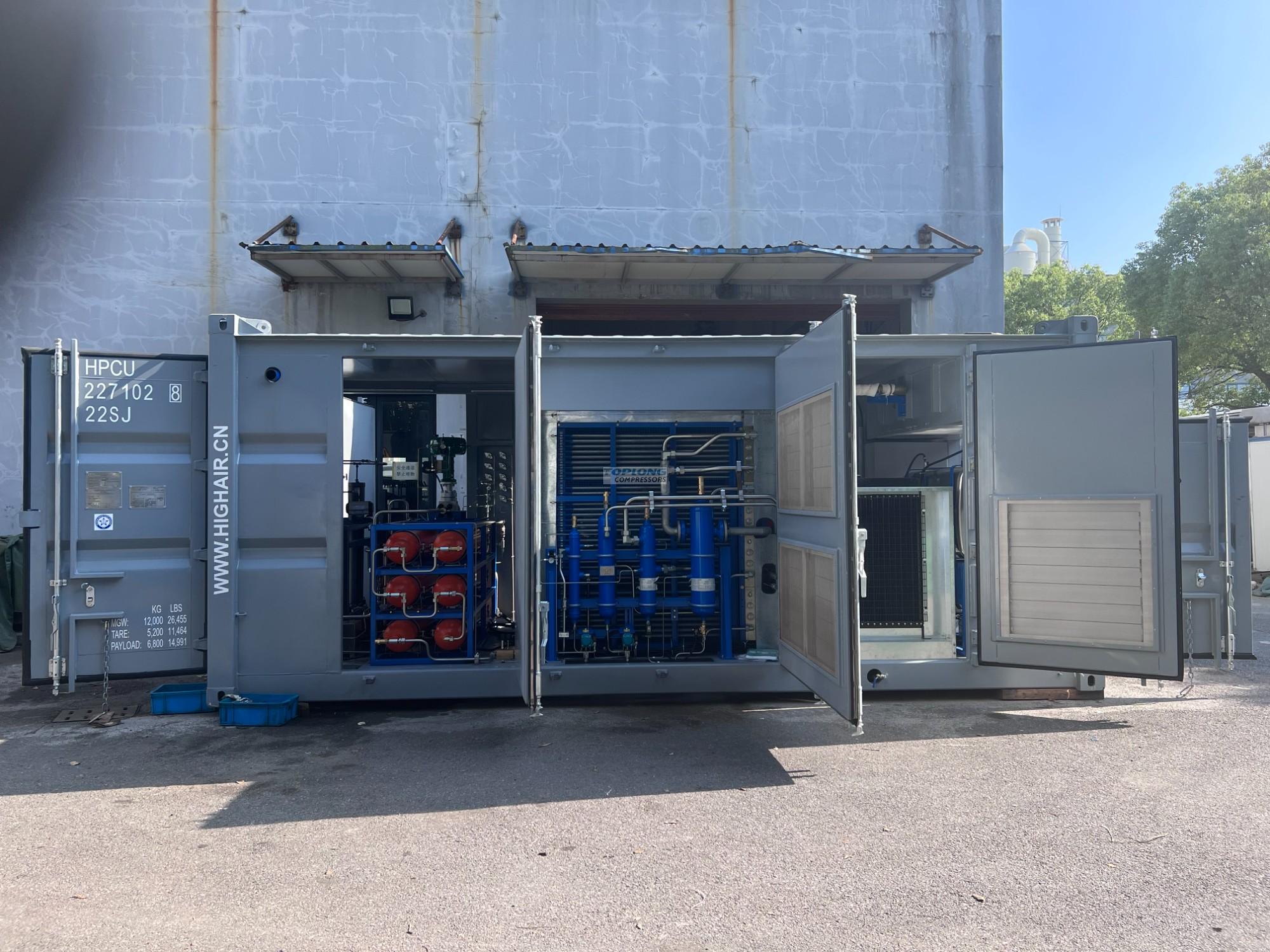

According to the demand, Toplong solution is to use a diesel drive HG7-150DY air compressor, At the inlet pressure pressure The exhaust flow rate is 7.2 Nm³ / min The exhaust pressure of 15.3MPa is adjustable Overall form of skid installation, convenient transportation. The compressor adopts the diesel engine + belt drive, The compressor adopts the air-cooled cooling mode.
Complete machine parameters of the compressor
|
Model |
HG7-150DY |
|
Drive way |
Diesel driven |
|
Compressor weight |
About 10T |
|
Compressor size |
About 5800X2350X2435mm |
|
Compressed medium |
Air |
|
Inter pressure |
Atmosphere |
|
Inter temperature |
≤60℃ |
|
Working pressure |
15 . 3 MPa G |
|
Discharge flow |
7.2Nm³/min |
|
Cooling method |
Air cooling |
|
Final exhaust temperature (after rear cooler) |
Ambient temperature +20°C |
|
Compressed series |
4 stages |
|
Number of cylinders |
6 |
|
Compressor speed |
980 rpm |
|
Shaft power |
About 120KW |
|
Diesel engine power |
194kW |
|
Diesel fuel tank volume |
500L |
|
Technical parameters of the diesel engine |
|
|
Brand |
Commins |
|
Diesel engine model |
QSL6.7-C260-30 |
|
Diesel engine brand |
Reciprocating diesel engine |
|
Diesel engine power |
194KW@1800rpm |
|
Output volume |
2200rpm |
|
Effluent standard |
National standard II |
|
Oil box |
500L |
|
Quantity |
1 |
