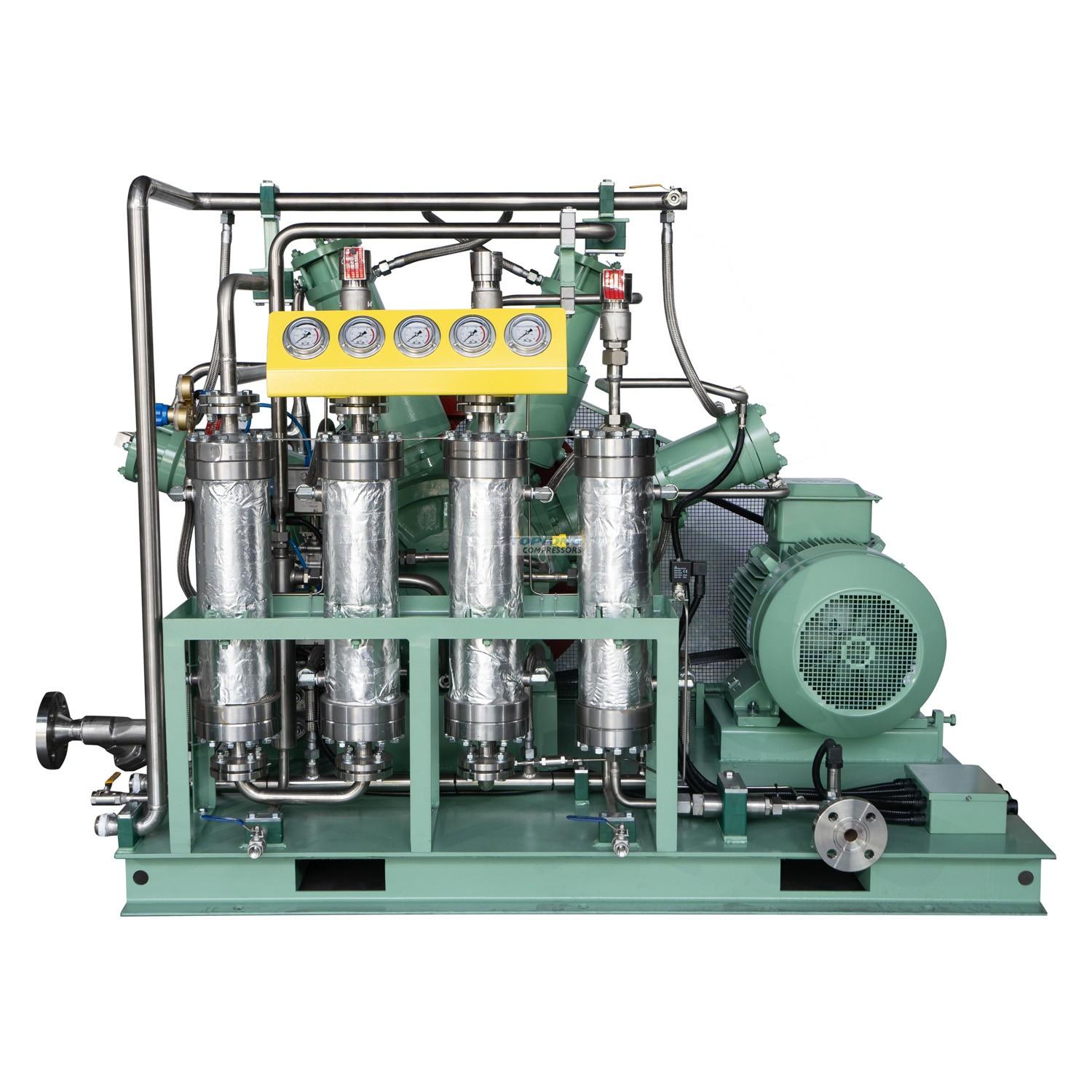

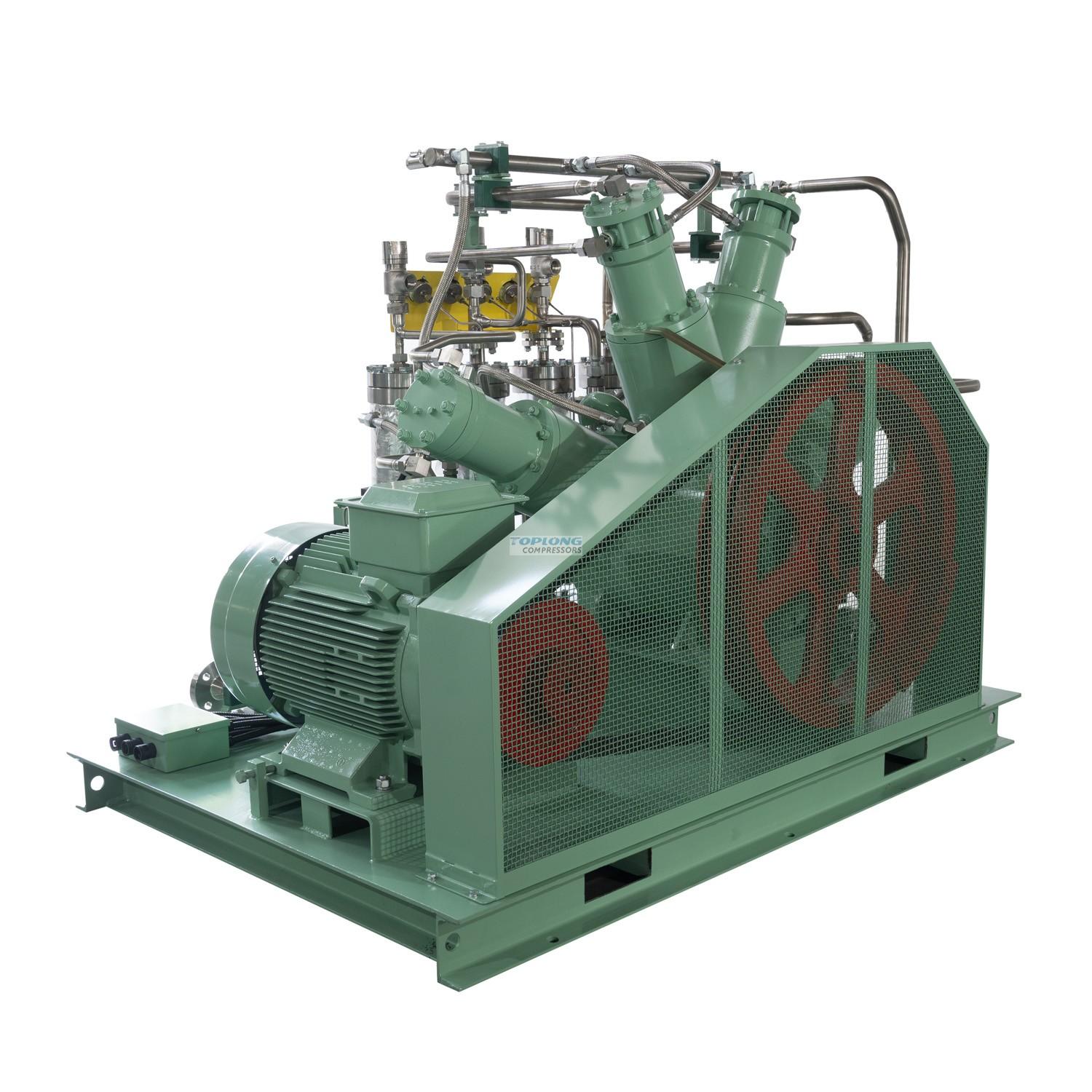

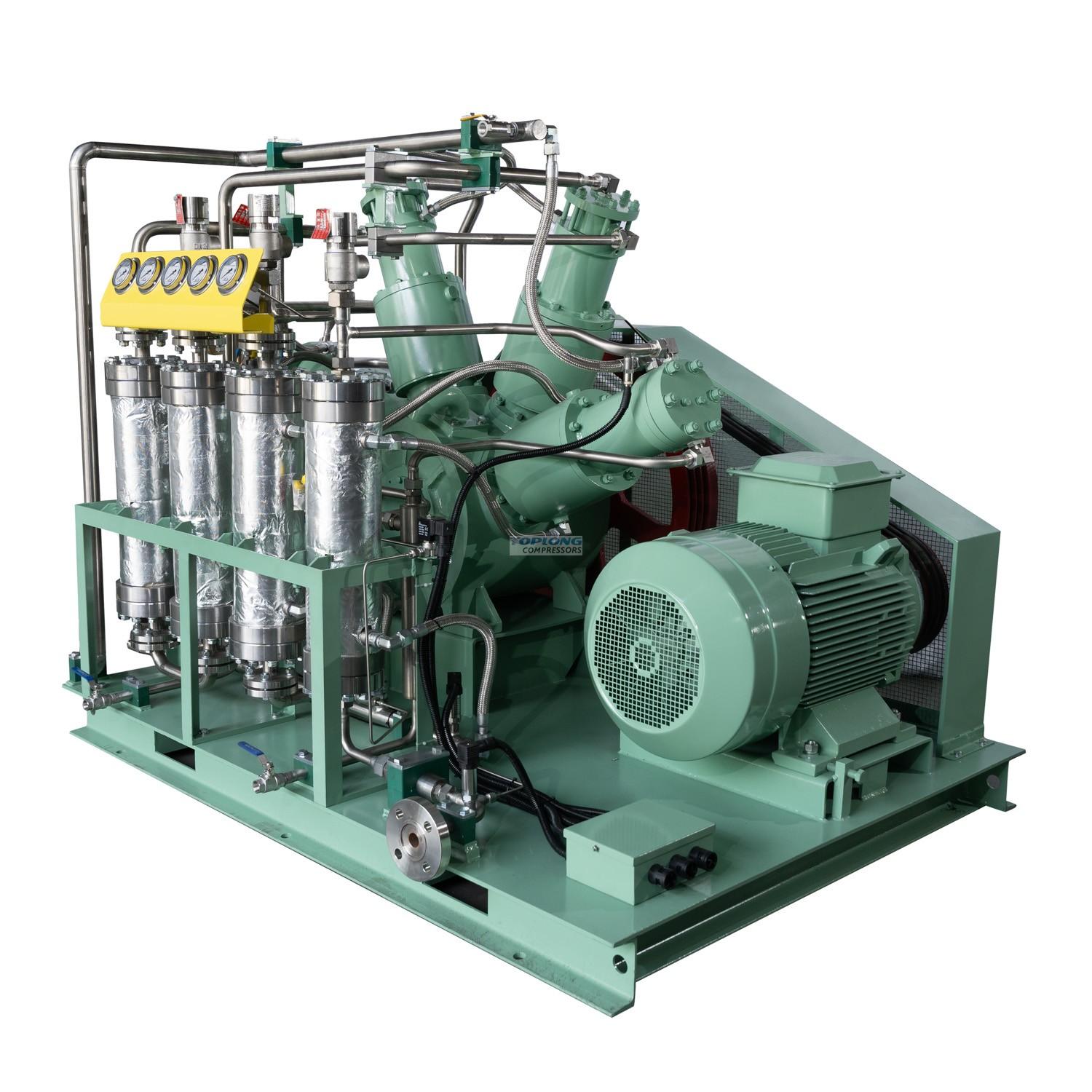

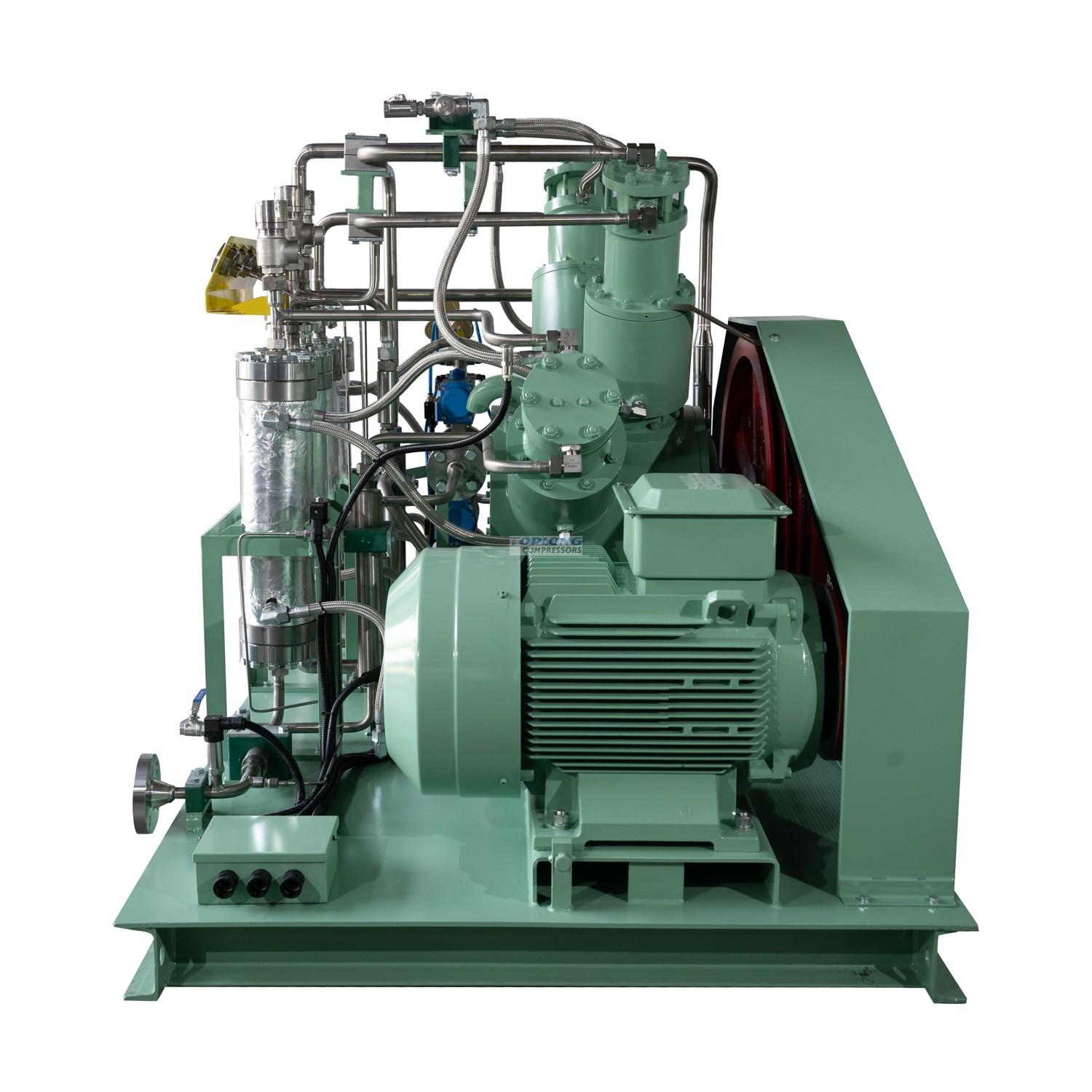

200nm3 Oil Free CO2 Compressor CW-200/6-80

CO2 Compressor

Oil Free

water-cooling

Piston

Product Description

Carbon oxide co2 compressor refers to the compressor used to pressurize and transport carbon dioxide gas. Mainly used for,

1. Recovery and storage of dry ice volatile gas in CO2 plant and recycling of waste CO2 in the plant,

2. Use the liquid characteristics of CO2 for industrial and pharmaceutical extraction process

3. Large carbon dioxide compressor is mainly used in urea synthesis unit

Project and parameters
Medium	CO2 gas	Quantity		1
Inter pressure MPa(G)	6.0~0.6	Inlet temperature ºC		0~35
Discharge pressure Mpa(G)	8.0	Discharge temperature (After cooling) ºC		≤55
Volume flow Nm3/h	200 (Inter pressure=0.6MPag)	Piston stroke mm		110
Model	CW-200/6-80	Compressed series		2
Structural type	Fan type pry type	Number of cylinders		4
Speed of crankshaft r/min	680	Voltage V		380
Cooling method	water-cooling	cooling water flow t/h		2.5
Shaft power KW	≤32	Motor speed r/min		1470
Motor	37kw 380V 50Hz
Outline dimension mmXmmXmm	1850×1300×1500	Unit weight t		1.20
Driving mode	belt drive
Material is partly in contact with the gas	Body, crankshaft	cast iron
	Gas valve, cylinder head	stainless steel
	Piston ring, guide ring	filled polytetrafluoroethylene
Scope of supply	Main engine, motor, cooler, separator, skid-mounted chassis, start cabinet, air intake filter, safety valve, random file, etc.
Other matters needing attention	Column data is for user reference Standard configuration: 1,Motor (Luv-electric or equivalent) 2,Safety valve (Zhejiang Wanneng) 3,Solenoid valve (Zhejiang Sanlixin) 4,Pressure gauge (Nanjing Zhipu or equivalent) 5,Pressure controller / pressure transmitter (Changzhou Tianli) 6,Electrical components (Chnt)
Delivery time	Contract signing, 50 working days after the advance payment to the account
Price		Offer validity	3 months
