Factory Direct Sales China Factory Price Hydrogen Fuel Station

Factory Direct Sales China Factory Price Hydrogen Fuel Station

Oil-free

Oxygen ,nitrogen,helium,argon,hydrogen etc

Engine, Motor, Pump, Bearing

220/380/440/50/60HZ/3phase

Descrição

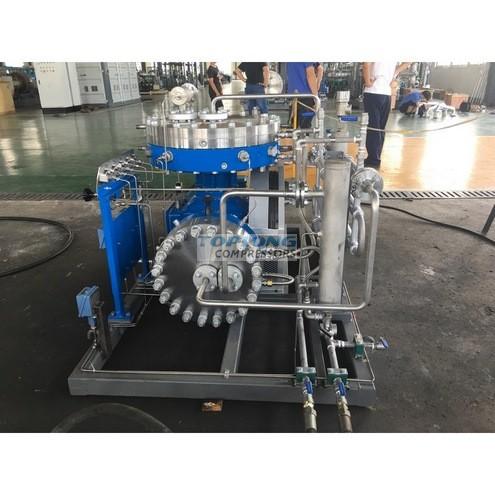

The diaphragm compressor is a special type of volumetric compressor with large compression ratio, good sealing performance, and the compressed gas is not polluted by lubricating oil and other solid impurities. Therefore, it is suitable for compressing high purity, rare and precious, flammable, explosive, toxic and harmful, corrosive and high pressure gases.

Model	Flow Rate Nm3/hr	Suction Pressure .Mpa	Discharge pressure.Mpa	Water Consumption L/hr	Speed .rpm	Motor.KW	Dimension LWH mm	Weight kgs
GD0-3/200	3	atmosphere	20	300	750	2.2	600×500×400	200
GL1-5/200	5	atmosphere	20	300	450	3	1350×600×950	550
GL1-10/13	10	atmosphere	1.3	300	450	3	1350×600×950	550
GL1-10/13-200	10	1.3	20	300	450	3	1350×600×950	550
GL1-5/1-160	5	0.1	16	400	450	3	1350×600×950	550
GL1-10/4-160	10	0.4	16	400	400	4	1350×600×950	520
GL1-8/2.5-160	8	0.25	16	400	400	3	1350×600×950	520
GL1-10/7-150	10	0.7	15	300	400	4	1350×600×950	520
GL1-5/6-200	5	0.6	20	400	400	3	1350×600×950	520
GL1-10/6-160	10	0.6	16	400	400	4	1350×600×950	500
GL1-5/13-400	5	1.3	40	300	400	3	1350×600×950	520
GL1-15/10-150	15	1	15	400	400	4	1350×600×950	520
GL1-10/7-320	10	0.7	32	400	450	4	1350×600×950	520
GL1-5/4-350	5	0.4	35	300	400	3	1350×600×950	450
GZ1-5/13	5	atmosphere	1.3	200	400	1.5	1100×600×950	420
GZ1-5/13-200	5	1.3	20	200	450	1.5	1100×600×950	400
GZ1-5/30-400	5	3	40	300	400	3	1100×600×950	420
GZ1-70/30-35	70	3	35	200	400	4	1100×600×950	420

Model	Flow Rate Nm3/hr	Suction Pressure .Mpa	Discharge pressure.Mpa	Water Consumption L/hr	Speed .rpm	Motor.KW	Dimension LWH mm	Weight kgs
GL2-15/200	15	atmosphere	20	700	400	7.5	1700x850X1150	1100
GL2-30/13	30	atmosphere	1.3	700	400	7.5	1700X850X 1150	1200
GL2-30/13-200	30	1.3	20	700	400	7.5
