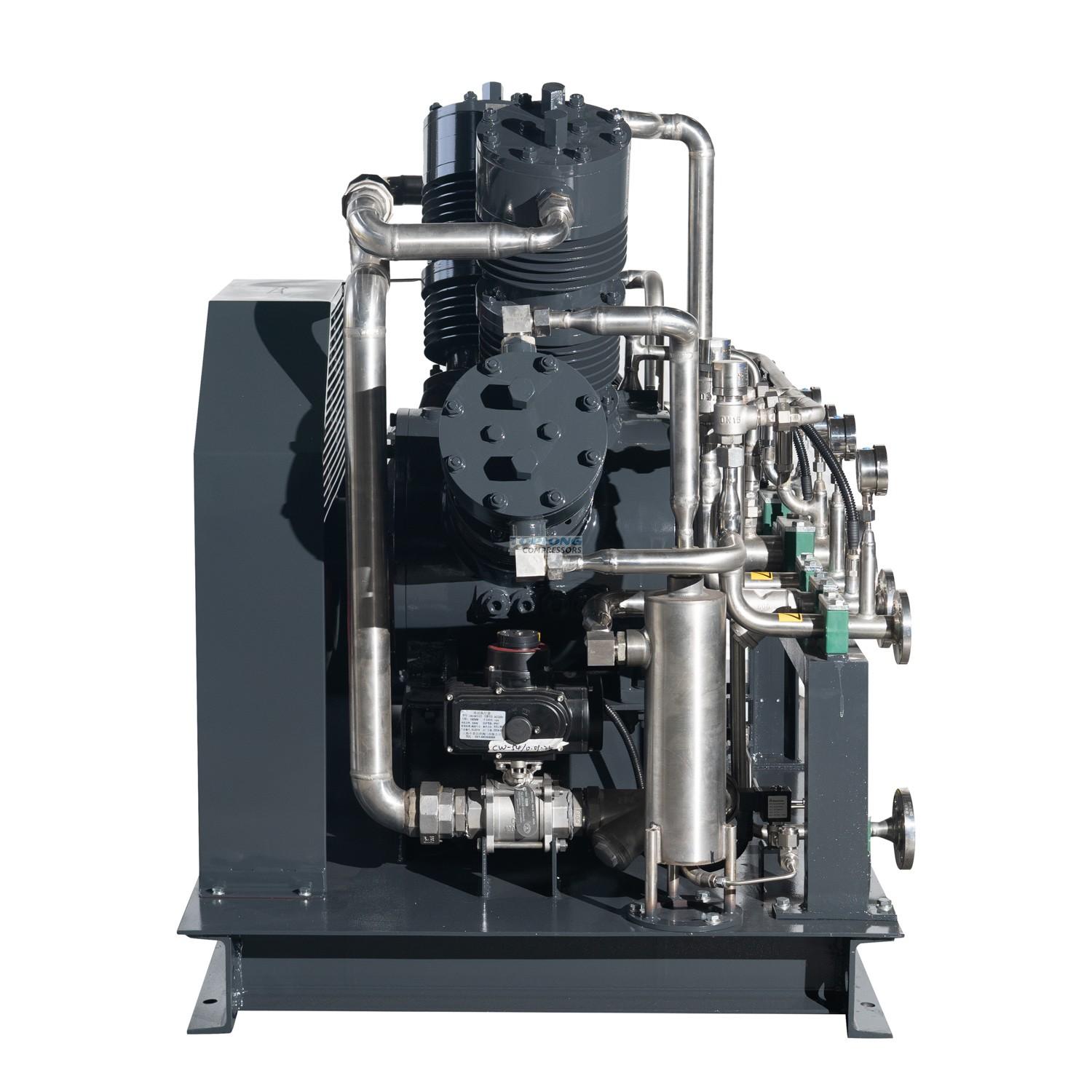

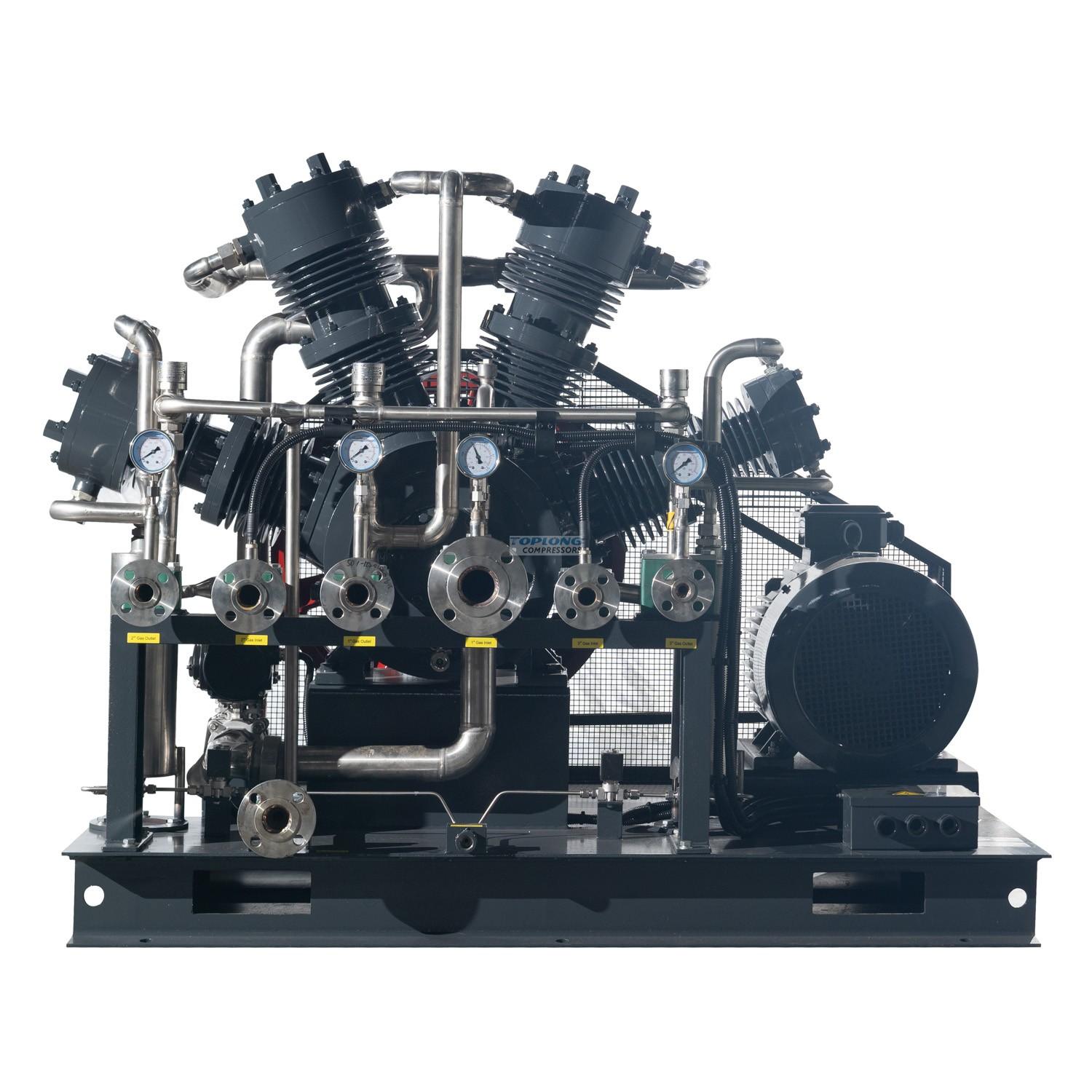

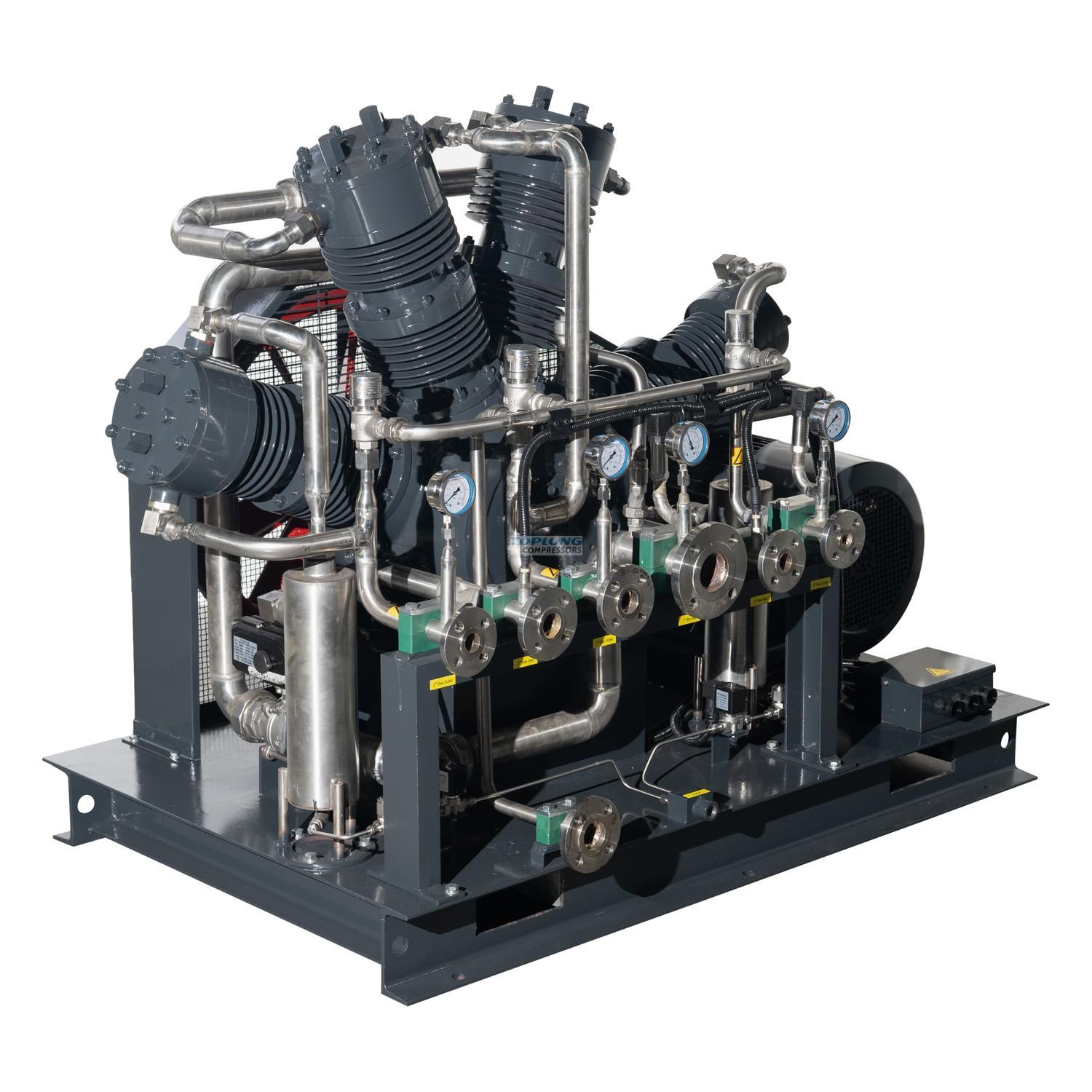

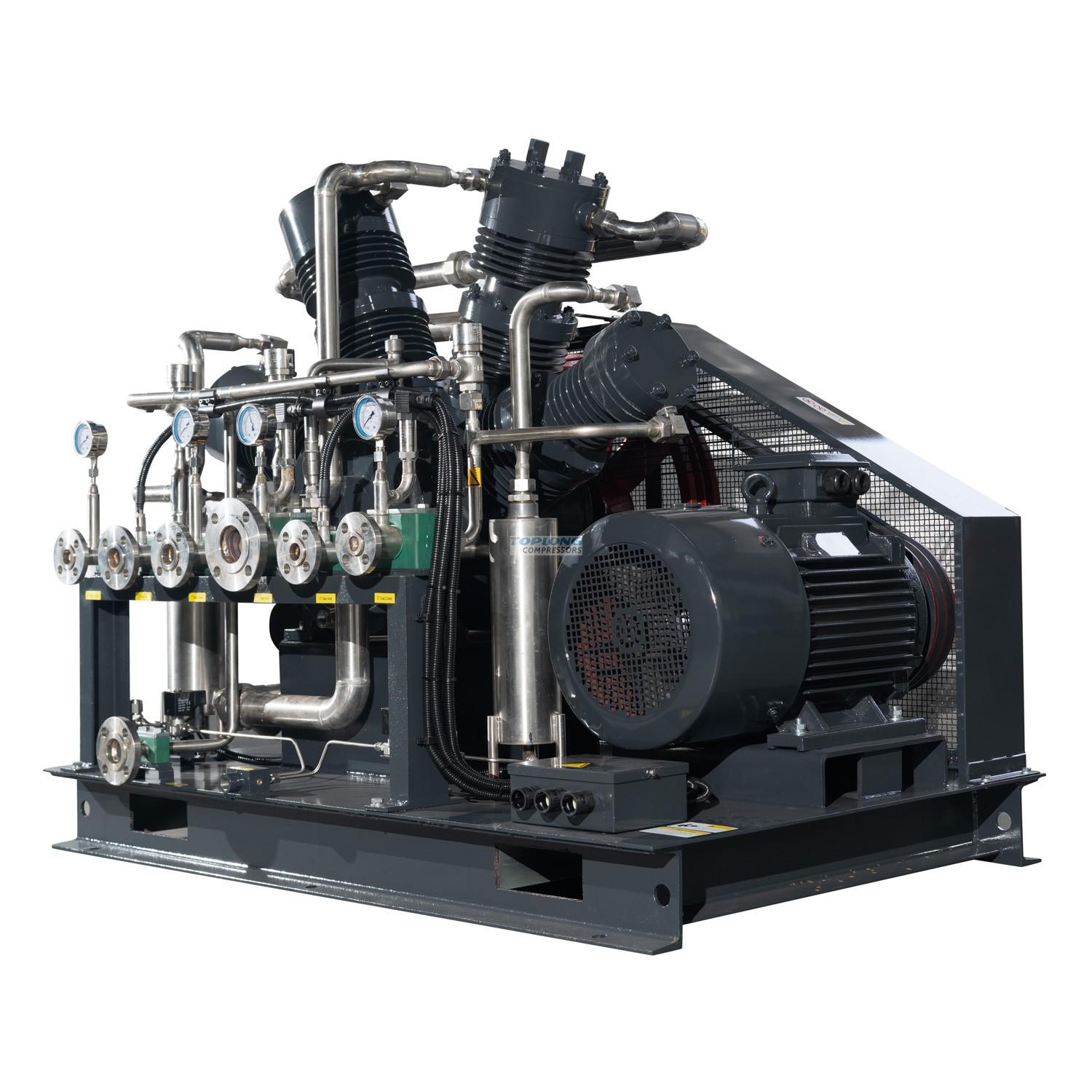

54nm3 Oil Free CO2 Compressor Cw-54/0.01-22

54nm3 Oil Free CO2 Compressor Cw-54/0.01-22

CO2 Compressor

Oil Free

water-cooling

Piston

3. Описание

Product Description

This is SW fan type oil free co2 compressor
working medium is co2( carbon dioxide) gas
flow rate is 30-60nm3/hour
Inlet pressure can be negative pressure outlet pressure is 20 or 30bar pressure
two or three stage pressure ,and four gas cylinder

The pressure bear design of the crankcase allows for a certain amount of intake negative pressure and positive intake pressure

This compressor is very popular in co2 gas recovery scope and supercritical fluid extraction scope

Project and parameters
Medium	CO2 gas	Quantity	1
Intake pressure MPa(G)	(-0.03~+0.09)	Inlet temperature ºC	0~40
Discharge pressure Mpa(G)	2.2	Exhaust temperature ºC	≤50
Flow rate Nm3/h	54(@inlet atmosphere pressure)	Piston stroke mm	90
Model	CW-54/0.01-22	Compressed series	3
Structural type	SW FAN sleigh mounted	Number of cylinders	4
Speed of crankshaft r/min	570	Voltage V	400
Cooling method	air cooling	Cooling water flow t/h	-
Shaft power kw	≤15.0	Motor speed r/min	1460
Main motor	18.5kw 400V 50Hz
Size mm	1700×1050×1450	Unit weight T	0.88
Interface size mm	Inter DN50/Outer DN15
Driven mode	belt drive
Material of main components	Gas valve, pipes, valves	stainless steel
	Case, crankshaft	cast iron
	Piston ring, guide ring	filled polytetrafluoroethylene
Scope of supply	Main engine, motor, cooler, skid-mounted chassis, start cabinet, air intake filter, safety valve, import and export matching flange, random documents, etc.
Other matters needing attention	Bar data for user reference Mechanical seal at shaft end
Deliver time	Contract signed, 40 days after the advance payment received
