Working Principle of Piston Compressors

Working Principle of Piston Compressors

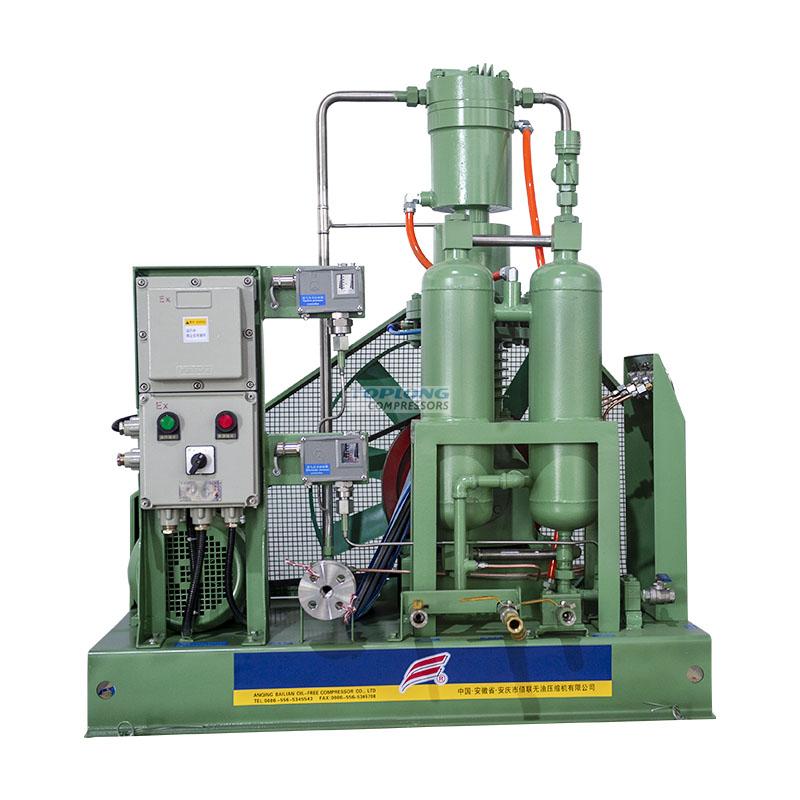

A piston compressor, also known as a reciprocating compressor, is a type of positive displacement compressor that uses a piston to compress gas. Its working principle can be broken down into the following steps:

1. Intake Stroke:
   The piston moves downward within the cylinder, creating a vacuum. This causes the intake valve to open, allowing air or gas to enter the cylinder.

2. Compression Stroke:
   The piston moves upward, reducing the volume of the cylinder. This compresses the gas, increasing its pressure. Both the intake and exhaust valves remain closed during this phase.

3. Discharge Stroke:
   When the pressure of the gas exceeds the pressure in the discharge line, the exhaust valve opens. The compressed gas is then expelled from the cylinder into the discharge line.

4. Return Stroke:
   The piston moves downward again, and the cycle repeats. This continuous reciprocating motion of the piston ensures a steady flow of compressed gas.

Key Components:

• Cylinder: The chamber where gas is compressed.

• Piston: Moves up and down within the cylinder to compress the gas.

• Intake and Exhaust Valves: Control the flow of gas into and out of the cylinder.

• Crankshaft: Converts rotational motion into the reciprocating motion of the piston.

• Connecting Rod: Links the piston to the crankshaft.

Advantages:

• High efficiency for small to medium gas volumes.

• Capable of generating high pressures.

• Simple design and easy maintenance.

Applications:

Piston compressors are widely used in industries such as refrigeration, air conditioning, natural gas processing, and manufacturing, where reliable and high-pressure gas compression is required.

In summary, the piston compressor operates through a cyclic process of intake, compression, and discharge, driven by the reciprocating motion of the piston. This makes it a versatile and efficient solution for various industrial applications.
