350bar industrial bottling hydrogen make up gas diaphragm compressor

Description

350bar hydrogen diaphragm compressor, is a reciprocating compressor that reciprocates in a cylinder to compress and transport gas.
The diaphragm compressor is a special type of volumetric compressor with large compression ratio, good sealing performance, and the compressed gas is not polluted by lubricating oil and other solid impurities. Therefore, it is suitable for compressing high purity, rare and precious, flammable, explosive, toxic and harmful, corrosive and high pressure gases.

industrial 350bar bottling hydrogen diaphragm compressor, are one of many types of compressors. It has a special name because it has a special diaphragm that separates the compressed medium from the outside. The diaphragm compressor can also be referred to simply as a membrane compressor. Due to its special structure, the oxygen reciprocating low pressure diaphragm compressor does not need lubrication, and the sealing performance is very good. The compressed medium is not in contact with any slip agent, so it can compress the gas with very high purity, generally achieving a purity of 99.999%, which is more suitable for compression. And transport all kinds of precious rare gases. In addition, for corrosive, radioactive, toxic, and explosive gases, diaphragm compressors are also particularly suitable. The diaphragm compressor has good heat dissipation and can adopt a high compression ratio, so its pressure range is wide, and the exhaust pressure can be up to 500MPa. It is used in the food industry, petroleum industry chemical industry, electronics industry, nuclear power plant, aerospace, military equipment, medicine, scientific research and other fields.

G2 industrial hydrogen diaphragm compressor|nitrogen compressor|is a non-standard compressor product, G2 diaphragm compressor is divided into single cylinder GZ2 and double cylinder GL2 and GD2 diaphragm compressor, G2 diaphragm compressor piston force 2.5TON, Customized according to different customer parameters, requirements and environment!

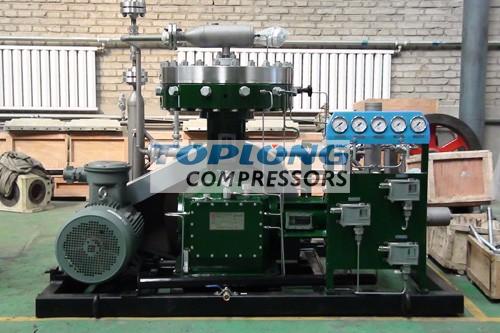

GZ2 hydrogen diaphragm compressor make up gas 350bar bottling is composed of cylinder block, cylinder head, crankshaft connecting rod, diaphragm, oil circuit, gas path, water cooling system and motor drive. The G2 and G2 diaphragm compressor series products are available from our company. Cooling method: air cooling and water cooling.
Company product features
Ø Advanced oil-free disc cylinder component structure reduces the difficulty of assembly process; reduces sealing surface; alarm when leakage medium leaks, improves the reliability of the whole machine.
Ø The oil consumption of the whole machine hydraulic oil is small, which is 1/2 of the oil used in the traditional diaphragm compressor. The economic advantage is very obvious for the oxygen compressor.
Ø New membrane cavity curve, Kezan
Nie or HOERBIGER's air valve,
Leading diaphragm surface treatment technology
Improves the work of the compressor
Efficiency, achieving high energy efficiency,
Moreover, the life of the vulnerable piece diaphragm and the air valve is improved. Diaphragm and air valve have a guaranteed average life of 5000
Hours and 8,000 hours or more.
Ø Full-featured built-in oil supply and pressure regulation system for compressor lubrication and oil
Cylinder work provides pressure stable, clean quality lubricants and oils
The road system does not leak, completely different from the traditional diaphragm compressor oil system.
It belongs to our company's patented technology.
Ø User-friendly instrument interface and middle window, simple oil and gas pipeline.

G2 type industrial hydrogen gas diaphragm compressor bottling, technical data as follows

Characteristics of G2 series diaphragm compressor
Small diaphragm compressor:Small and medium diaphragm compressors;
Structure type: Z, L, V, D type
Lubrication method: forced lubrication
Replenishment method: forced replenishment
Cooling method: water or air cooling
Repair single piece maximum weight: 100-120kg
Maximum space for maintenance: no less than 1 meter around
Maximum space for maintenance: no less than 1 meter around

Model	Flow Rate Nm3/hr	Suction Pressure .Mpa	Discharge pressure.Mpa	Water Consumption L/hr	Speed .rpm	Motor.KW	Dimension L*W*H mm	Weight kgs
GL2-15/200	15	atmosphere	20	700	400	7.5	1700x850X1150	1100
GL2-30/13	30	atmosphere	1.3	700	400	7.5	1700X850X 1150	1200
GL2-30/13-200	30	1.3	20	700	400	7.5	1700X850X1150	1000
GL2-25/1-160	25	0.1	16	1000	400	11	1700X850X 1150	1100
GL2-40/4-160	40	0.4	16	1000	400	11	1700X850X1150	1050
GL2-50/7-160	50	0.7	16	1200	400	11	1700X850X1150	1000
GL2-40/7-320	40	0.7	32	1200	420	11	1700X850X1150	900
GL2-60/12-160	60	1.2	16	1000	360	11	1700X850X1150	900
GL2-40/13-400	40	1.3	40	1000	400	11	1700X850X1150	900
GL2-30/4-350	30	0.4	35	1000	420	11	1700X850X1150	900
GL2-60/30-400	60	3	40	1200	400	11	1700X850X 1150	850
GL2-15/350	15	0	35	1500	400	18.5	1700X 1200X 1150	1500
GZ2-10/10-150	10	1	15	400	420	4	1400X850X1150	800
GZ2-15/13	15	atmosphere	1.3	400	400	4	1400X850X1150	800
GZ2-15/13-200	15	1.3	20	400	400	4	1400X850X1150	750
GZ2-40/4-30	40	0.4	3	400	400	4	1400X850X1150	800
GZ2-20/30-400	20	3	40	400	400	4	1400X850X1150	700
GZ2-100/80-200	100	8	20	600	400	7.5	1400X850X1150	700
