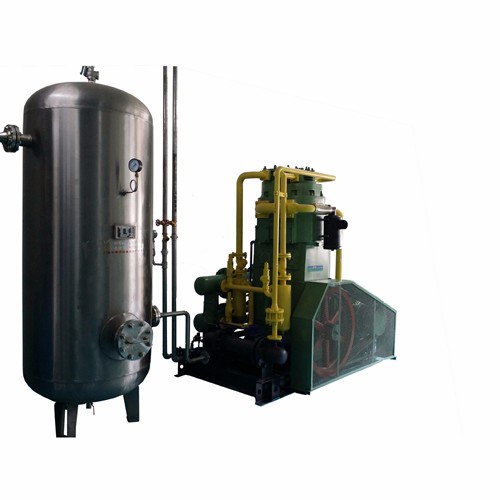

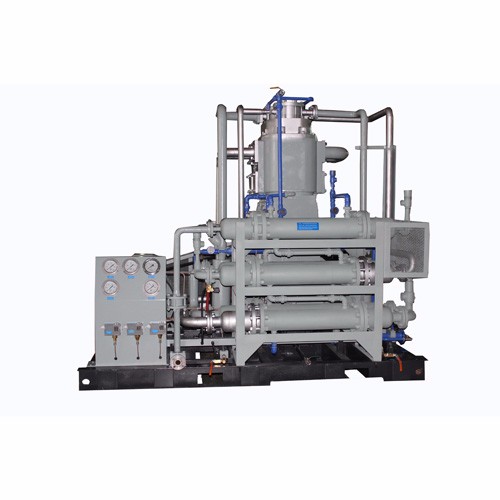

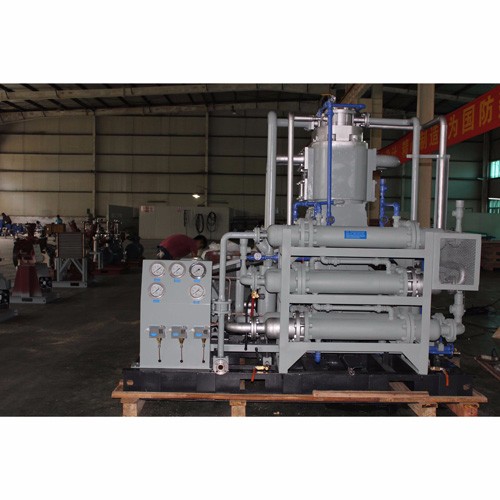

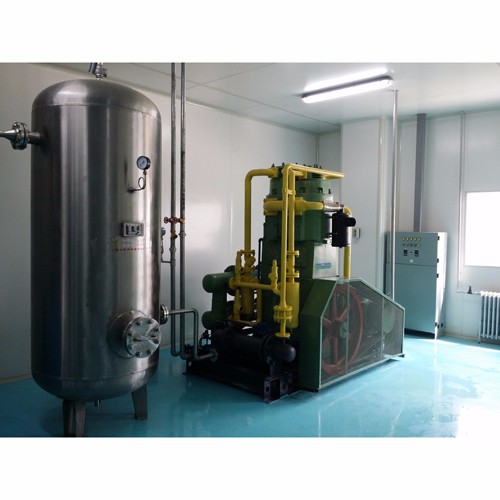

3M3 40bar Oil free Pet bottle blowing air compressor

3M3 40bar Oil free Pet bottle blowing air compressor

Product Item：ZW-3/40-1

oil free compressor

slow speed

low maintenance cost

reliable quality performance

Description

The PET air compressor is the main body in the air blower of the blow molding machine. It is a device that converts the mechanical energy of the prime mover (usually an electric motor) into gas pressure energy. It is a special blower for compressed air. Air pressure generating device. Blowing air compressors are divided into: low pressure blowing machine (15-25bar), medium pressure blowing machine (25-35bar), high pressure blowing machine (35-40bar).

There are many types of blown air compressors, which can be divided into piston compressors, screw compressors and centrifugal compressors according to the working principle. The working principle of the volumetric compressor is to compress the volume of gas, so that the density of gas molecules per unit volume is increased to increase the pressure of compressed air; the working principle of the screw compressor is twin-screw compression, so that the gas is in the cavity of the twin-screw compressor. The kinetic energy is converted into the pressure energy of the gas, thereby increasing the pressure of the compressed air. The centrifugal compressor uses the impeller to rotate at a high speed to convert the gas into gas kinetic energy under high-speed centrifugal conditions, thereby providing compressed air pressure.

S/N	ITEMS		TECHNICAL DATA
1	Working medium		AIR
2	model		ZW-3.4/40
3	Structure		oil free reciprocating,Vertical type skid mount
4	Pressure stage		3
5	Rated capacity(standard)Nm³/h		200
6	Rated inlet pressure MPa(G)		Atmoshpere
7	Rated outlet pressure MPa(G)		4.0
8	Inlet temperature℃		≤35
9	Outlet temperature ℃		≤130
10	Transmit gas temperature℃		≤55
11	Shaft speed r/min		600 ※
12	Cooling way		Air cooling
13	Lubricate way	Shaft and connect rod	Lubricate oil
		Cylinder	Oil free lubricate
14	Motor power Kw		45 KW 380V 50HZ 3phase※
15	Transmit way		Belt driven
16	Installation way		Simple basement
17	Automatic control parts		Overload ,stop automatic
18	External dimension L×W×H mm		220018502150 ※
19	Inlet and outlet mm		DN25
20	Weight Kg		2650 ※
21	Voltage		380v/50hz/3phase
