700 bar largest hydrogen fuel cell compressor manufacturers

HomeProductsOil Free Diaphragm CompressorG4 type Diaphragm Compressor700 bar largest hydrogen fuel cell compr
700 bar largest hydrogen fuel cell compressor manufacturers700 bar largest hydrogen fuel cell compressor manufacturers700 bar largest hydrogen fuel cell compressor manufacturers700 bar largest hydrogen fuel cell compressor manufacturers

700 bar largest hydrogen fuel cell compressor manufacturers

  • Product Item:700 bar largest hydrogen fuel cell compressor manu
  • silent working and easy moving
  • 24hours heavy duty working model
  • CE and iso 9001
  • two years quality guarantee
  • Category:G4 type Diaphragm Compressor
  • industrial electric hydrogen membrane compressor manufacturers
    Inquiry Send Email

    Description

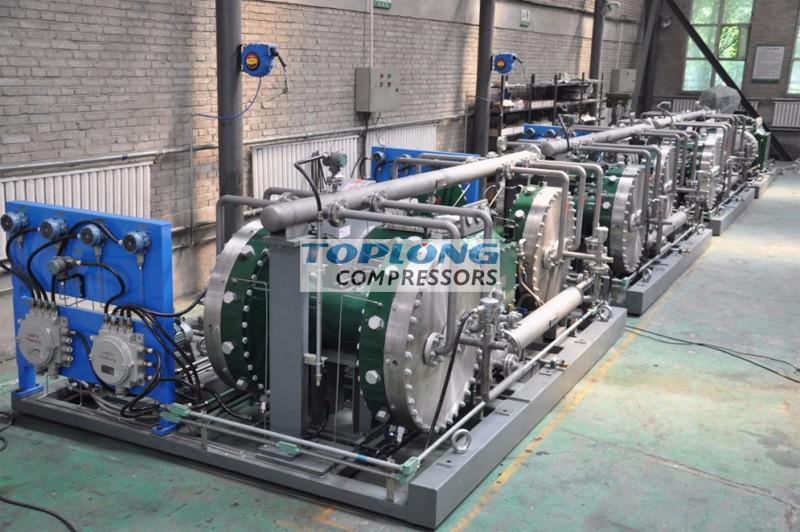

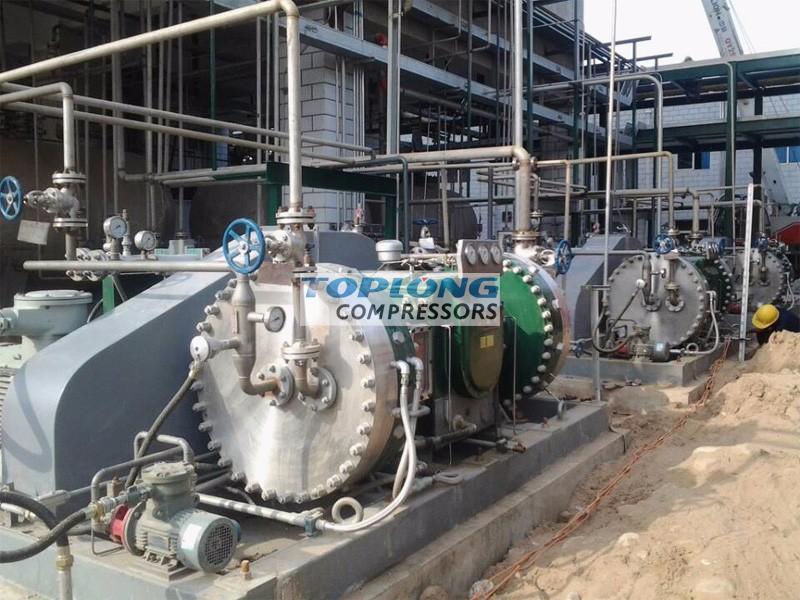

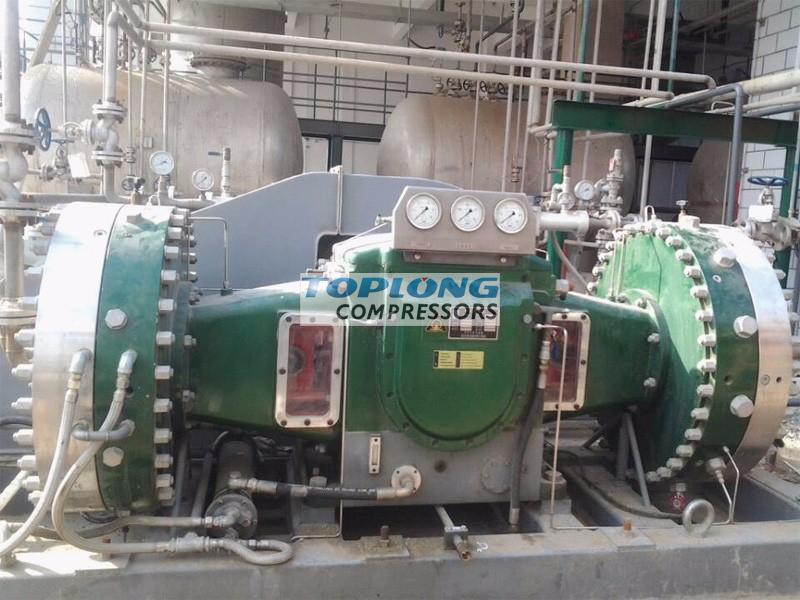

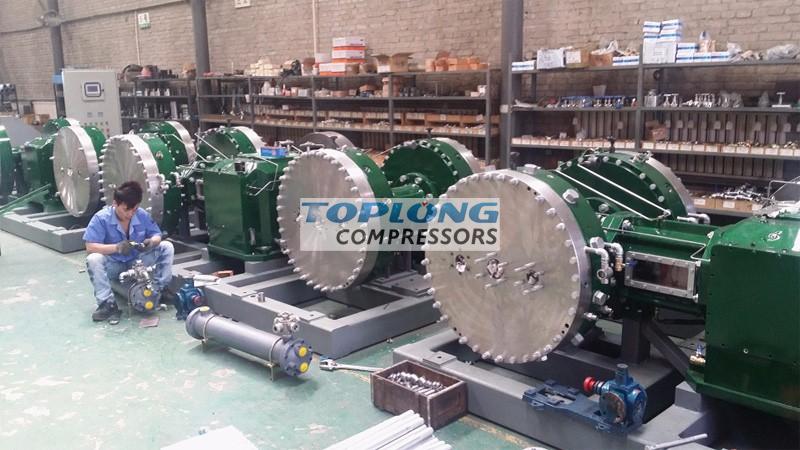

    700 bar largest hydrogen fuel cell compressor manufacturers , is a reciprocating compressor that reciprocates in a cylinder to compress and transport gas.
    hydrogen fuel cell compressor manufacturers is a special type of volumetric compressor with large compression ratio, good sealing performance, and the compressed gas is not polluted by lubricating oil and other solid impurities. Therefore, it is suitable for compressing high purity, rare and precious, flammable, explosive, toxic and harmful, corrosive and high pressure gases.

    largest hydrogen fuel cell compressor, are one of many types of compressors. It has a special name because it has a special diaphragm that separates the compressed medium from the outside. The diaphragm compressor can also be referred to simply as a membrane compressor. Due to its special structure, the oxygen reciprocating low pressure diaphragm compressor does not need lubrication, and the sealing performance is very good. The compressed medium is not in contact with any slip agent, so it can compress the gas with very high purity, generally achieving a purity of 99.999%, which is more suitable for compression. And transport all kinds of precious rare gases. In addition, for corrosive, radioactive, toxic, and explosive gases, diaphragm compressors are also particularly suitable. The diaphragm compressor has good heat dissipation and can adopt a high compression ratio, so its pressure range is wide, and the exhaust pressure can be up to 500MPa. It is used in the food industry, petroleum industry chemical industry, electronics industry, nuclear power plant, aerospace, military equipment, medicine, scientific research and other fields.

    fuel cell 700bar hydrogen compressor manufacturers

    700 BAR OIL FREE Diaphragm compressor

    Compressor main technical data

    Model

    Z type ,single cylinder ,water cooling ,1 function

    Compressor medium

    Dry hydrogen gas

    Model

    GZ2-5/150-700

    Pressure stage

    1 stage

    Condition

    Rated condition

    最大工况

    设计值

    Rated flow rate Nm3/h

    5(@suction 150bar)





    Suction MPa(G)

    15.0





    Discharge MPa(G)

    70.0





    Inlet temperature℃

    0~40





    Discharge temp℃

    <45(after cooling)





    Water consumptm3/h

    1.0

    Piston stroke mm

    100

    Crank shaft r/min

    300

    Speed m/s

    1.2(Max)

    Shaft power kW

    ≤2.6

    Motor power kW

    4

    Lubricate way

    Pressure lubricate

    Lubricate num

    LHM32

    Noise dB(A)

    ≤75

    Vibration mm/s

    12.5

    dimension(LxWxH)mm

    1400X850X1150

    MAX PART WEIGHT kg

    200

    Compressor G weight:kg

    800

    Maintenance room

    At least 1.5m far from wall



    Inquiry Us






    Related Products

    industrial hydrogen 700bar diaphragm compressor cylinder filling manufacturers

    industrial hydrogen 700bar diaphragm compressor cylinder filling manufacturers

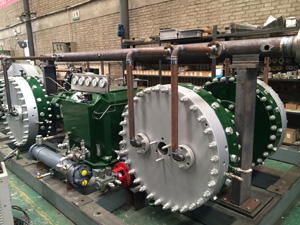

    700 bar hydrogen diaphragm compressor supplier

    700 bar hydrogen diaphragm compressor supplier

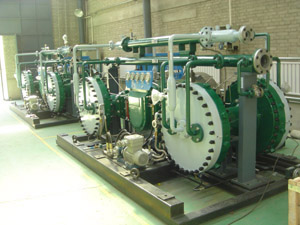

    quiet oil free sf6 recovery gas diaphragm compressor

    quiet oil free sf6 recovery gas diaphragm compressor

    industrial electric hydrogen membrane compressor manufacturers

    industrial electric hydrogen membrane compressor manufacturers

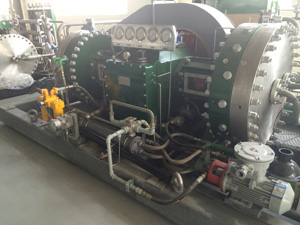

    industrial oil free diaphragm carbon dioxide compressor extraction
