Description

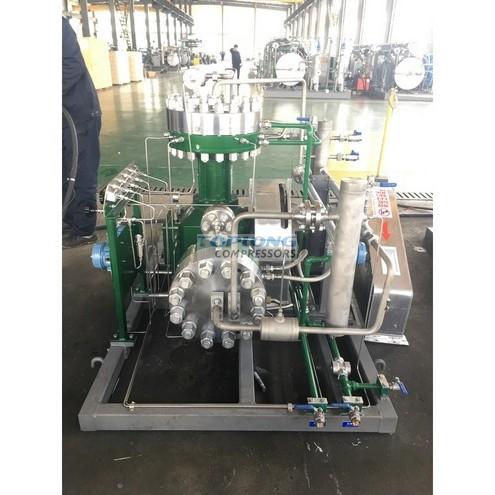

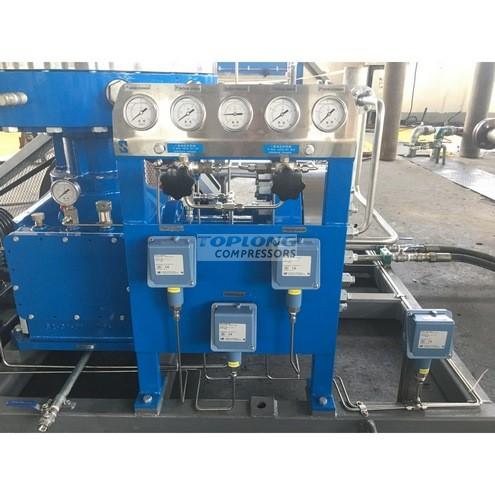

The diaphragm compressor is a special type of volumetric compressor with large compression ratio, good sealing performance, and the compressed gas is not polluted by lubricating oil and other solid impurities. Therefore, it is suitable for compressing high purity, rare and precious, flammable, explosive, toxic and harmful, corrosive and high pressure gases.
Model
Flow Rate Nm3/hr
Suction Pressure .Mpa
Discharge pressure.Mpa
Water Consumption L/hr
Speed .rpm
Motor.KW
Dimension L*W*H mm
Weight kgs
GD0-3/200
3
atmosphere
20
300
750
2.2
600×500×400
200
GL1-5/200
5
atmosphere
20
300
450
3
1350×600×950
550
GL1-10/13
10
atmosphere
1.3
300
450
3
1350×600×950
550
GL1-10/13-200
10
1.3
20
300
450
3
1350×600×950
550
GL1-5/1-160
5
0.1
16
400
450
3
1350×600×950
550
GL1-10/4-160
10
0.4
16
400
400
4
1350×600×950
520
GL1-8/2.5-160
8
0.25
16
400
400
3
1350×600×950
520
GL1-10/7-150
10
0.7
15
300
400
4
1350×600×950
520
GL1-5/6-200
5
0.6
20
400
400
3
1350×600×950
520
GL1-10/6-160
10
0.6
16
400
400
4
1350×600×950
500
GL1-5/13-400
5
1.3
40
300
400
3
1350×600×950
520
GL1-15/10-150
15
1
15
400
400
4
1350×600×950
520
GL1-10/7-320
10
0.7
32
400
450
4
1350×600×950
520
GL1-5/4-350
5
0.4
35
300
400
3
1350×600×950
450
GZ1-5/13
5
atmosphere
1.3
200
400
1.5
1100×600×950
420
GZ1-5/13-200
5
1.3
20
200
450
1.5
1100×600×950
400
GZ1-5/30-400
5
3
40
300
400
3
1100×600×950
420
GZ1-70/30-35
70
3
35
200
400
4
1100×600×950
420
Model
Flow Rate Nm3/hr
Suction Pressure .Mpa
Discharge pressure.Mpa
Water Consumption L/hr
Speed .rpm
Motor.KW
Dimension L*W*H mm
Weight kgs
GL2-15/200
15
atmosphere
20
700
400
7.5
1700x850X1150
1100
GL2-30/13
30
atmosphere
1.3
700
400
7.5
1700X850X 1150
1200
GL2-30/13-200
30
1.3
20
700
400
7.5
&
