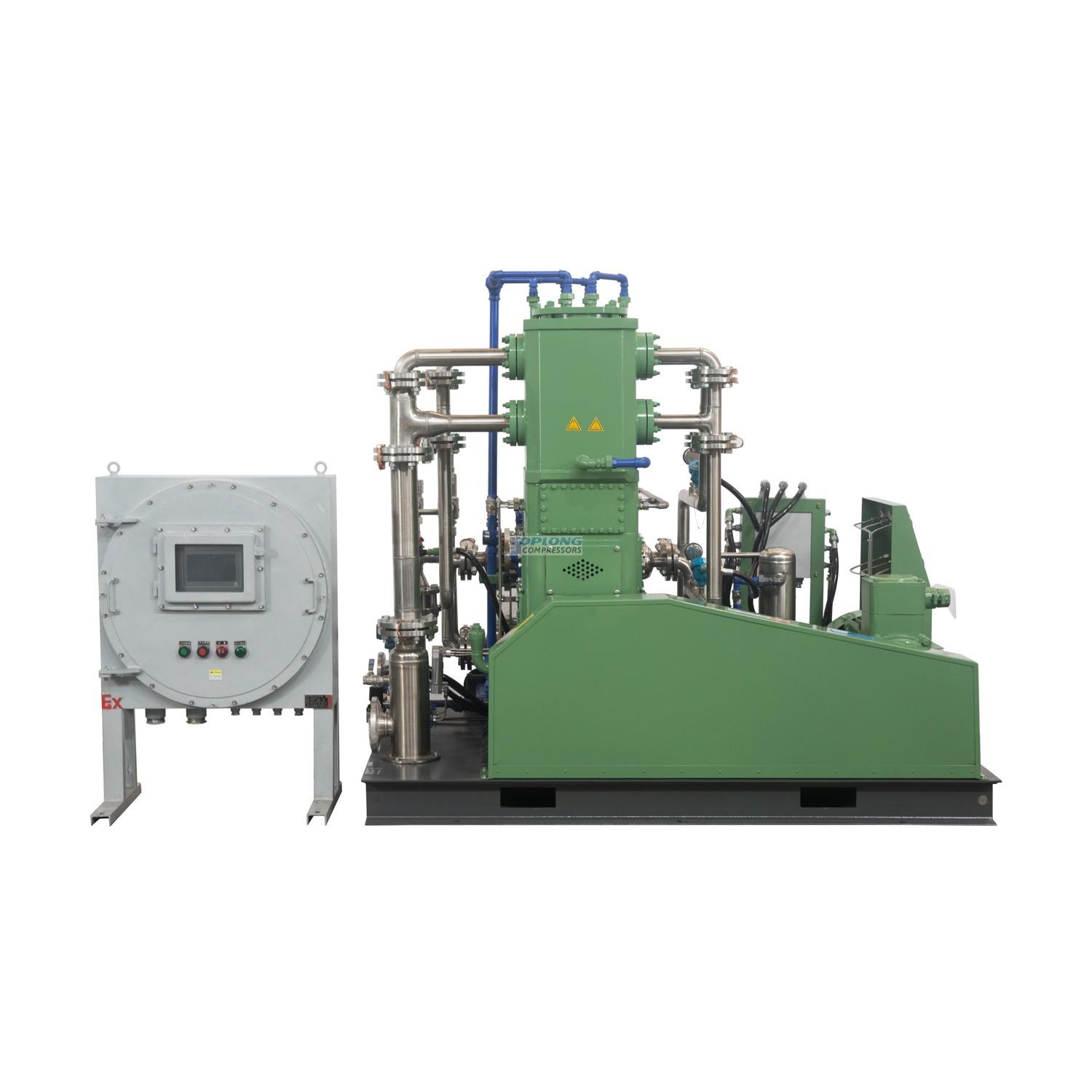

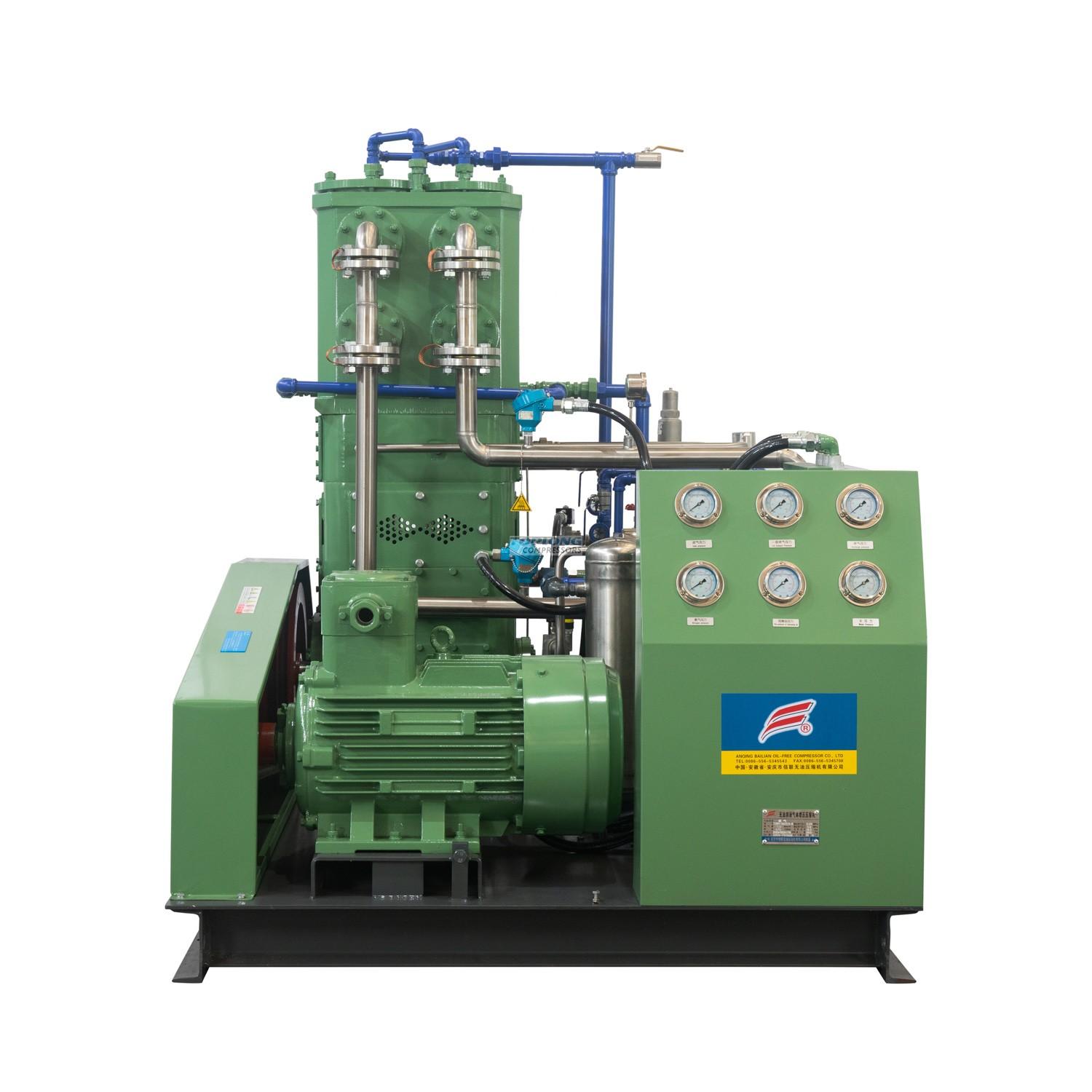

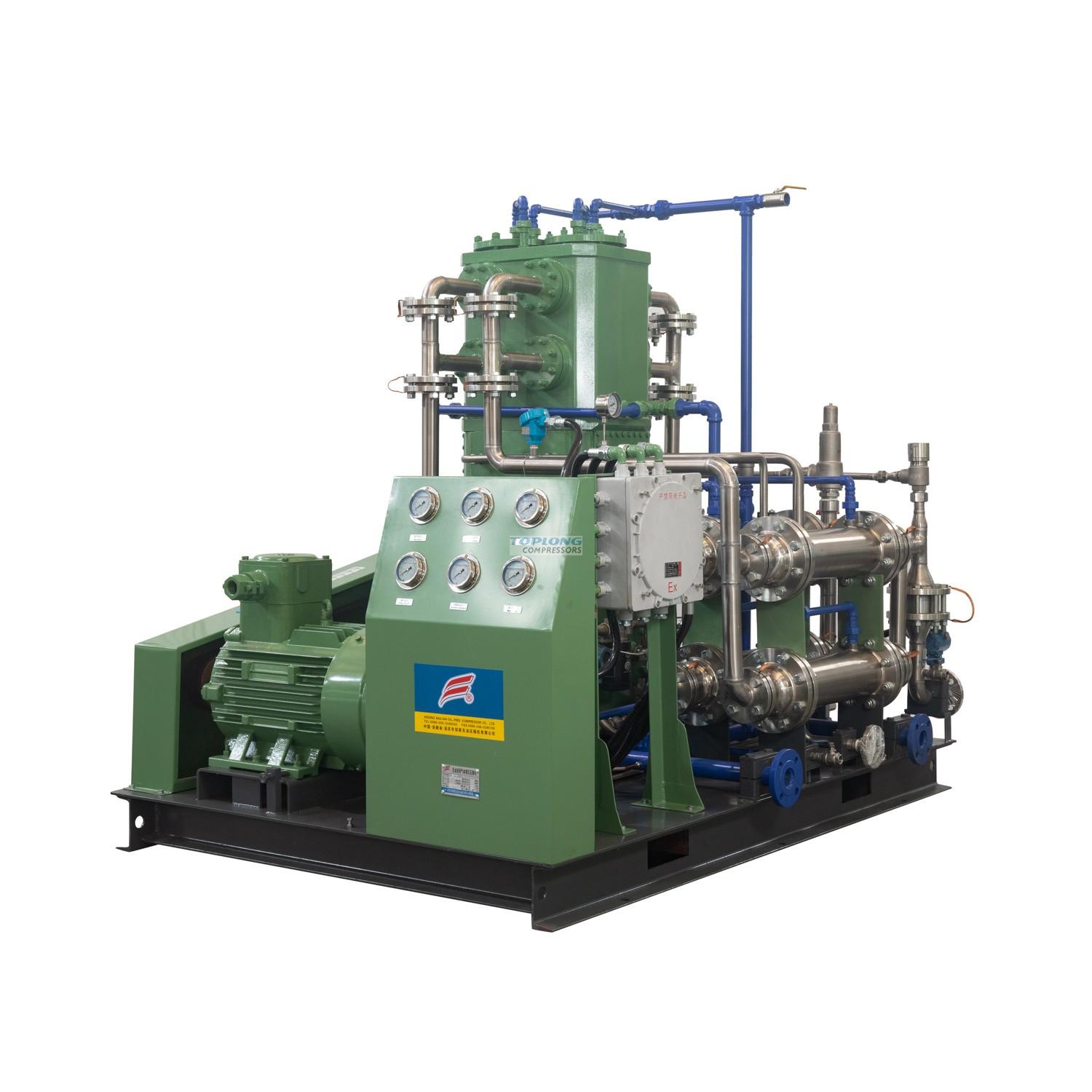

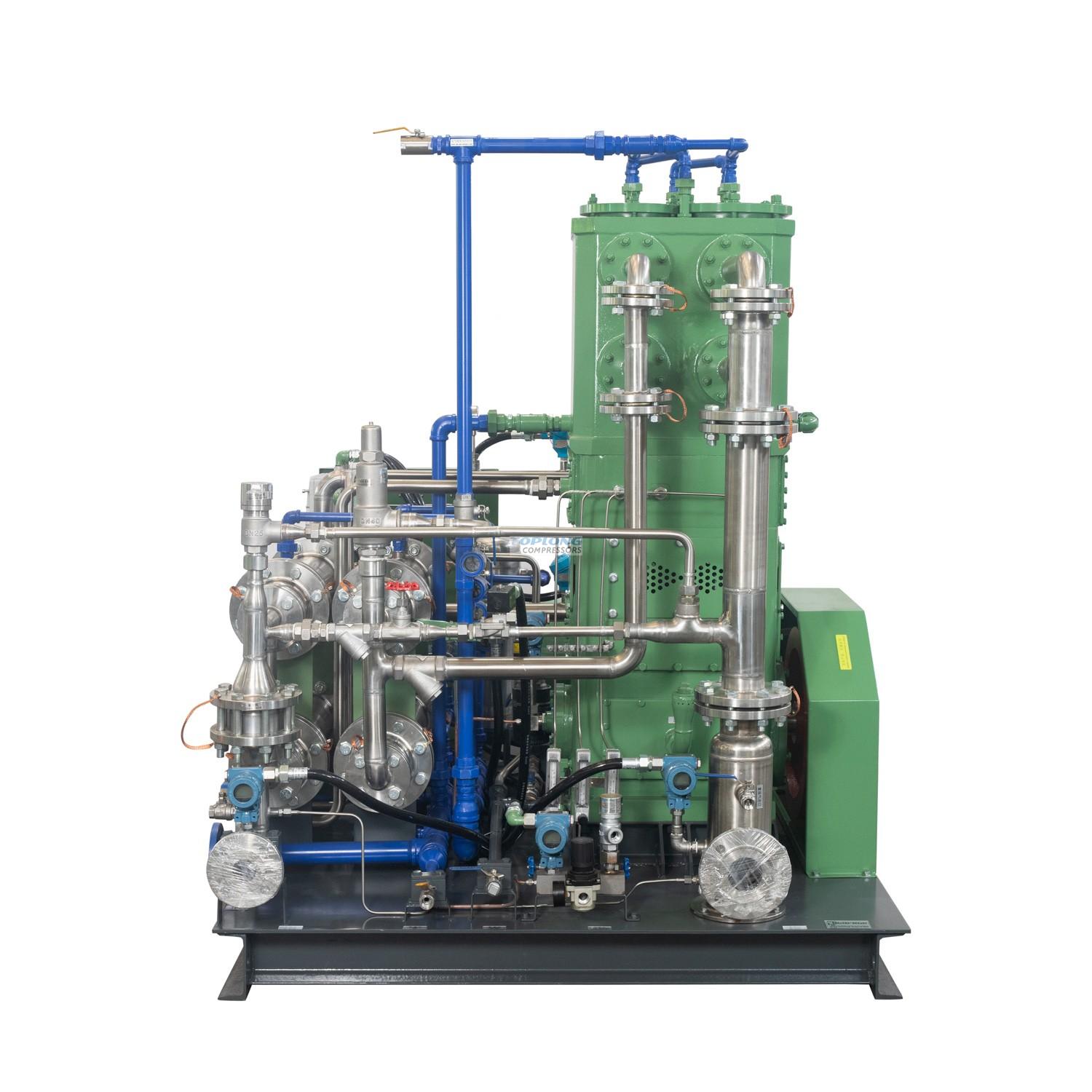

  • High Quality Factory Manufacturer Oil free Hydrogen Compressor
  • High Quality Factory Manufacturer Oil free Hydrogen Compressor
  • High Quality Factory Manufacturer Oil free Hydrogen Compressor
  • High Quality Factory Manufacturer Oil free Hydrogen Compressor
High Quality Factory Manufacturer Oil free Hydrogen Compressor High Quality Factory Manufacturer Oil free Hydrogen Compressor High Quality Factory Manufacturer Oil free Hydrogen Compressor High Quality Factory Manufacturer Oil free Hydrogen Compressor

High Quality Factory Manufacturer Oil free Hydrogen Compressor

  • AC Power
  • Hydrogen
  • Engine, Motor, Pump, Bearing
  • 220/380/440/50/60HZ/3phase
  • Hydrogen compressor  , oil free  , gas compressor
    Online Inquiry Send Email

    Description

    Working principle of the hydrogen compressor

    Hydrogen compressor structure is more complex, the more important components are cast iron cylinder, cast iron cylinder sleeve, cast iron cylinder head, cast iron crankshaft, connecting rod, crosshead (including crosshead slide), filler, piston (including piston ring), scraping oil ring, stainless steel piston connecting rod, stainless steel gas valve, etc., in addition to some auxiliary equipment, such as gas filter, buffer, lubricating oil pipeline, etc. Like other reciprocating compressors, the hydrogen compressor comprises three processes: suction, compression, and exhaust.Under the motor drive, the crankshaft drives the crosshead, the piston connecting rod and the piston back and forth in the cylinder, and the gas is finally discharged through the air valve under the piston compression.

    Technical data


    Project and parameters

    Medium

    Hydrogen

    Quantity

    1

    Inter pressure    MPa(G)

    0.05

    Inlet temperature ℃

    0~35

    Discharge pressure Mpa(G)

    2.0

    Discharge temperature (After cooling) ℃

    ≤55

    Volume flow Nm3/h

    50

    (Inter pressure=0.05MPag)

    Piston stroke mm

     75

    Model

    TZWH-50/0.5-20

    Compressed series

    3

    Structural type

    Reciprocating piston vertical skid type

    Number of cylinders

    4

    Speed of crankshaft r/min

    415 ※

    Voltage         V

    380V50Hz

    Cooling  method

    water-cooling

    cooling water flow t/h

    1.5

    Shaft power  KW

    9.2

    Motor speed  r/min

    1460 ※

    Motor

    15kw 380V 50Hz   ExdIICT4 ※

    Outline dimension mmXmmXmm

    L2000×W1400×H1950 ※

    Unit weight         t

     1.55 ※

    Interface size  mm

    Inlet DN40 / Outlet DN15 / cooling water DN20

    Driving mode

    decelerator

    Material is partly in contact with the gas

    Body, slide

    cast iron

    Piston ring, filler

    filled polytetrafluoroethylene

    Gas valve, cylinder head

    stainless steel

    Scope of supply

    Main engine, motor, oil pump, skid-mounted chassis, start cabinet, air intake filter, primary instrument and control components, safety valve, special tools, import and export matching flange, random documents, etc.

    Other matters needing attention

    1、Site electrical explosion-proof grade: ExdIICT4;

    2、Lube oil user is self-provided.

    3、The piston rod is sealed with nitrogen filling gas, and the nitrogen source shall be continuously provided on site;

    4、※ Column data is for user reference

    Delivery time

    Contract signing, 70 working days after the advance payment to the account

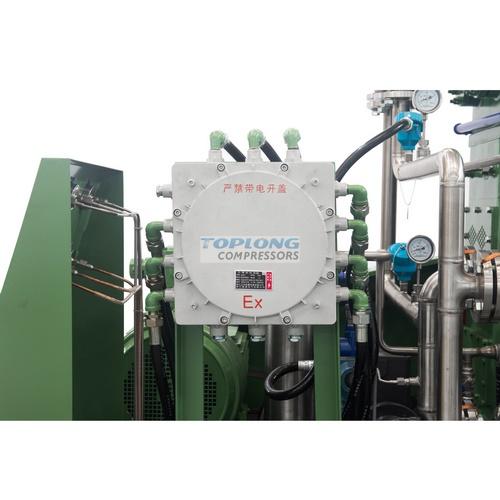

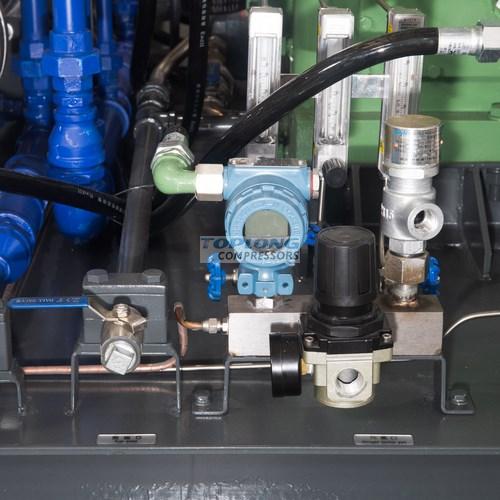

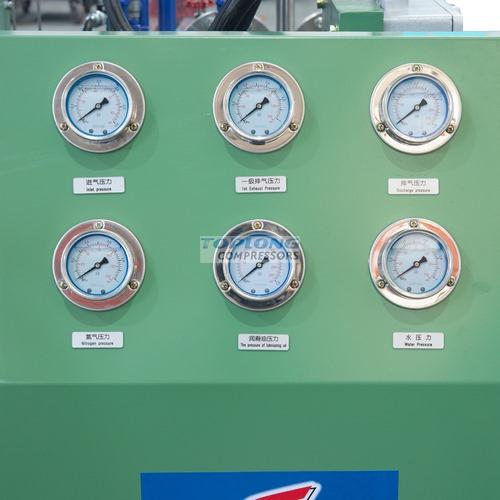

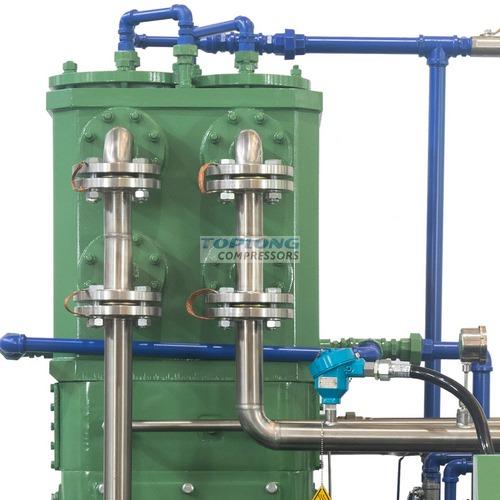

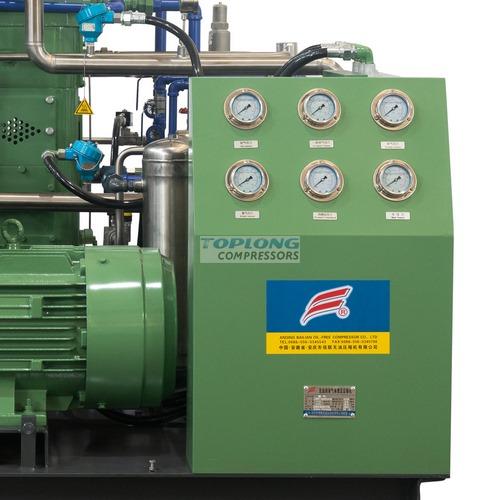

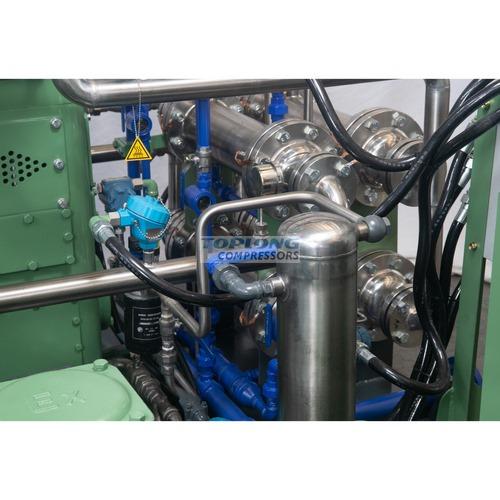

    Detailed picture
