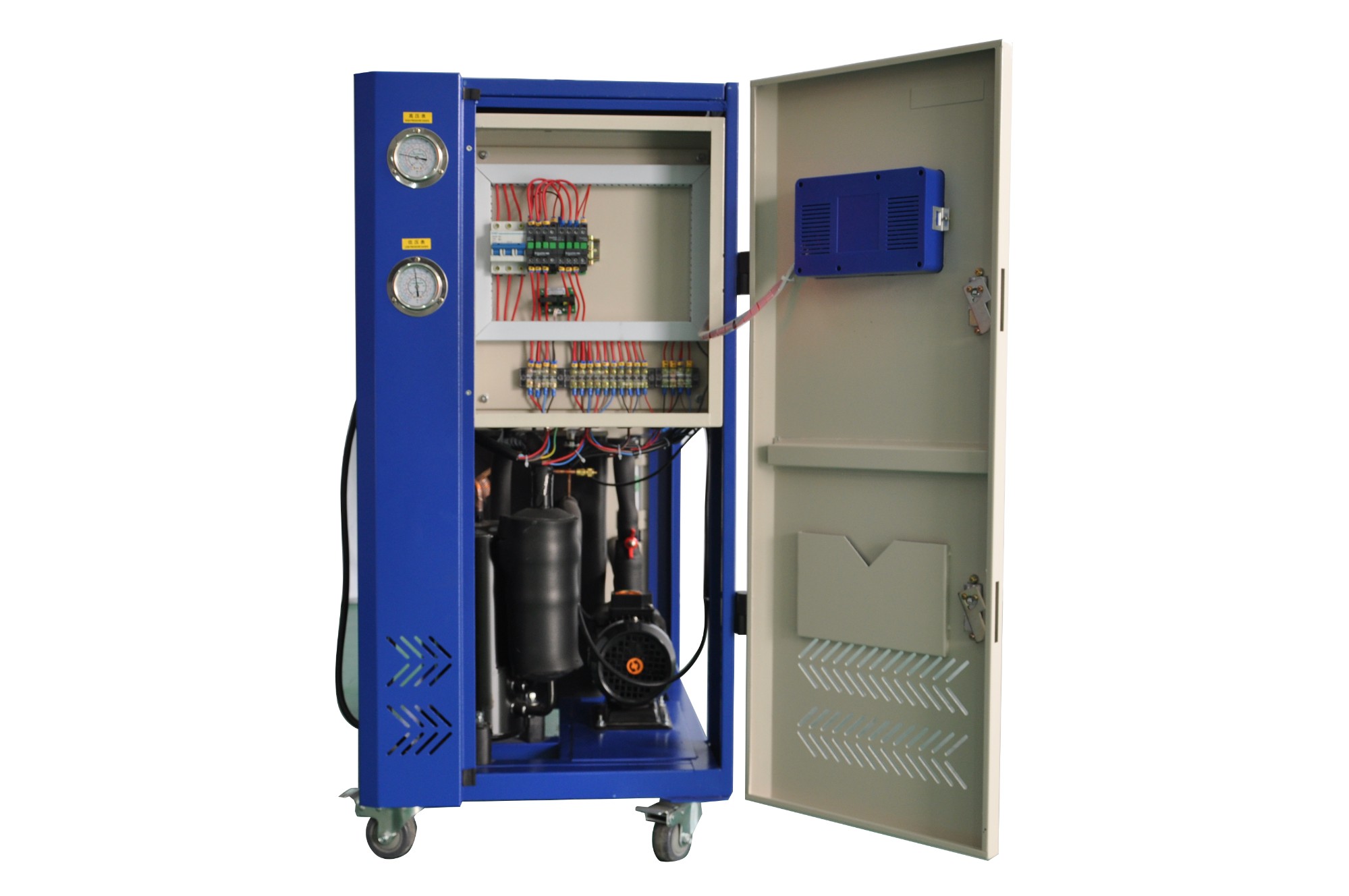

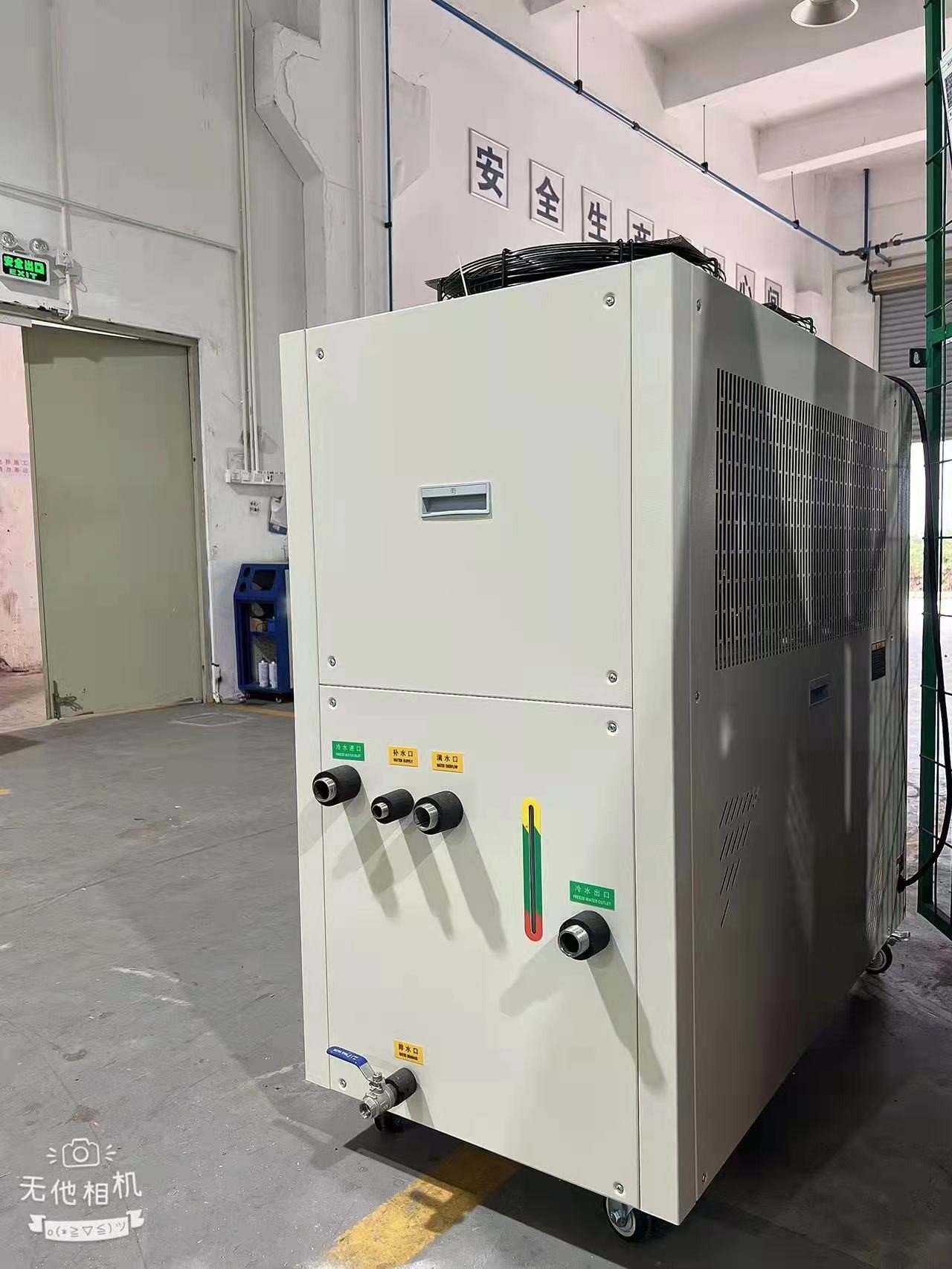

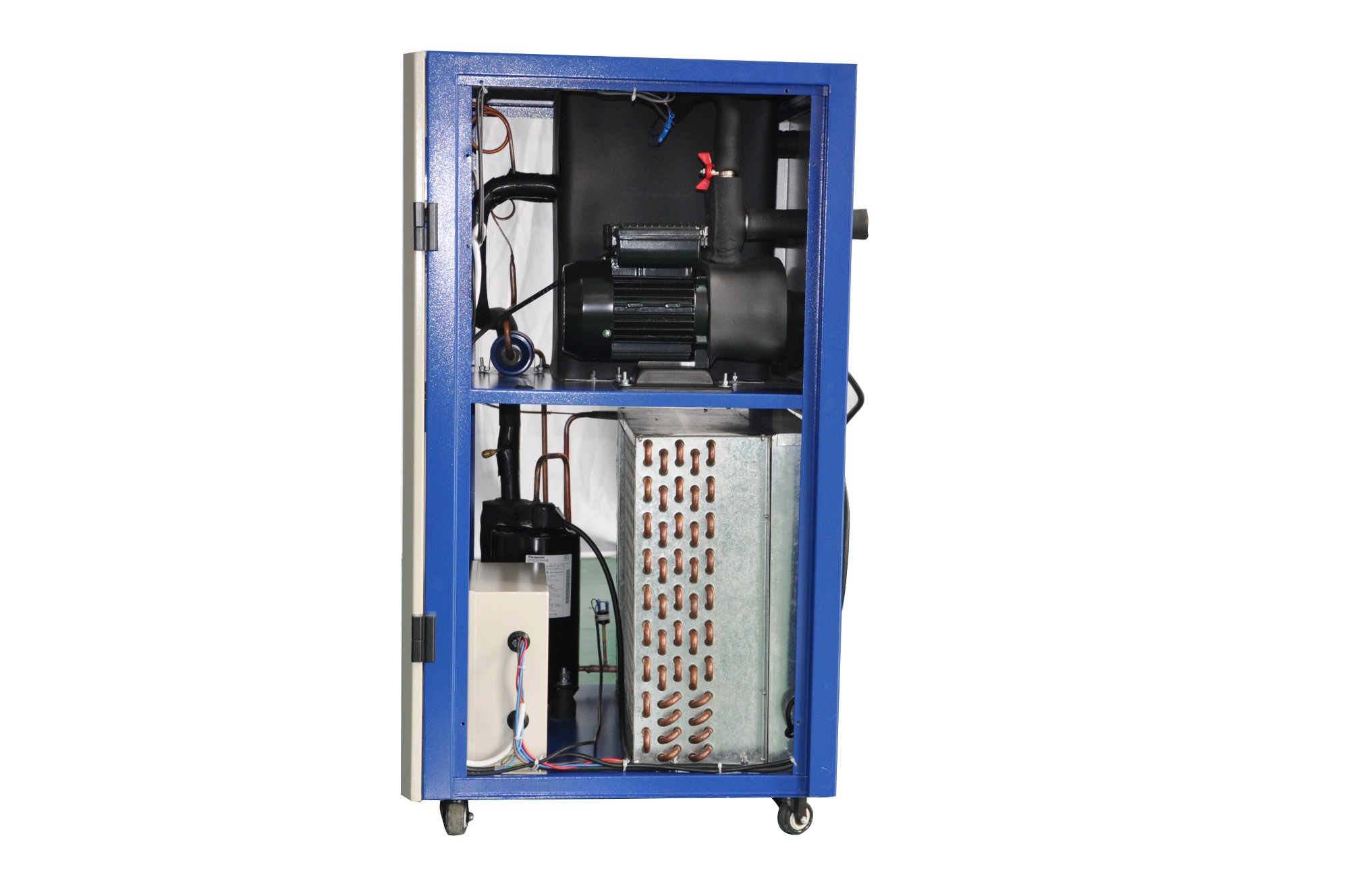

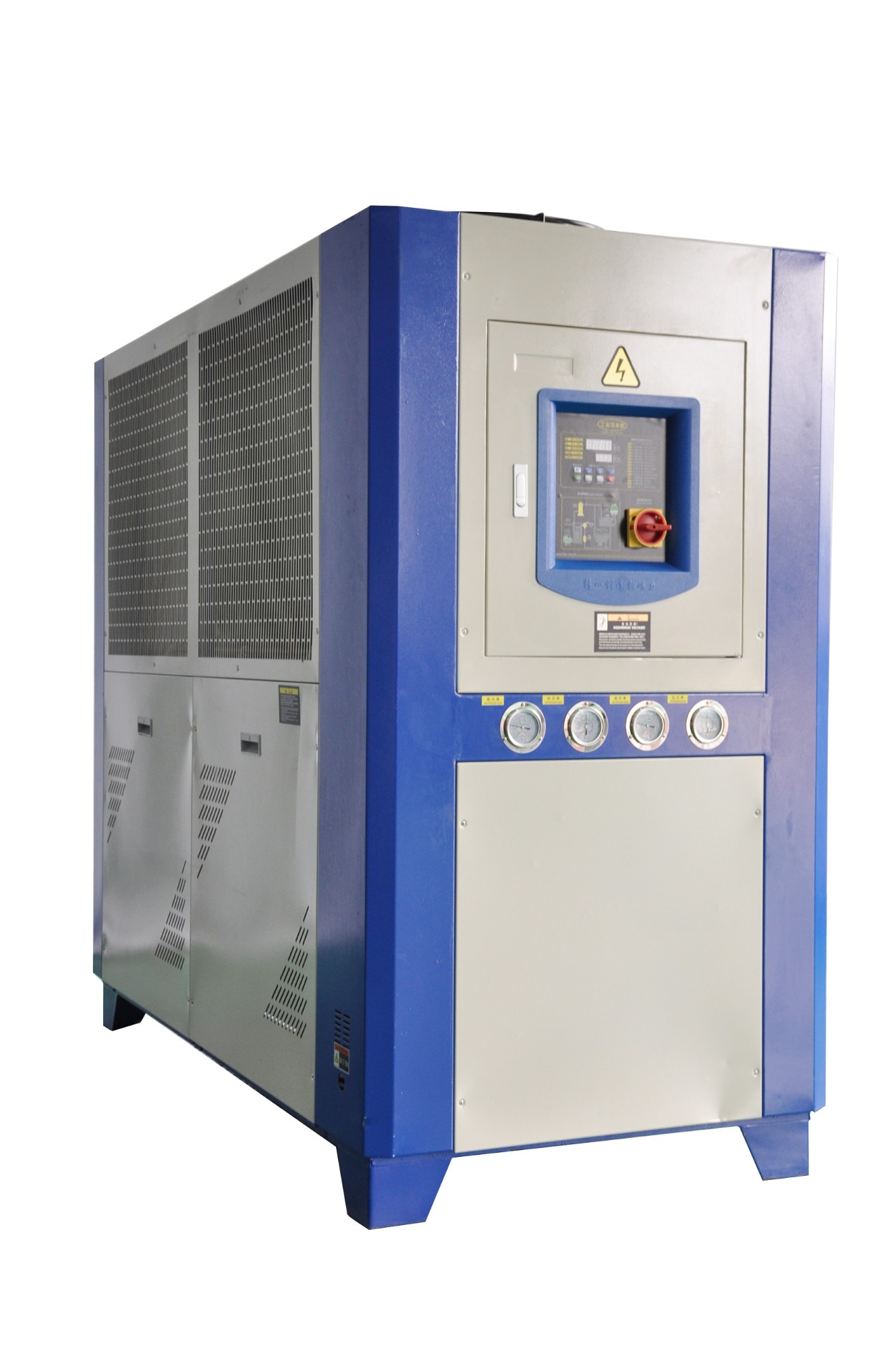

Industrial water chiller BCA-60

Product Item：Industrial water chiller BCA -60

high quality and high efficiency

large energy

Safe operation balance

small vibration

Description

According to years of industry experience and constantly on the basis of optimization, produce a series of high quality chiller。Whole series of international famous brand,like Copeland,Turbocor, Panasonic, DAIKIN compression, including vortex, piston, screw, semi-closed, fully enclosed various types, machine supporting high quality and high efficiency copper tube fin, industrial stainless steel production condenser, evaporator, material highest grade can reach industrial food grade requirements. Electrical components are the world brands Siemens, Schneider, ABB,. Reliable quality, excellent quality.The chiller has the advantages of small volume, low noise, large energy, long life, simple operation and so on. A variety of refrigerants can be selected, in addition to R22 refrigerant, can also choose R134a, R407c and other environmental protection refrigerant, to meet the requirements of low temperature, special environment use. The chiller control part adopts high-precision host panel developed by Btu, PLC programmable controller, human-computer interface, all Chinese display. It can realize the whole process, automatic computer adjustment control, making the unit control more accurate and reliable.Our chiller is compact, small area, light weight and easy to carry.Safe operation balance, small vibration, do not need a complex foundation, simple installation.Automatic protection function of the unit: high and low voltage protection, compressor protection, motor overload, overheating protection, anti-freezing protection, cold water, cooling water break water protection, temperature sensing type easy to melt plug, safety valve.

Model			BCA-01	BCA-02	BCA-03	BCA-04	BCA-05	BCA-06	BCA-08	BCA-10
Cooling capacity		KW	2.7	5.4	8.5	11.9	15	18	21.5	30
Cooling capacity		103kcal/h	2.4	4.6	7.3	10.2	12.9	15.5	18.5	25.8
Power Supply		V/ph/Hz	220/1/50		380/3/50
Input Power		kw	1.34	2.19	3.19	4.73	5.23	6.13	7.76	10.54
Compressor Type			Rotor		Scroll
Compressor Power		kw	0.88	1.69	2.45	3.8	4.3	5.2	6.2	8.6
Pump Power		kw	0.37	0.37	0.55	0.55	0.55	0.55	1.1	1.1
Pump Head		m	20	20	20	20	20	20	20	20
Chilled Water Flow		m3/h	0.46	0.92	1.55	2	2.5	3.1	4	5
Evaporator Type			Water Tank Type/Stainless Steel Plate Type
Water Tank Volume		L	20	40	50	70	70	80	120	200
Pipe Size		DN	15	20	25	25	25	25	40	40
Condenser			Coil
Air Volume		m3/h	1500	2800	4000	6500	6800	7500	9300	12000
Fan power		W	90	130	190	380	380	380	460	840
Refrigerant			R22/R134a/R404
Throttle Mode			Capillary Tube/Expansion Valve
Protector			Pressure,Overload,Anti-freeze,Delay,Over-temperature,Water Flow
Noise Level		dB(A)	58	59	60	62	62	62	64	65
Weight		Kg	75	120	150	180	180	200	230	260
Dimension	L	mm	600	600	1000	1200	1200	1250	1450	1650
	W	mm	520	600	550	600	600	650	750	790
	H	mm	800	1000	1050	1100	1100	1200	1200	1300

Model			BCA-12	BCA-15	BCA-20	BCA-25	BCA-30	BCA-40	BCA-50	BCA-60
Cooling capacity		KW	38	46.1	62.2	70.4	93.3	124.4	140.8	176
Cooling capacity		103kcal/h	32.7	39.6	53.4	60.5	80.2	106.9	121	151.3
Power Supply		V/ph/Hz	380/3/50
Input Power		kw	12.34	15.6	20.1	24.1	29.05	39.55	49.2	56.6
Compressor Type			Scroll
Compressor Power		kw	10.4	12.3	16.2	20.2	24.3	32.4	40.4	50.5
Pump Power		kw	1.1	2.2	2.2	2.2	3.75	3.75	4	5.5
Pump Head		m	20	20	20	20	20	20	20	20
Chilled Water Flow		m3/h	6.5	7.6	10.2	11.6	15.5	21.1	26.7	29.8
Evaporator Type			Water Tank Type/Stainless Steel Plate Type
Water Tank Volume		L	200	270	350	350	420	500	600	650
Pipe Size		DN	40	50	50	50	65	80	80	80
Condenser
Air Volume		m3/h	13000	16000	20000	24000	29000	40000	48000	60000
Fan power		W	840	1100	1700	1700	2550	3400	3900	4200
Refrigerant			R22/R134a/R404
Throttle Mode			Capillary Tube/Expansion Valve
Protector			Pressure,Overload,Anti-freeze,Delay,Over-temperature,Water Flow
Noise Level		dB(A)	65	67	68	68	68	68	68	68
Weight		Kg	350	650	750	1200	1300	1500	1800	2100
Dimension	L	mm	1650	1850	2000	2150	2600	3300	3300	4100
	W	mm	790	900	950	1000	1100	1500	1500	1500
	H	mm	1300	1650	1650	1700	1700	1600	1600	1600
