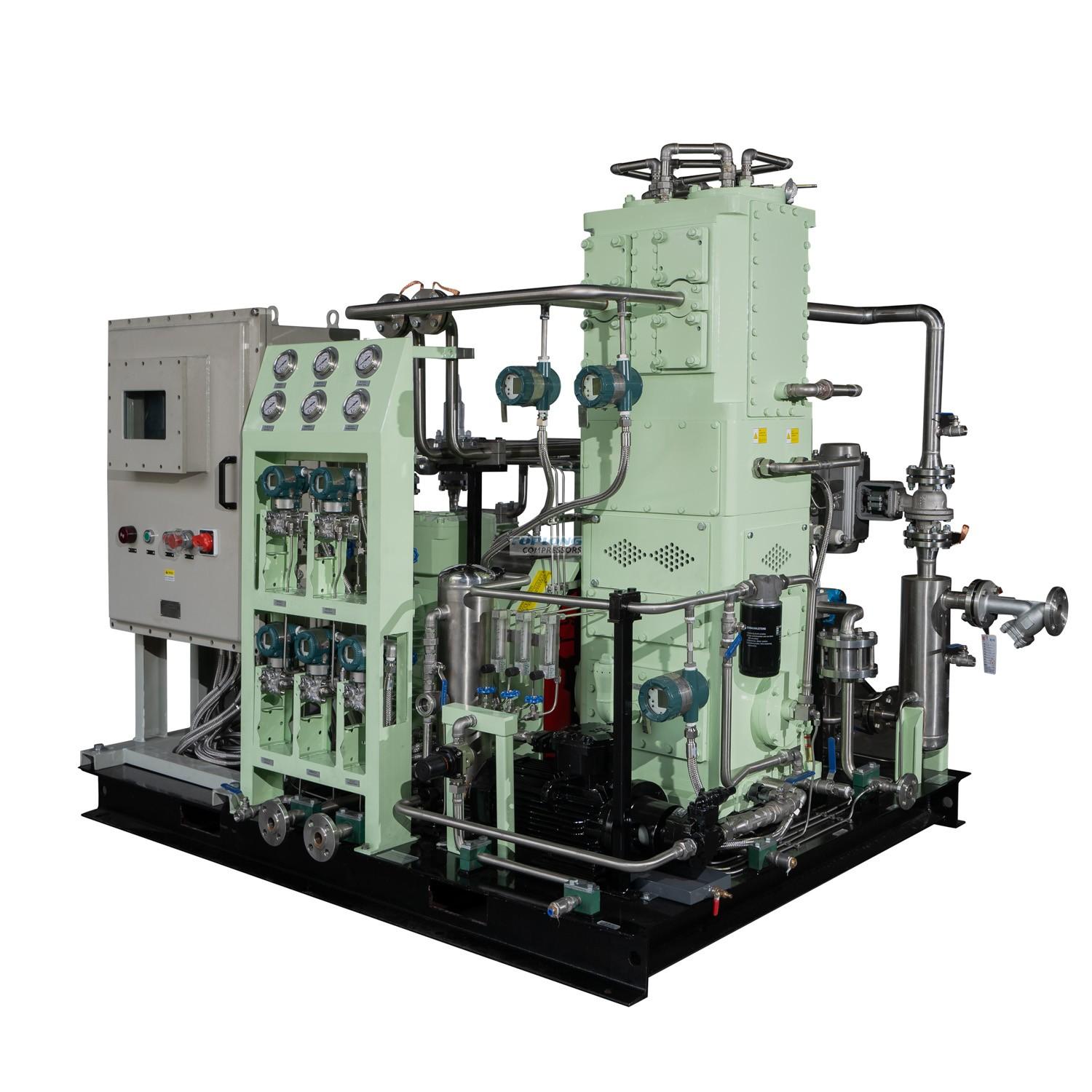

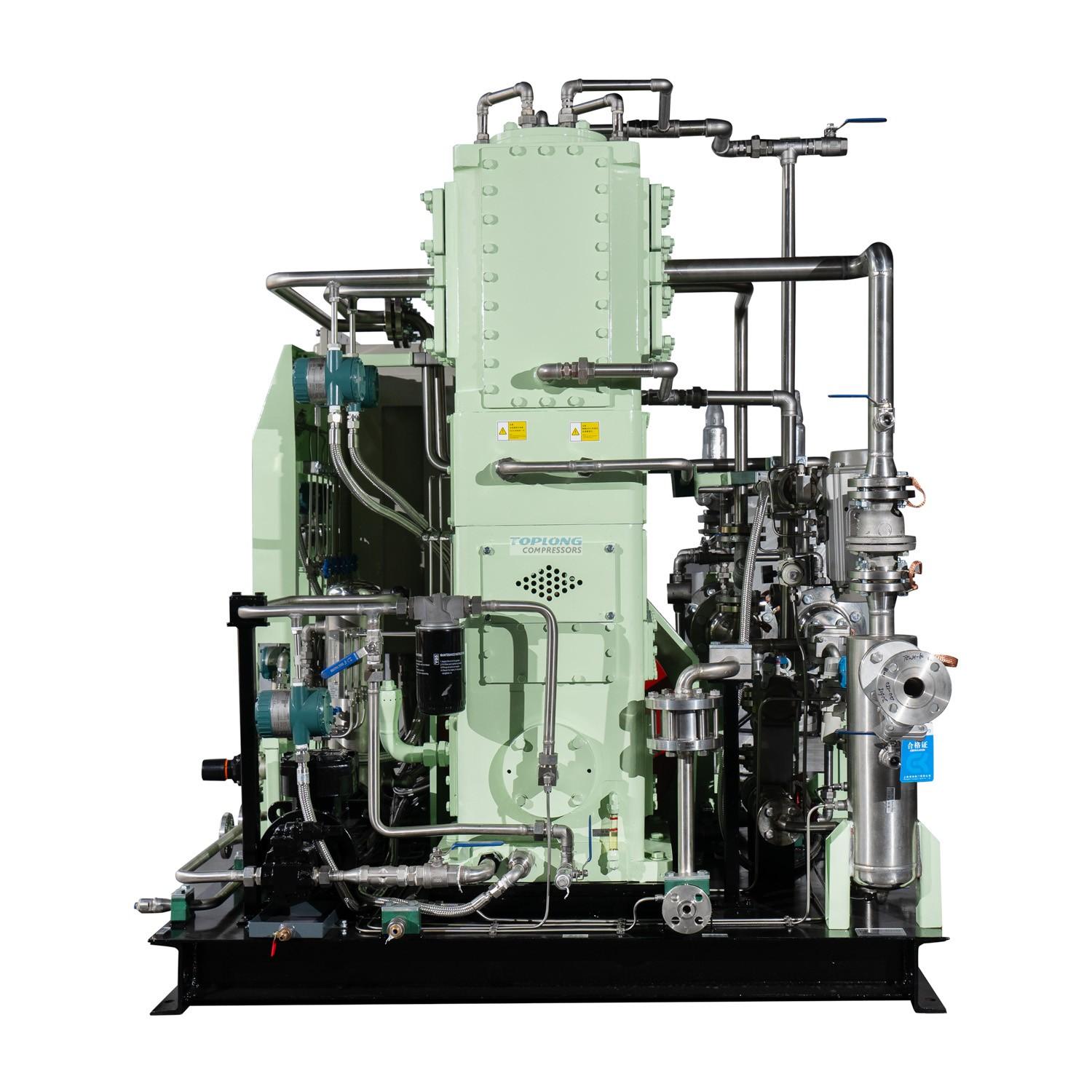

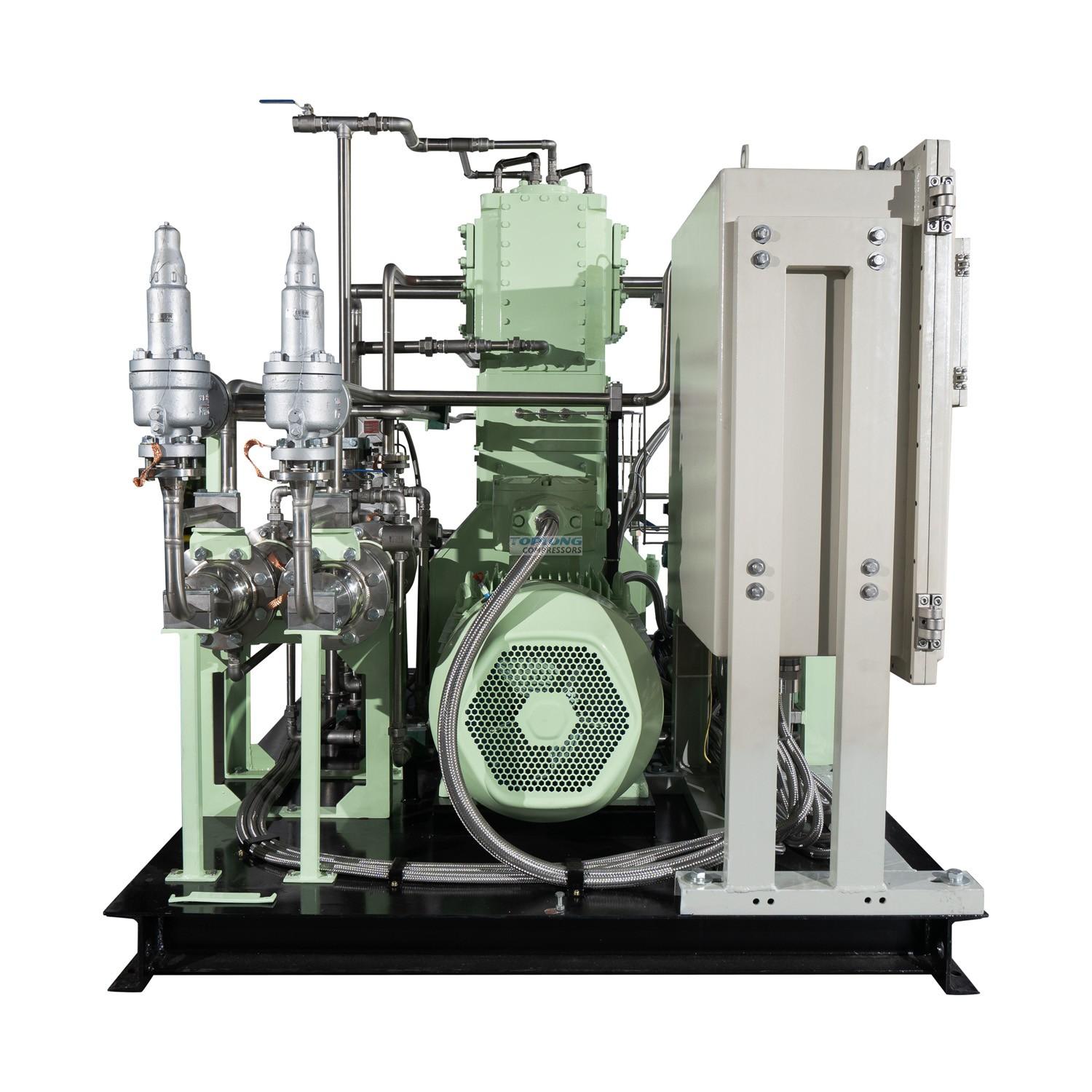

OIL FREE C2HF3 COMPRESSOR
This is vertical type oil free trifluoroethylene CAS (C2HF3) compressor
working medium is trifluoroethylene
flow rate is 60nm3/h
inlet pressure is 0.8 bar pressure ,outlet pressure is 8bar pressure
Vertical design ,and two stage pressure ,and two pcs gas cylinder

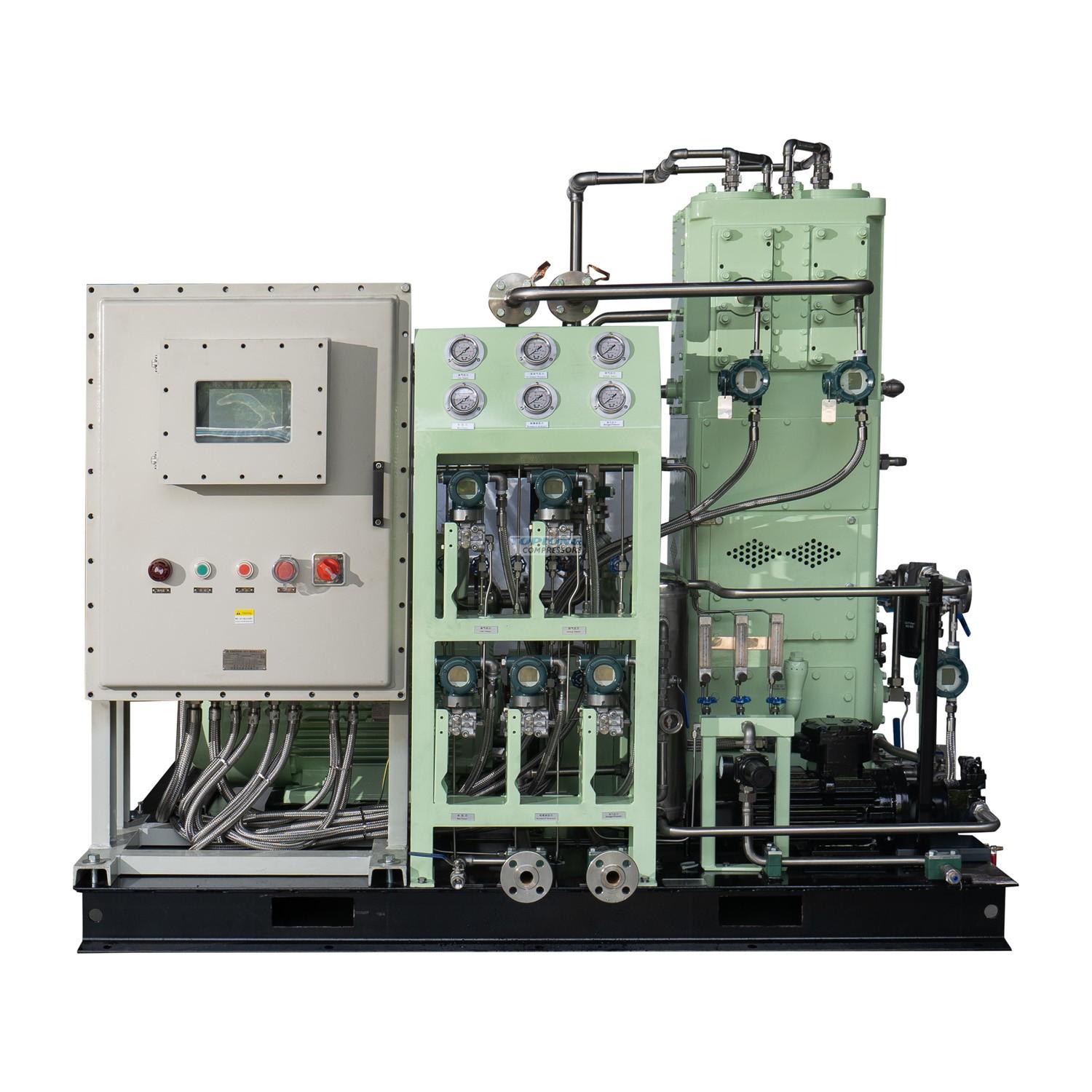

Electric control panel has each stage pressure and temperature sensor
and alarming ,and working time indicator
all the relative technical data will show it in the PLC screen
This compressor is very popular intrifluoroethylene gas factory scope
|
Project and parameters |
|||
|
Medium |
Trifluoroethylene, hexafluoropropylene |
Quantity |
1 |
|
Inter pressure MPa(G) |
0.08~0.4 |
Inlet temperature ºC |
0~30 |
|
Discharge pressure Mpa(G) |
0.8 |
Discharge temperature (After cooling) ºC |
≤50ºC |
|
Volume flow Nm3/h |
60 (Inter pressure=0.08MPa) |
Piston stroke mm |
75 |
|
Model |
TZWH-60/0.8-8 |
Compressed series |
2 |
|
Structural type |
Double column vertical |
Number of cylinders |
2 |
|
Speed of crankshaft r/min |
485 |
Voltage V |
380 |
|
Cooling method |
water-cooling |
cooling water flow t/h |
0.3 |
|
Shaft power KW |
≤8.5 |
Motor speed r/min |
485 |
|
Motor |
11kw-12pole 380V50Hz dIIBT4 |
||
|
Outline dimension mmXmmXmm |
2200*1500*1750 |
Unit weight T |
1.5 |
|
Entry / exit size mm |
Inter 11/2" Outer 11/2" |
Water interface in and out |
1" |
|
Driving mode |
Direct coupling |
||
|
Material is partly in contact with the gas
|
Body, crankshaft |
cast iron |
|
|
|
Gas valve, pipe, and cooler |
stainless steel |
|
|
|
Piston ring, guide ring |
filled polytetrafluoroethylene |
|
|
Scope of supply |
Main engine, motor, cooler, control cabinet, skid-mounted chassis, air intake filter, safety valve, outlet matching flange, random file, etc. |
||
|
Other matters needing attention |
1, Motor brand: Sianda. Motor energy efficiency grade:> 8 grade motor without energy efficiency grade division 2, The piston rod is sealed with nitrogen to provide nitrogen gas continuously. 3, Safety valve: Yongyi. Pneumatic ball valve: KOSO (Wuxi tooling) 4, Compressor containing liquid separator and stabilizer tank, compressor no pressure vessel. 5, Electrical and paint have special requirements. Column data is for user reference |
||
