Description

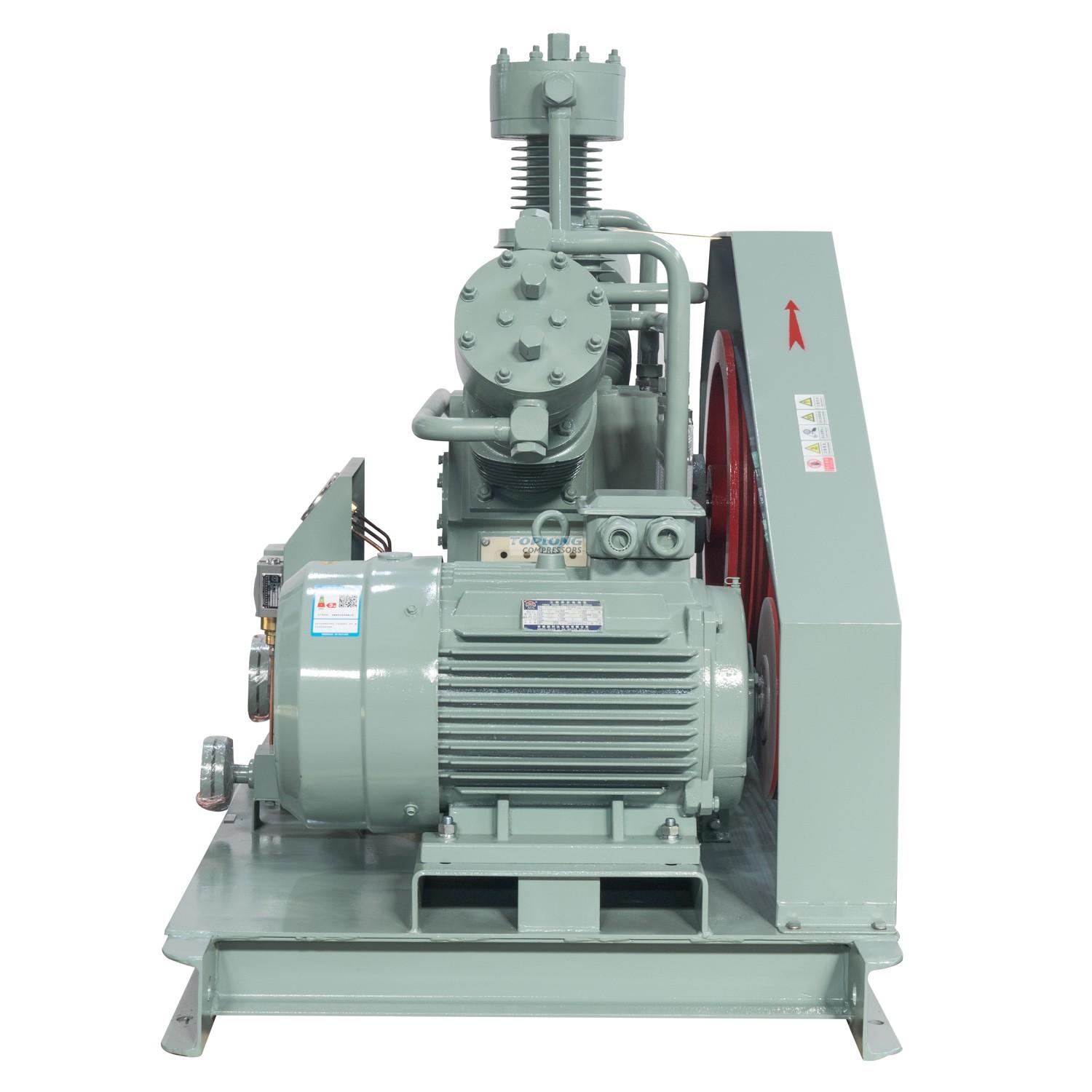

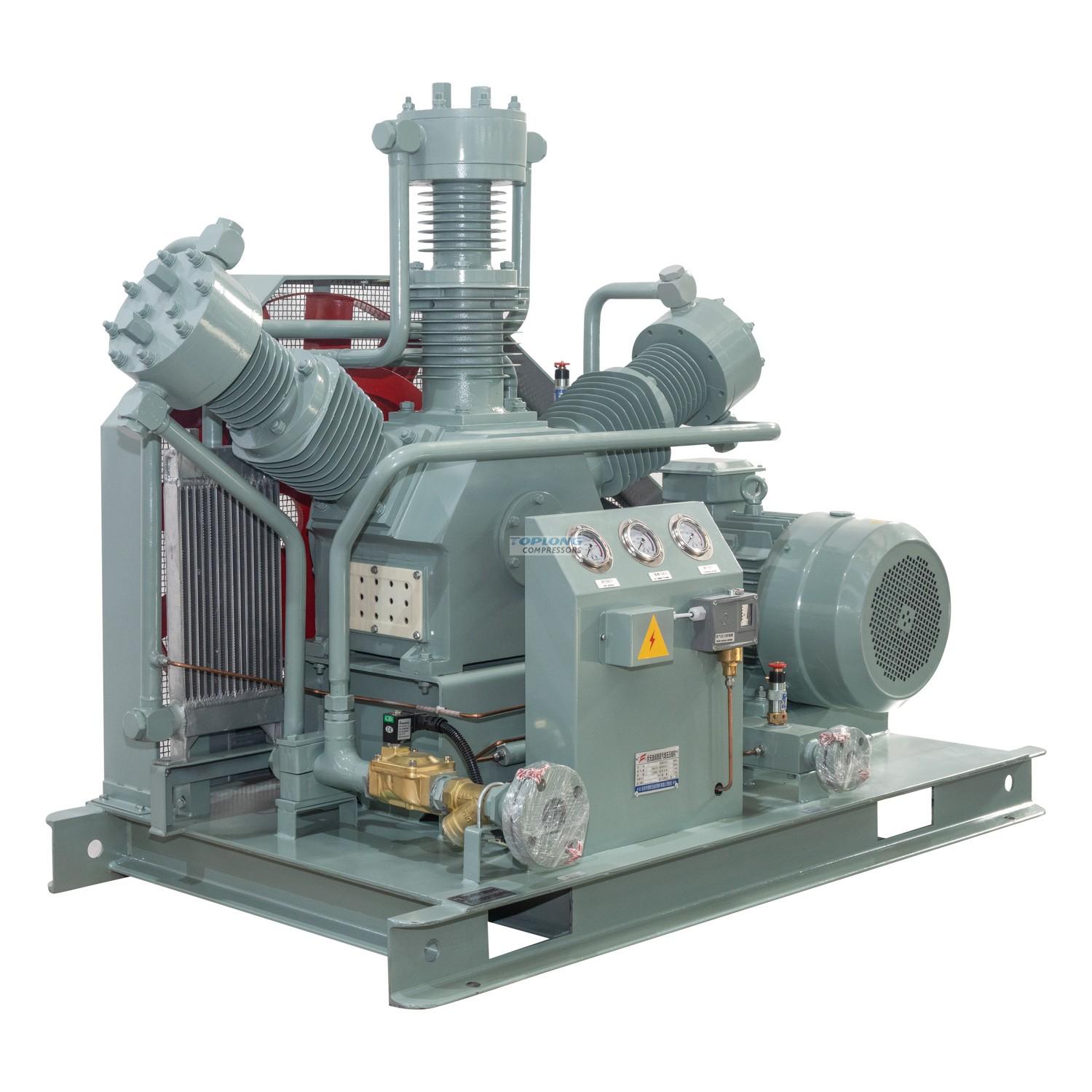

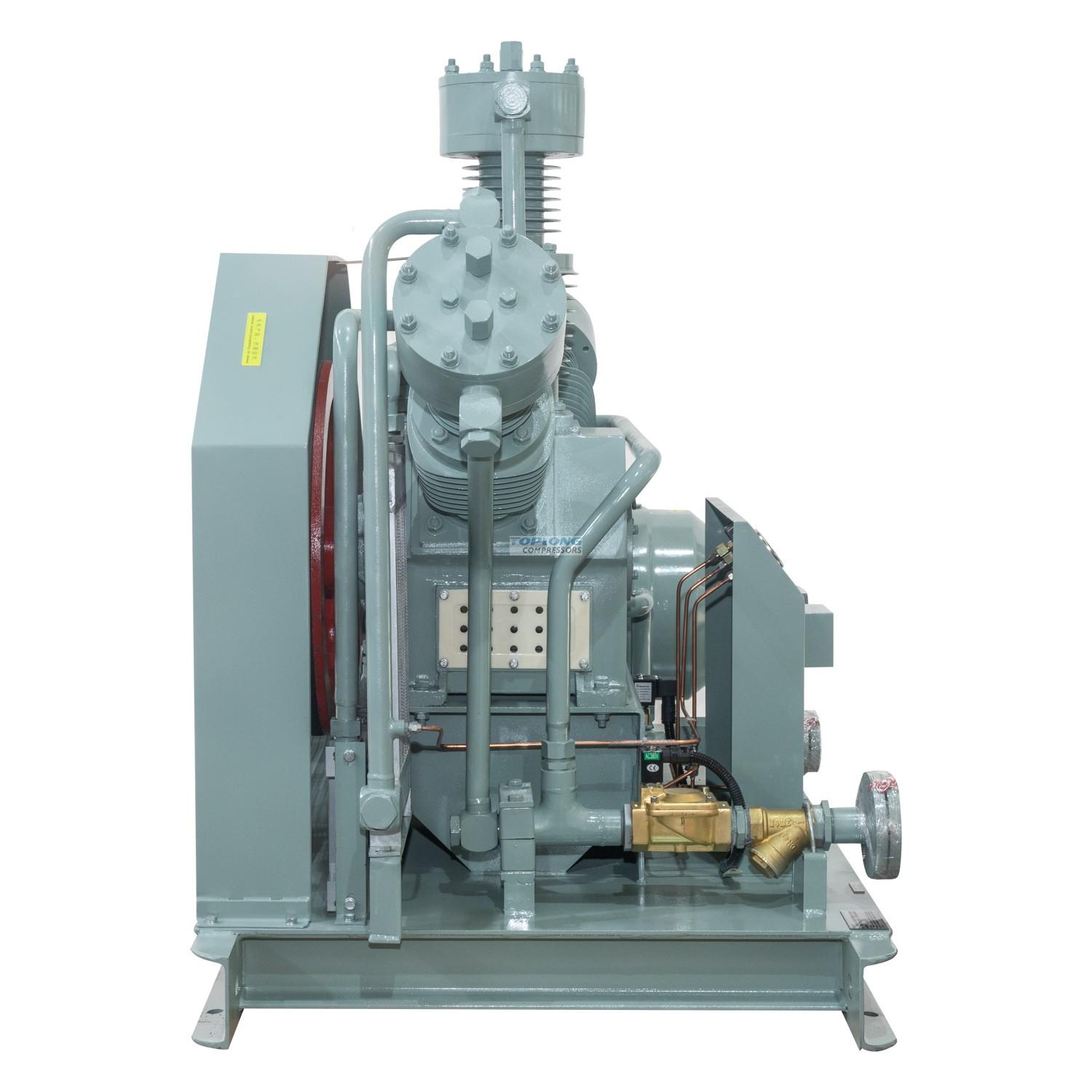

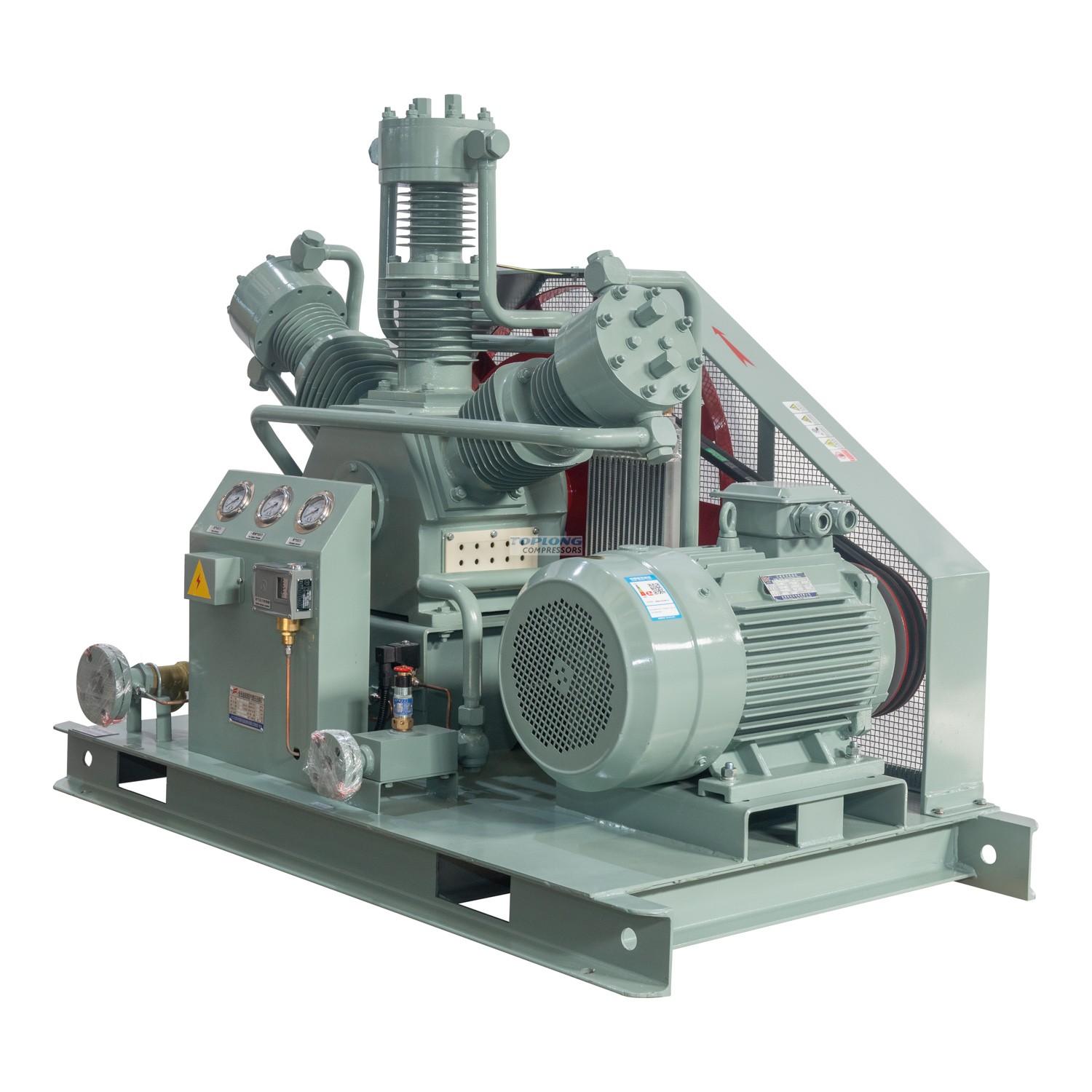

VW TYPE LOW PRESSURE NITROGEN COMPRESSOR
This nitrogen compressor is suitable for inlet pressure 5-7barg(70-100psig), exhaust pressure 20-40barg, Low flow laser cutting system.
Characteristics of this compressor
It adopts two-stage compression, air-cooling, which is convenient to use, and ensures good cooling effect of the compressor. The inlet is equipped with an intake pressure controller, the exhaust end is equipped with a pressure controller, and each stage is equipped with a safety valve, If the display is over-temperature and over-pressure. the system will alarm and stop. ensuring safe operation. There is a forklift position at the bottom of the compressor, which can be easily transferred to the construction site.
Here is our oil free nitrogen compressor technical data
|
Project and parameters |
||||
|
Medium |
Nitrogen |
Quantity |
1 |
|
|
Inlet pressure MPa（G） |
0.5 |
Inlet temperature ℃ |
≤ 40 |
|
|
Discharge pressure Mpa（G） |
3.0 |
Discharge temperature (after cooling) ℃ |
≤ 50 |
|
|
Flow rate Nm3/h |
120 (Inter pressure=0.5 Mpa） |
Piston stroke mm |
110 |
|
|
Model |
WW-120/5-30 |
Compressed series |
3 |
|
|
Structural type |
All oil-free lubrication W type |
Number of cylinders |
3 |
|
|
Speed of crankshaft r/min |
740 ※ |
Voltage V |
380 |
|
|
Cooling method |
air cooling |
Cooling water flow t/h |
--- |
|
|
Shaft power KW |
≤15.0kw |
Motor speed r/min |
1430 |
|
|
Into, out of the gas interface mm |
DN40 DN20 |
Entry and exit water interface mm |
--- |
|
|
Motor |
18.5KW 380V 50Hz ※ |
|||
|
External dimensions mmXmmXmm |
1400x950x1200 ※ |
Unit weight T |
0.62 ※ |
|
|
Driving mode |
belt drive |
|||
|
Main material
|
air cylinder |
plain carbon steel |
||
|
|
air valve |
stainless steel |
||
|
|
Pipe, cooler |
Ordinary carbon steel, aluminum alloy |
||
|
Supply of material scope |
Main engine, motor, skid-mounted chassis, start cabinet, air intake filter, front machine meter and control components, safety valve, random documents, random spare parts, etc. (Note: subject to the final technical agreement). |
|||
|
Other matters needing attention |
※ bar data is for user reference |
|||
|
Date of delivery |
The contract is signed, 30 days after received the payment |
|||
