Description
Paintball compressor,high-pressure compressors, in line with the national design standards of ventilating, coal mine, military, ship, diving and marine, have reached the GB18435-2001 standard of diving breathing gas, and have filled the blank of high-pressure air compressors. By the European H0BRAND detection, the exported products accords with the EN12021 international standard of breathing air compressor, reaching the world-class level
All NA Series blocks are built to the highest quality standards. In each one
| Model No. | BX100 | BX100ET | BX100P |
| Medium | Breathable air | ||
| Air quality | Comply with EN12021 STANDARD | ||
| Discharge rate | 100L/min (6m3/h) | ||
| Work pressure | 225bar/330bar | ||
| Noise | 95dB | 97dB | |
| Weight | 46kg | 44kg | |

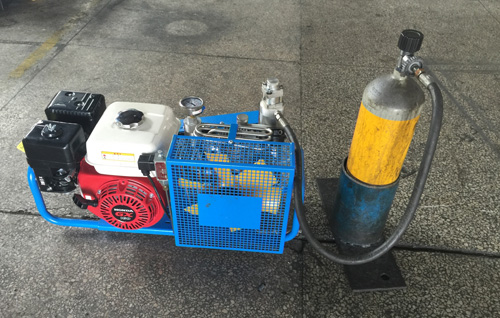

| Drive | Single phase | Three phase | Gasoline engine |
| Power | 2.2kw | 2.2kw | 4.2k2 |
| Compressor Parameters | |||
| Stage | 3 | ||
| 1st-stage cylinder | 60mm | ||
| 2nd-stage cylinder | 28mm | ||
| 3rd-stage cylinder | 12mm | ||
| Travel | 24mm | ||
| Speed | 2300rpm | ||
| 1st-stage exhaust pressure | 0.6-0.7Mpa | ||
| 1st-stage safety valve pressure | 1.0Mpa | ||
| 2nd-stage exhaust pressure | 4-6Mpa | ||
| 2nd-stage safety valve pressure | 8Mpa | ||
| Lubricating system | splash lubrication | ||
| Oil volume | 360ml | ||
| Max. intake temperature | 5-45℃ | ||
| Intake temperature | Environment temperature+20℃ | ||
| Motor protection grade | IP55 | ||
| Length(mm) | 700 | 770 | |
| Width(mm) | 380 | 420 | |
| Height(mm) | 420 | 420 | |
Charging rate:100L/min-6m³/h-3.5CFM
Filling time cylinder: 6L to 300bar:18min
Working pressure: 225Bar/3300psi-300Bar/4300psi-330bar/4500psi
Dimension: length 66cm/26'', width 38cm/15'', height 41cm/16.1''
Dry weight: 42kg/93bs
