30nm3 Oil Free CO2 Compressor 2vcw-30/0.6-34.5

30nm3 Oil Free CO2 Compressor 2vcw-30/0.6-34.5

CO2 Compressor

Oil Free

water-cooling

Piston

Description

Product Description

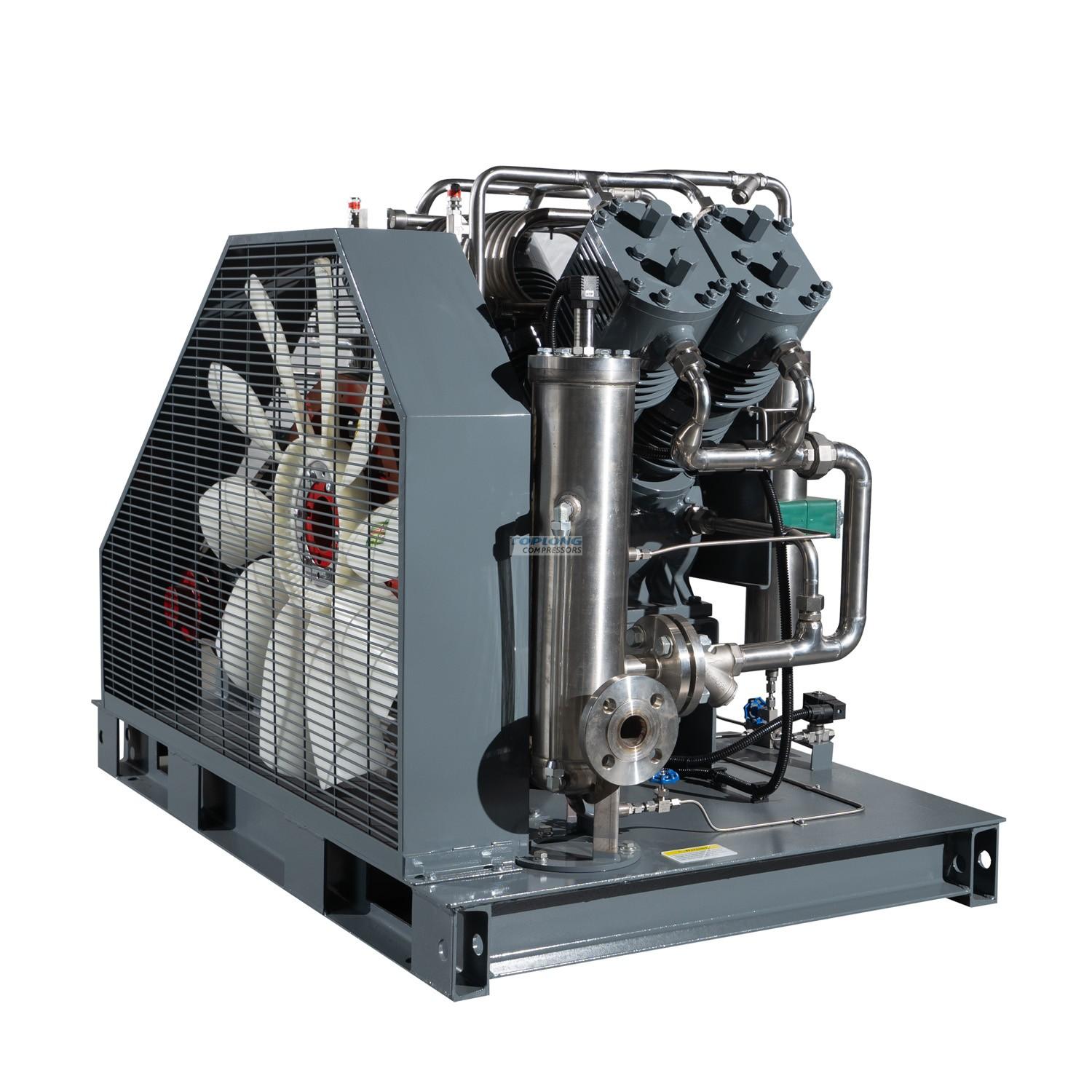

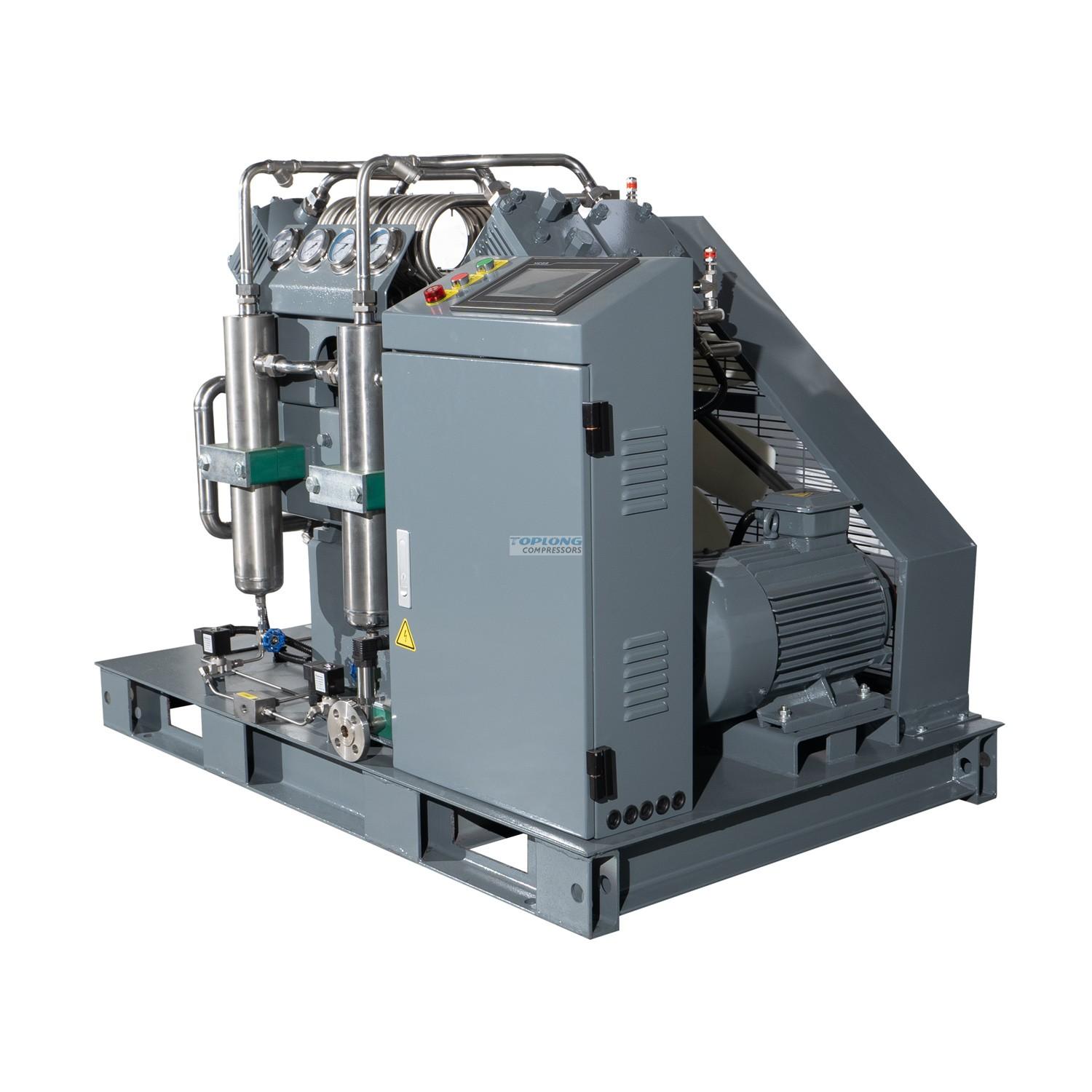

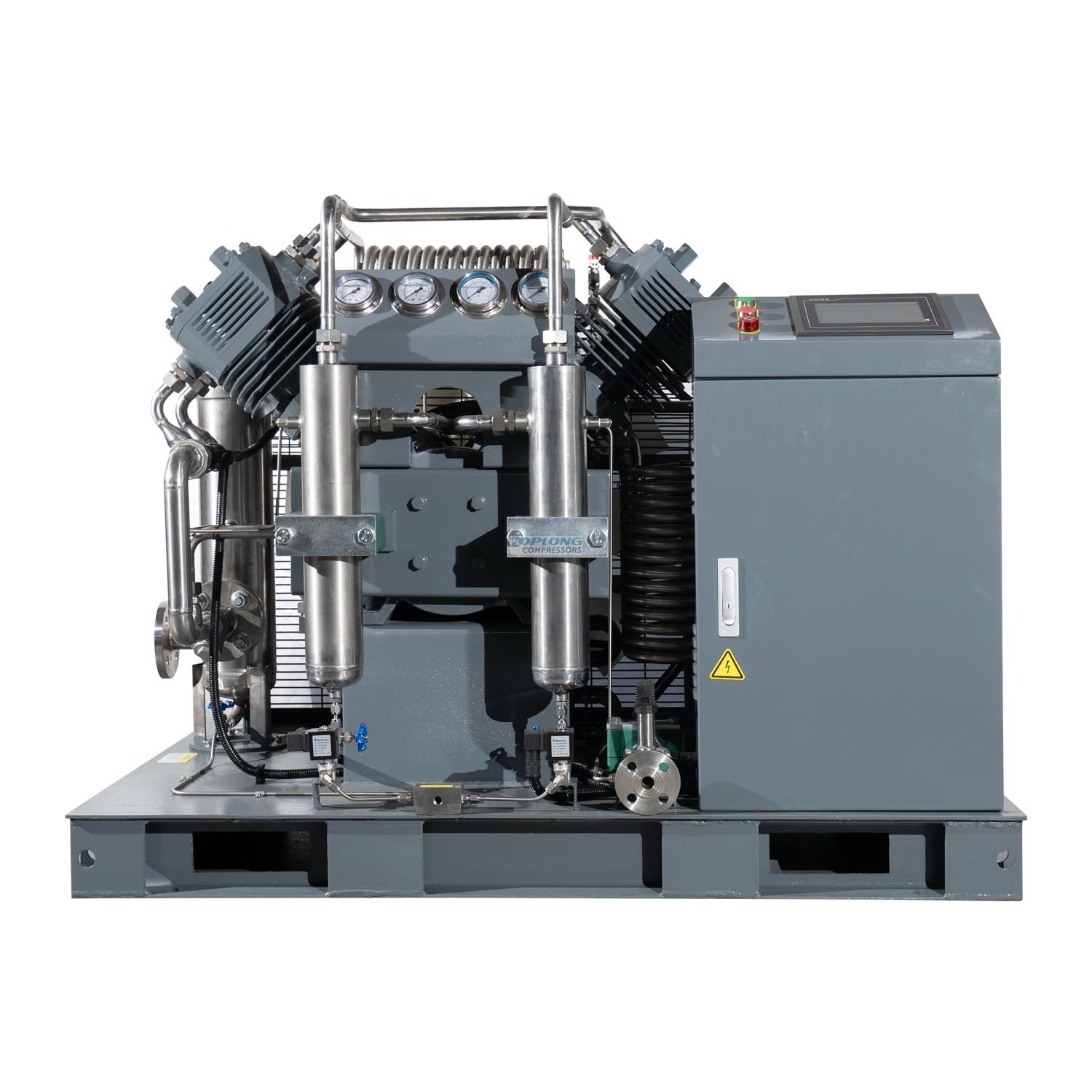

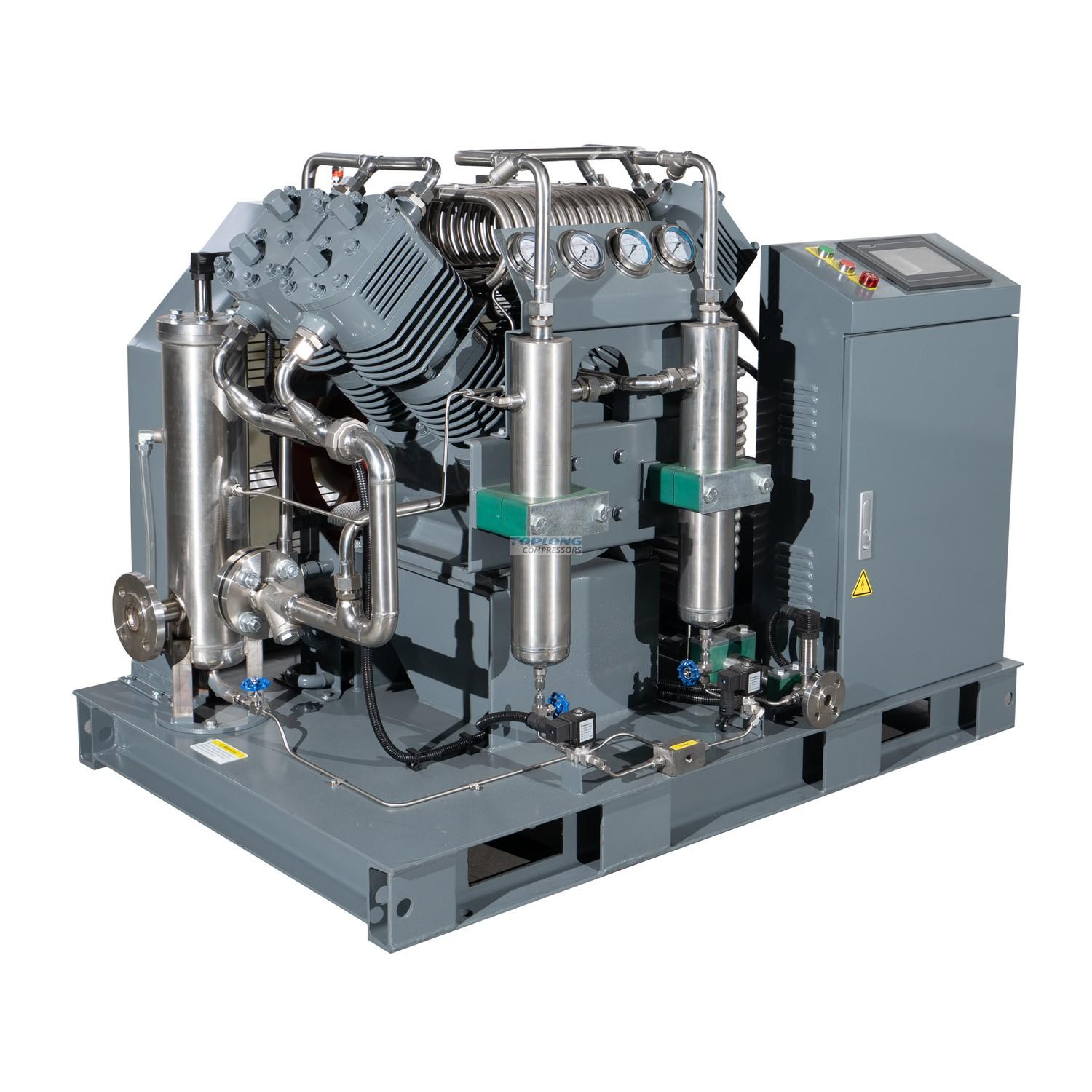

30NM3 OIL FREE CO2 COMPRESSOR
This is 2VW type oil free co2 compressor
working medium is co2( carbon dioxide) gas
flow rate is 20-40nm3/hour
Inlet pressure is micro positive pressure, outlet pressure is 30-40bar pressure,two stage pressure ,and four gas cylinder

This machine is designed according to the latest technological aesthetics and adopts a double V-shaped cylinder structure. The machine operates with low vibration and scientific and reasonable heat dissipation,

This compressor is very popular in co2 gas recovery scope and supercritical fluid extraction scope

Project and parameters
Medium	CO2 Mixed gas	Quantity			1
Inter pressure MPa(G)	0.06	Inlet temperature ºC			0~40
Discharge pressure Mpa(G)	3.45	Discharge temperature (After cooling) ºC			≤55
Volume flow Nm3/h	30(Inter pressure=0.06MPa)	Piston stroke mm			75
Model	2VCW-30/0.6-34.5	Compressed series			3
Structural type	V type pry type	Number of cylinders			4
Speed of crankshaft r/min	460	Voltage V			380
Cooling method	air cooling	cooling water flow t/h			---
Shaft power KW	5.5	Motor speed r/min			1700
Motor	7.5kw 380V 50Hz
Outline dimension mmXmmXmm	L1500×W850×H1150	Unit weight t			0.78
Entry / exit size mm	DN32/DN15	Into / out water interface mm			-----
Driving mode	Triangular belt
Material is partly in contact with the gas	Body, crankshaft	cast iron
	Gas valve, cylinder head	stainless steel
	Piston ring, guide ring	filled polytetrafluoroethylene
Scope of supply	Main engine, motor, cooler, separator, skid-mounted chassis, start cabinet, air intake filter, safety valve, random file, etc.
Other matters needing attention	Column data is for user reference Standard configuration: 1,Motor (Luv-electric or equivalent) 2,Safety valve (Zhejiang Wanneng) 3,Solenoid valve (Zhejiang Sanlixin) 4,Pressure gauge (Nanjing Zhipu or equivalent) 5,Pressure controller / pressure transmitter (Changzhou Tianli) 6,Electrical components (Chnt)
Delivery time	Contract signing, 60 working days after the advance payment to the account
Price			Offer validity	3 months
