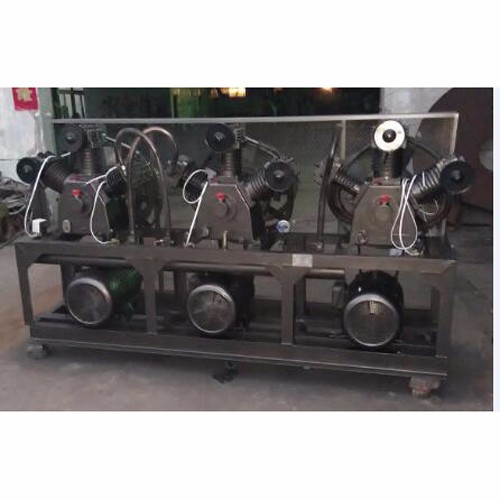

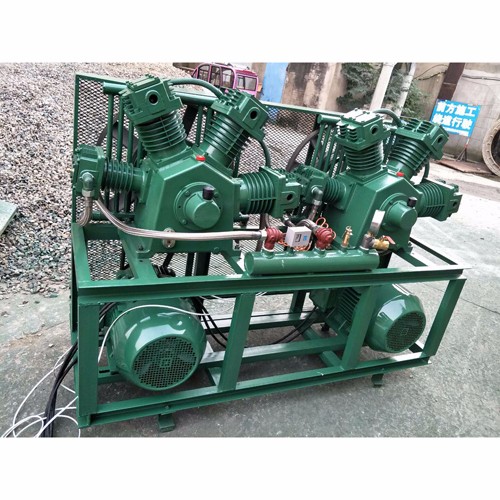

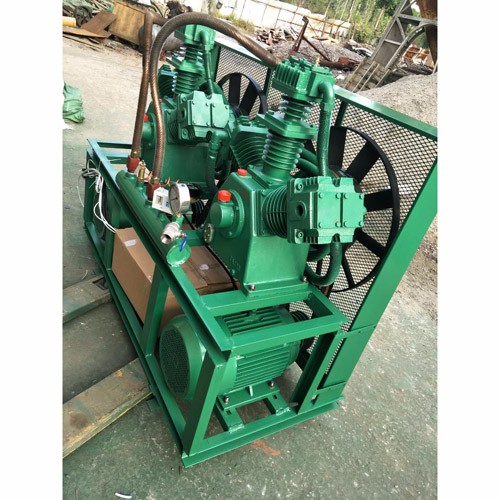

Base plate 30bar Oil lubricated Pet bottle blowing air compressor

Base plate 30bar Oil lubricated Pet bottle blowing air compressor

Product Item：W-3.6/30

oil free compressor

slow speed

low maintenance cost

reliable quality performance

Description

PET bottle blowing high pressure air compressor
-PET bottle blowing air compressor is named as PET START specially designed for PET blow moulding machine;
-The compressors are named as PET STAR for PET blowing molding machine ;
-The compressor delivers outstanding quality under all weather conditions;
-An automatic unload system ensures that the system starts safely without residual pressure. This feature protects both frame and motor and so extends the working life of all components ;
We provide top quality and cost performance bottle blowing air compressor for your business
This model is 30bar compressor, two stage air compressor, With/without unloading function;

Model W-3.6/30	W-3.6/30
Power(Hp,Kw)	20×3,15×3
Working Pressure(Bar,Psi)	30,430
Air Delivery(L/min,CFM)	3600 ,127
Cylinder(diameter × piece)
Speed(r.p.m) 760	760
Tank(L) NULL
Net Weight(Kgs) 1350	1350
Meas(L×W×H ,Cm)	24009801400
