Description

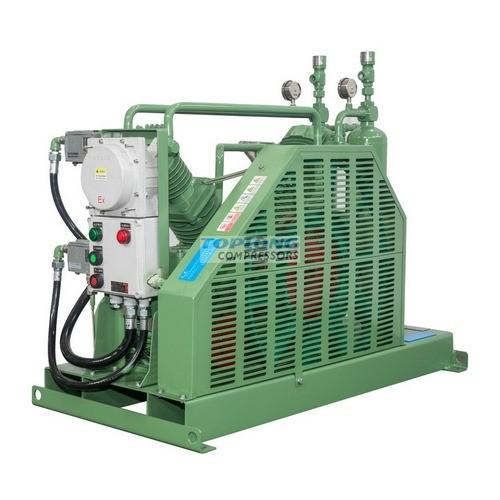

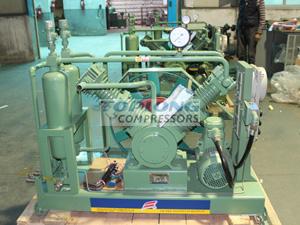

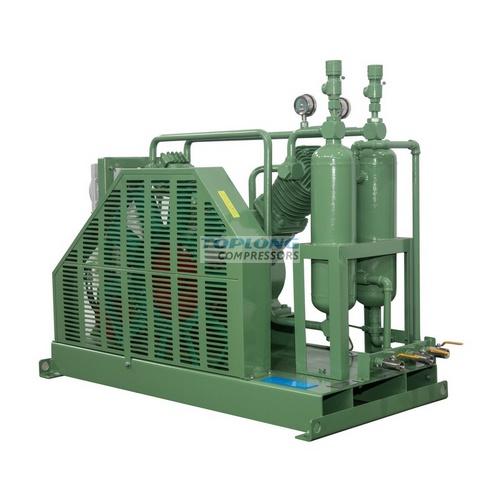

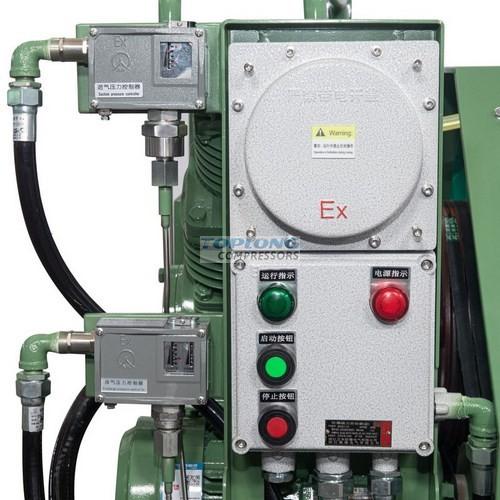

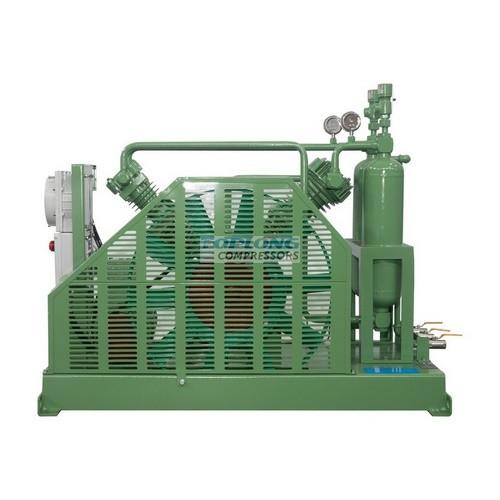

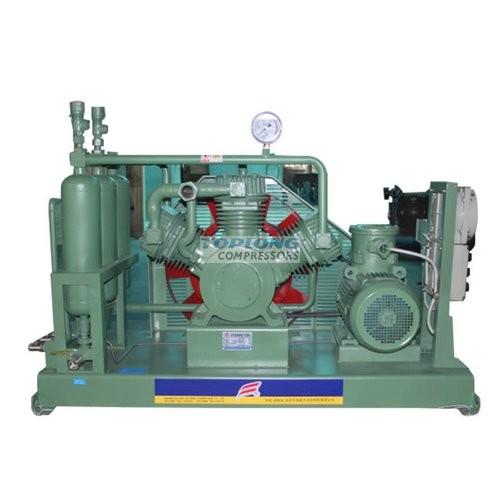

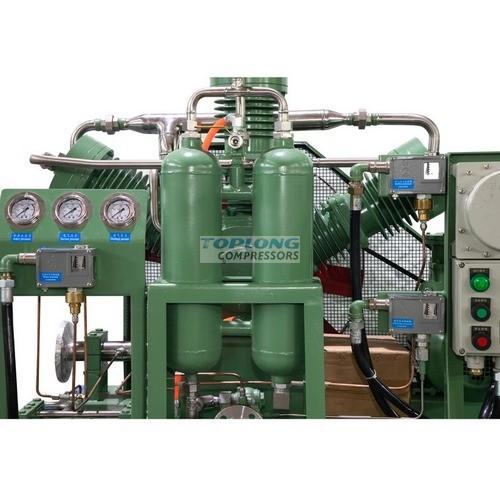

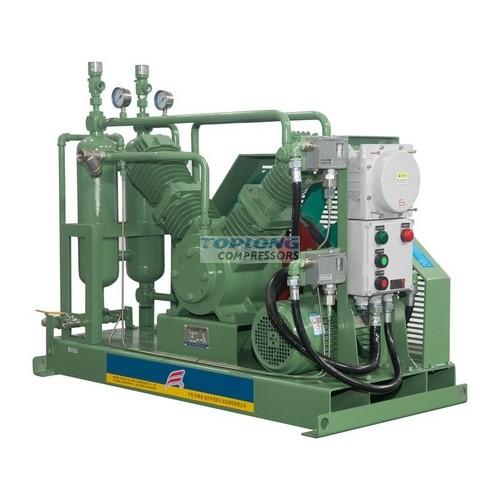

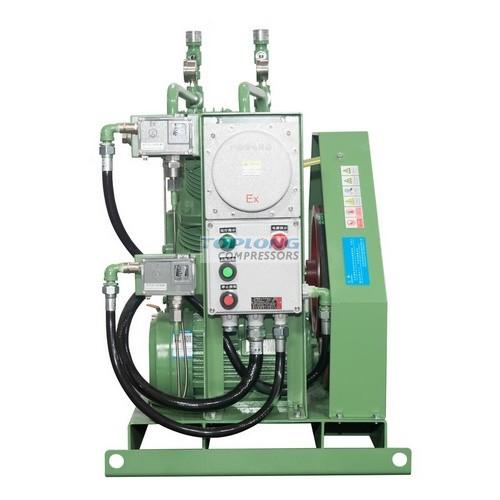

Working principle of the hydrogen compressor
Hydrogen compressor structure is more complex, the more important components are cast iron cylinder, cast iron cylinder sleeve, cast iron cylinder head, cast iron crankshaft, connecting rod, crosshead (including crosshead slide), filler, piston (including piston ring), scraping oil ring, stainless steel piston connecting rod, stainless steel gas valve, etc., in addition to some auxiliary equipment, such as gas filter, buffer, lubricating oil pipeline, etc.Like other reciprocating compressors, the hydrogen compressor comprises three processes: suction, compression, and exhaust.Under the motor drive, the crankshaft drives the crosshead, the piston connecting rod and the piston back and forth in the cylinder, and the gas is finally discharged through the air valve under the piston compression.
Mode
working medium
inlet pressure (Mpa,Psig)
discharge pressure(Mpa,Psig)
power Motor.KW
flow rate Nm3/hr
Voltage
Cooling way
HV-1/5
Hydrogen
atmosphere
0.5,72
0.75
1
220V/380V/415V/440V 50/60HZ
water cooling
HV-15/0.5-9
Hydrogen
0.05,7
0.9,130
3
15
220V/380V/415V/440V 50/60HZ
water cooling
HW-20/0.5-9
Hydrogen
0.05,7
0.9,130
4
20
220V/380V/415V/440V 50/60HZ
water cooling
HV-17/3.4-21
Hydrogen
0.34,49
2.1,300
3
17
220V/380V/415V/440V 50/60HZ
water cooling
HW-16/0.5-80
Hydrogen
0.05,7
8,1150
7.5
16
220V/380V/415V/440V 50/60HZ
water cooling
GHV-2/2-150
Hydrogen
0.2,28
15,2160
1.5
2
220V/380V/415V/440V 50/60HZ
water cooling
HW-10/4-200
Hydrogen
0.4,57
20,2875
4
10
220V/380V/415V/440V 50/60HZ
water cooling
HD-40/200
Hydrogen
atmosphere
20,2875
22
40
220V/380V/415V/440V 50/60HZ
water cooling
HW-50/4-200
Hydrogen
0.4,57
20,2875
18.5
50
220V/380V/415V/440V 50/60HZ
water cooling
GHD-50/2-150
Hydrogen
0.2,28
15,2160
22
50
220V/380V/415V/440V 50/60HZ
water cooling
HD-120/2-17
Hydrogen
0.2,28
1.7,244
22
120
220V/380V/415V/440V 50/60HZ
water cooling
HD-100/0.5-25
Hydrogen
0.05,7
2.5,360
30
100
220V/380V/415V/440V 50/60HZ
water cooling
HD-200/3
Hydrogen
atmosphere
0.3,43
30
200
220V/380V/415V/440V 50/60HZ
water cooling
ZWH-200/0.8-12
Hydrogen
0.08,11.5
1.2,172
30
200
220V/380V/415V/440V 50/60HZ
water cooling
