industrial gas hydrogen recycle diaphragm compressor in refinery

HomeProductsOil Free Diaphragm CompressorG2 type diaphragm compressorindustrial gas hydrogen recycle diaphrag
industrial gas hydrogen recycle diaphragm compressor in refinery industrial gas hydrogen recycle diaphragm compressor in refinery industrial gas hydrogen recycle diaphragm compressor in refinery industrial gas hydrogen recycle diaphragm compressor in refinery

industrial gas hydrogen recycle diaphragm compressor in refinery

  • Product Item:GL2-30/4-350
  • silent working and easy moving
  • 24hours heavy duty working model
  • CE and iso 9001
  • two years quality guarantee
  • Category:G2 type diaphragm compressor
  • industrial gas hydrogen recycle diaphragm compressor in refinery
    Inquiry Send Email

    Description

    hydrogen recycle  diaphragm compressor in refinery , is a reciprocating compressor that reciprocates in a cylinder to compress and transport gas.
    The diaphragm compressor is a special type of volumetric compressor with large compression ratio, good sealing performance, and the compressed gas is not polluted by lubricating oil and other solid impurities. Therefore, it is suitable for compressing high purity, rare and precious, flammable, explosive, toxic and harmful, corrosive and high pressure gases.

    industrial recycle hydrogen diaphragm compressor , are one of many types of compressors. It has a special name because it has a special diaphragm that separates the compressed medium from the outside. The diaphragm compressor can also be referred to simply as a membrane compressor. Due to its special structure, the oxygen reciprocating low pressure diaphragm compressor does not need lubrication, and the sealing performance is very good. The compressed medium is not in contact with any slip agent, so it can compress the gas with very high purity, generally achieving a purity of 99.999%, which is more suitable for compression. And transport all kinds of precious rare gases. In addition, for corrosive, radioactive, toxic, and explosive gases, diaphragm compressors are also particularly suitable. The diaphragm compressor has good heat dissipation and can adopt a high compression ratio, so its pressure range is wide, and the exhaust pressure can be up to 500MPa. It is used in the food industry, petroleum industry chemical industry, electronics industry, nuclear power plant, aerospace, military equipment, medicine, scientific research and other fields.

    G2 industrial hydrogen diaphragm compressor|nitrogen compressor|is a non-standard compressor product, G2 diaphragm compressor is divided into single cylinder GZ2 and double cylinder GL2 and GD2 diaphragm compressor, G2 diaphragm compressor piston force 2.5TON, Customized according to different customer parameters, requirements and environment!

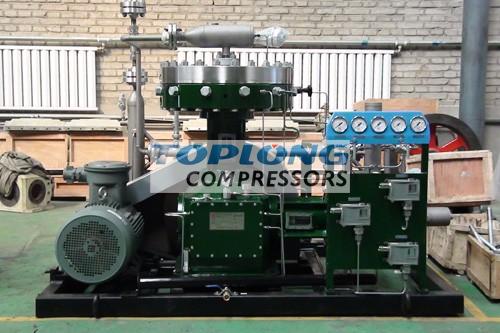

    GZ2 hydrogen diaphragm compressor make up gas 350bar bottling is composed of cylinder block, cylinder head, crankshaft connecting rod, diaphragm, oil circuit, gas path, water cooling system and motor drive. The G2 and G2 diaphragm compressor series products are available from our company. Cooling method: air cooling and water cooling.
    Company product features
    Ø Advanced oil-free disc cylinder component structure reduces the difficulty of assembly process; reduces sealing surface; alarm when leakage medium leaks, improves the reliability of the whole machine.
    Ø The oil consumption of the whole machine hydraulic oil is small, which is 1/2 of the oil used in the traditional diaphragm compressor. The economic advantage is very obvious for the oxygen compressor.
    Ø New membrane cavity curve, Kezan
    Nie or HOERBIGER's air valve,
    Leading diaphragm surface treatment technology
    Improves the work of the compressor
    Efficiency, achieving high energy efficiency,
    Moreover, the life of the vulnerable piece diaphragm and the air valve is improved. Diaphragm and air valve have a guaranteed average life of 5000
    Hours and 8,000 hours or more.
    Ø Full-featured built-in oil supply and pressure regulation system for compressor lubrication and oil
    Cylinder work provides pressure stable, clean quality lubricants and oils
    The road system does not leak, completely different from the traditional diaphragm compressor oil system.
    It belongs to our company's patented technology.
    Ø User-friendly instrument interface and middle window, simple oil and gas pipeline.

    G2 type industrial hydrogen recycle  diaphragm compressor , technical data as follows

    Characteristics of G2 series diaphragm compressor
    Small diaphragm compressor:Small and medium diaphragm compressors;
    Structure type: Z, L, V, D type
    Lubrication method: forced lubrication
    Replenishment method: forced replenishment
    Cooling method: water or air cooling
    Repair single piece maximum weight: 100-120kg
    Maximum space for maintenance: no less than 1 meter around
    Maximum space for maintenance: no less than 1 meter around

    Model Flow Rate Nm3/hr Suction Pressure .Mpa Discharge pressure.Mpa Water Consumption L/hr Speed .rpm Motor.KW Dimension L*W*H mm Weight kgs
    GL2-15/200 15 atmosphere 20 700 400 7.5 1700x850X1150 1100
    GL2-30/13 30 atmosphere 1.3 700 400 7.5 1700X850X 1150 1200
    GL2-30/13-200 30 1.3 20 700 400 7.5 1700X850X1150 1000
    GL2-25/1-160 25 0.1 16 1000 400 11 1700X850X 1150 1100
    GL2-40/4-160 40 0.4 16 1000 400 11 1700X850X1150 1050
    GL2-50/7-160 50 0.7 16 1200 400 11 1700X850X1150 1000
    GL2-40/7-320 40 0.7 32 1200 420 11 1700X850X1150 900
    GL2-60/12-160 60 1.2 16 1000 360 11 1700X850X1150 900
    GL2-40/13-400 40 1.3 40 1000 400 11 1700X850X1150 900
    GL2-30/4-350 30 0.4 35 1000 420 11 1700X850X1150 900
    GL2-60/30-400 60 3 40 1200 400 11 1700X850X 1150 850
    GL2-15/350 15 0 35 1500 400 18.5 1700X 1200X 1150 1500
    GZ2-10/10-150 10 1 15 400 420 4 1400X850X1150 800
    GZ2-15/13 15 atmosphere 1.3 400 400 4 1400X850X1150 800
    GZ2-15/13-200 15 1.3 20 400 400 4 1400X850X1150 750
    GZ2-40/4-30 40 0.4 3 400 400 4 1400X850X1150 800
    GZ2-20/30-400 20 3 40 400 400 4 1400X850X1150 700
    GZ2-100/80-200 100 8 20 600 400 7.5 1400X850X1150 700
