Description

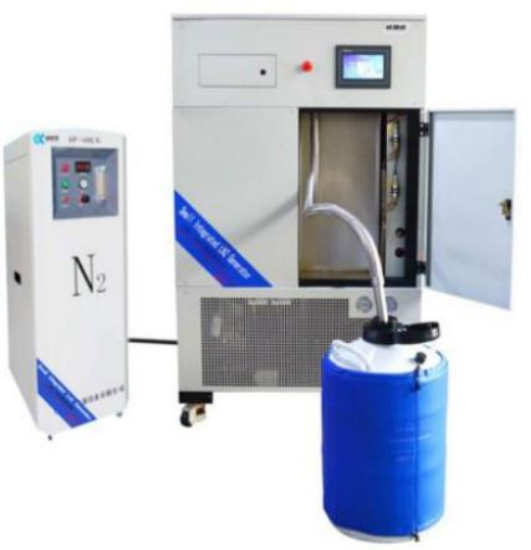

Working principle: liquid nitrogen generator (liquid nitrogen machine) equipment consists of nitrogen generator (built-in or external), refrigeration equipment (gas liquefaction equipment) and duwa tank.The whole machine has the function of one-button start automatic rehydration. When the liquid nitrogen in the liquid nitrogen tank is lower than the set liquid level, the equipment will start automatically.Liquid nitrogen machine manufacturing adopts the principle of mixed working mass throttling cooling, nitrogen liquefaction from ambient temperature to saturated condensation temperature, refrigeration minimum temperature to 196, liquid liquid nitrogen to liquid nitrogen storage liquid nitrogen tank, equipment automatic detection of liquid nitrogen in the duwa tank, automatic control equipment operation.
Product superiority
1. The liquefaction system adopts advanced mixed environmentally friendly refrigerant (MR).
2. Refrigerator without regular maintenance, high reliability, long use cycle and other characteristics.
3. All deep cold pipe fittings use vacuum insulation pipe to reduce cooling loss.
4. Touch-type color Chinese and English operation interface.
5. The equipment has the function of automatic rehydration and automatic control system.
Name |
Technical parameter |
Standard |
Working power |
AC220V50HZ |
|
Complete machine power consumption |
About 2.2Kw |
|
Built-in nitrogen generator |
Purity> 98% |
Chinese Standard |
External or built-in air compressor |
Turbine frequency conversion air compressor |
Chinese Standard |
Built-in Duwa Tank |
7L, 304 Stainless steel |
|
Pre-cooling time |
120min |
|
Refrigeration principle |
Mixed work quality |
|
Refrigerating capacity |
350W |
|
Cooling method |
Air cooling |
|
Touch screen |
One-key type fully automatic control system |
|
Daily production of liquid nitrogen |
≥15L |
|
Level sensor |
Capacitance |
|
The weight of the machine |
≈200Kg |
|
Noise |
<70DBA |
|
The way of add the liquid |
Automatic |
|
