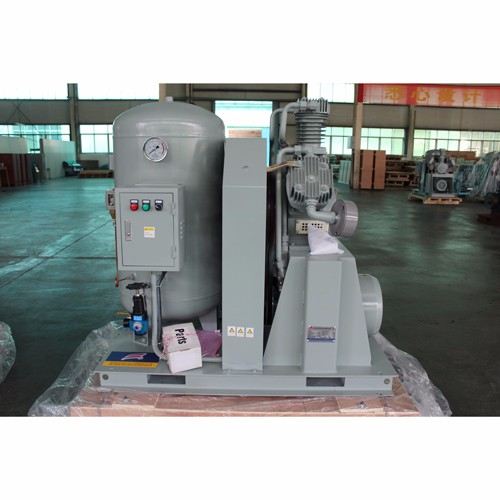

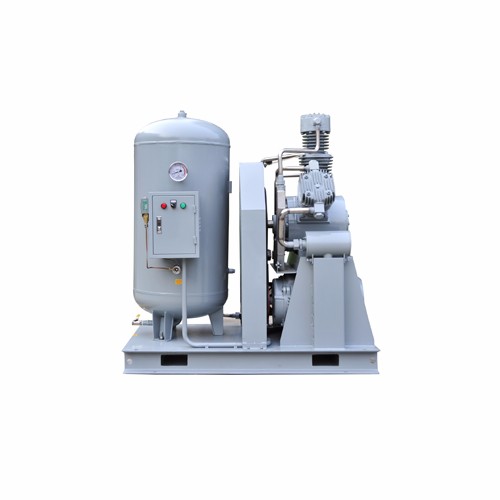

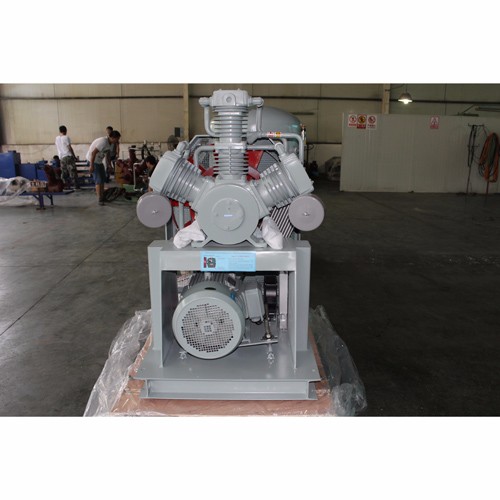

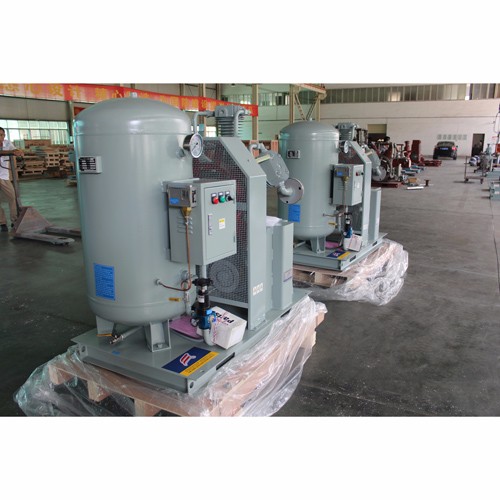

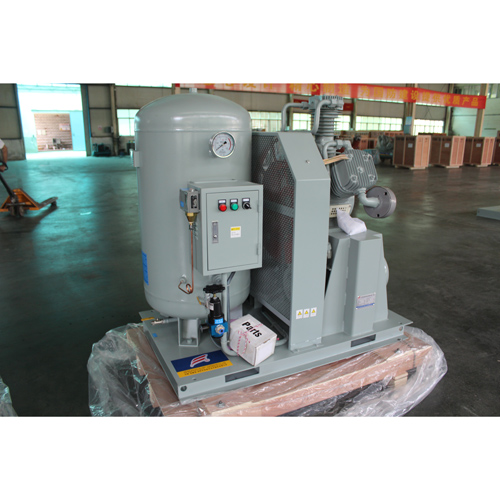

1M3 15bar Oil free Pet bottle blowing air compressor

HomeProductsPet Bottle Blowing compressorOil Free Pet Blowing Compressor1M3 15bar Oil free Pet bottle blowing ai
1M3 15bar Oil free Pet bottle blowing air compressor1M3 15bar Oil free Pet bottle blowing air compressor1M3 15bar Oil free Pet bottle blowing air compressor1M3 15bar Oil free Pet bottle blowing air compressor

1M3 15bar Oil free Pet bottle blowing air compressor

  • Product Item:DWW-1.0/14.5
  • oil free compressor
  • slow speed
  • low maintenance cost
  • reliable quality performance
  • Category:Oil Free Pet Blowing Compressor
  • 1M3 15bar Oil free Pet bottle blowing air compressor
    Inquiry Send Email

    Description

    The PET air compressor is the main body in the air blower of the blow molding machine. It is a device that converts the mechanical energy of the prime mover (usually an electric motor) into gas pressure energy. It is a special blower for compressed air. Air pressure generating device. Blowing air compressors are divided into: low pressure blowing machine (15-25bar), medium pressure blowing machine (25-35bar), high pressure blowing machine (35-40bar).

    There are many types of blown air compressors, which can be divided into piston compressors, screw compressors and centrifugal compressors according to the working principle. The working principle of the volumetric compressor is to compress the volume of gas, so that the density of gas molecules per unit volume is increased to increase the pressure of compressed air; the working principle of the screw compressor is twin-screw compression, so that the gas is in the cavity of the twin-screw compressor. The kinetic energy is converted into the pressure energy of the gas, thereby increasing the pressure of the compressed air. The centrifugal compressor uses the impeller to rotate at a high speed to convert the gas into gas kinetic energy under high-speed centrifugal conditions, thereby providing compressed air pressure.


    S/N

    ITEMS

    TECHNICAL DATA

    1

    Working medium

    AIR

    2

    model

    DWW-1.0/14.5

    3

    Structure

    oil free reciprocating

    3stage 3 cylinder

    4

    Pressure stage

    3

    5

    Rated capacity(standard)m3 /min

    1

    6

    Rated inlet pressure bar(G)

    Atmosphere pressure

    7

    Rated outlet pressure bar(G)

    14.5

    8

    Inlet temperature℃

    ≤40

    9

    Outlet temperature ℃

    ≤55

    10

    Transmit gas temperature℃

    ≤55

    11

    Shaft speed r/min

    660               ※

    12

    Cooling way

    Air cooling

    13

    Lubricate way

    Shaft and connect rod

    Grease seal

    Cylinder

    Oil free



    Shaft power



    14

    Motor power Kw

    11kw 380V 50Hz 3Ph           ※

    15

    Transmit way

    Belt driven

    16

    Installation way

    Simple basement

    17

    Automatic control parts

    Overload ,stop automatic

    18

    External diamension L×W×H mm

    1350*800*1320      ※

    19

    outlet mm

    DN25

    20

    Weight Kg

    450        ※

    21

    Voltage

    380v 50hz 3phase

    22

    Delivery time

    35 days

    23

    Working condition

    Heavy duty
