Description
Argon compressor adopts the refined automatic tongue spring valve made of imported valve sheet steel, to ensure the high volume efficiency, low specific power, and ensure the reliable operation of the compressor, improve the working efficiency of the argon compressor, and prolong the service life of the compressor. The compressor cylinder adopts high-tech processed self-lubricating materials. With independent intellectual property rights of the patent all oil-free lubrication piston ring, guide ring design, so that the gas in the whole compression process, so it is not contaminated by the oil, so as to meet the requirements of high purity compression gas. Argon gas compressor consistently provides high-quality compressed gas for all walks of life with its advantages of high efficiency, high efficiency, maintenance-free and highly reliable, etc.
| S/N | ITEMS | TECHNICAL DATA | |
| 1 | Working medium | Dry argon gas | |
| 2 | model | ArW-5/ 15 | |
| 3 | Structure |
oil free reciprocating 3 stage ,W type |
|
| 4 | Pressure stage | 3 , 3cylinder | |
| 5 | Rated capacity(standard)Nm3/h | 8@inlet pressure=0.001MPa (g) | |
| 6 | Rated inlet pressure MPa(G) | 0.01 | |
| 7 | Rated outlet pressure MPa(G) | 1.5 | |
| 8 | Inlet temperatureºC | ≤40 | |
| 9 | Outlet temperature ºC | ≤55 | |
| 10 | Transmit gas temperatureºC | ≤55 | |
| 11 | Shaft speed r/min | 300 | |
| 12 | Cooling way | Air cooling | |
| 13 |
Lubricat e way |
Shaft and connect rod | Grease seal |
| Cylinder | Oil free | ||
| 14 | Motor power Kw | 2.2 kw 415V 50Hz 3Ph | |
| 15 | Transmit way | Belt driven | |
| 16 | Installation way | Simple basement | |

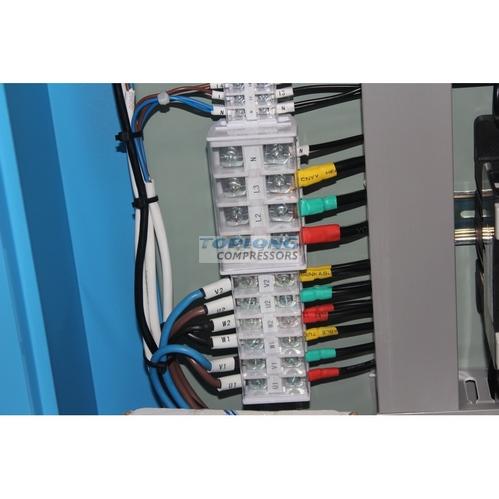

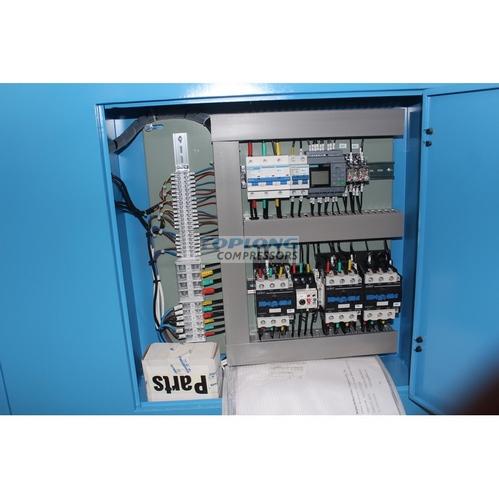

| 17 | Automatic control parts | Overload ,stop automatic | |

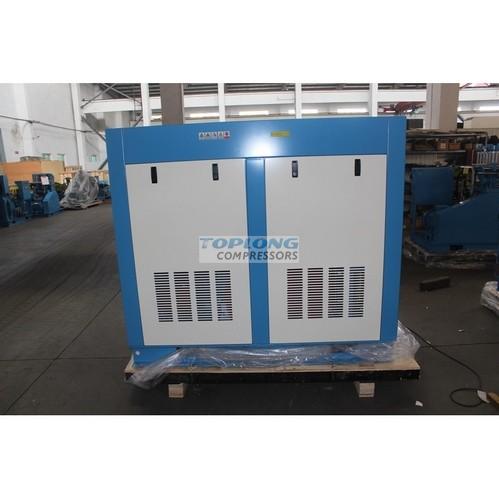

| 18 | External dimension L×W×H mm | 1200X800X1000 | |

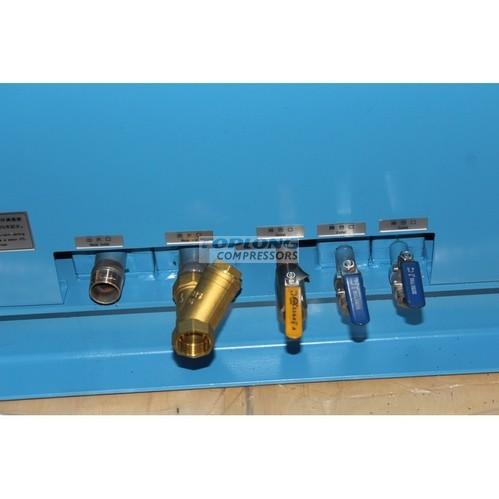

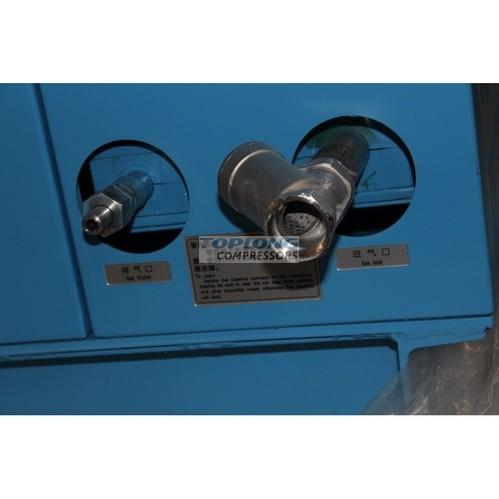

| 19 | Inlet | ||
