Description

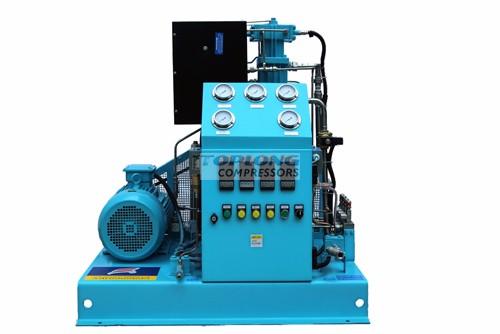

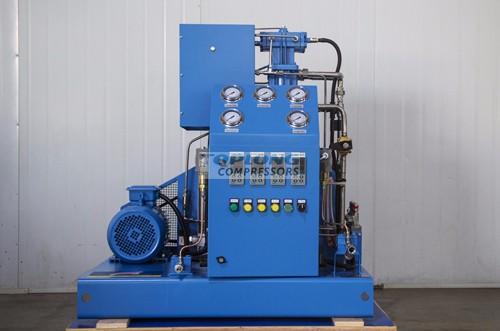

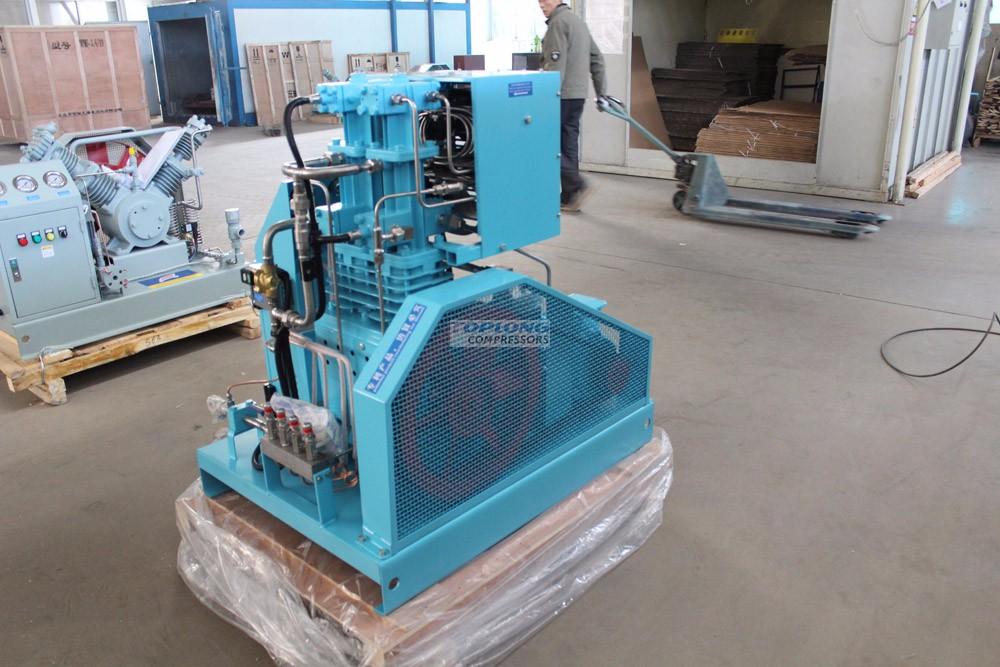

low pressure oil free oxygen compressor supplier parameters:
1. Principle: Oil-free reciprocating piston
2. Cooling type: air or water cooling
3. Power consumption: ≤55kw
4. Speed: 300-560rpm
5. Flow rate: ≤800Nm3/h
6. Inspiratory pressure: 0-0.5Mpa
7. Exhaust pressure: ≤30Mpa
8. Compression level: 1-4
Main features of reciprocating oil free oxygen compressor products:
All oil-free lubrication is clean and non-polluting.
High efficiency and low energy consumption.
High reliability, continuous operation for 24 hours.
The unit is air-cooled or water-cooled to reduce installation costs.
Compact structure, low operating and maintenance costs.
oil free reciprocating oxygen compressor parameters:
| Model | GOW-10/4-150 |
| Power(Hp,Kw) | 4KW |
| Working Pressure(Bar,Psi) | 150,2160 |
| Air Delivery(L/min,CFM) | 10 Nm3/Hr |
| Inlet pressure ,outlet pressure | 0.2-0.4Mpa, 10Mpa/15Mpa/20Mpa/23Mpa/30Mpa |
| Speed(r.p.m) | 200-400 |
| pressure stage | 4 |
| Net Weight(Kgs) | 300 |
| Cooling way | Air cooling |
Kinly note ,if you have oxygen compressor oil free reciprocating inquiry please tell us follows information when you send inquiry:
*Compressor working medium:
If single gas ,how many purity ? if mixed gas , what’s gas content lit ?
*Suction pressure(gauge pressure): barg
*Exhaust pressure(gauge pressure): barg
*Flow rate per hour for compressor: (Nm3/hr):
Compressor gas suction temperature ?
Compressor working hours per day : hours
Compressor working site altitude : m
Environment temperature ℃:
low three phase voltage and frequency :
