Description

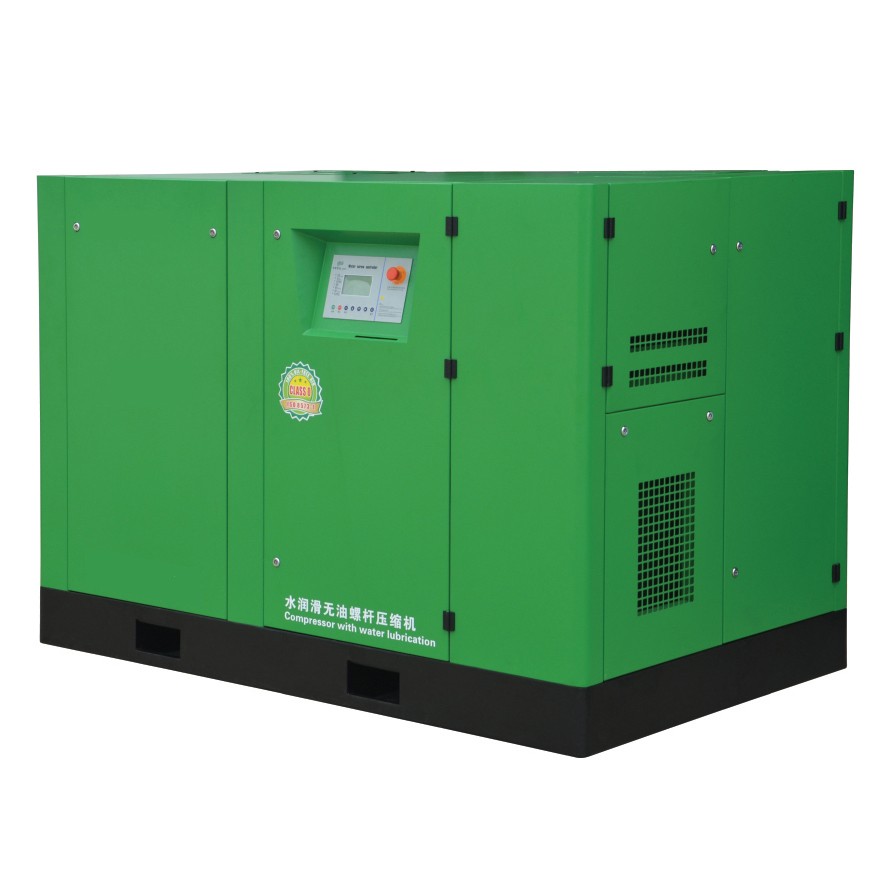

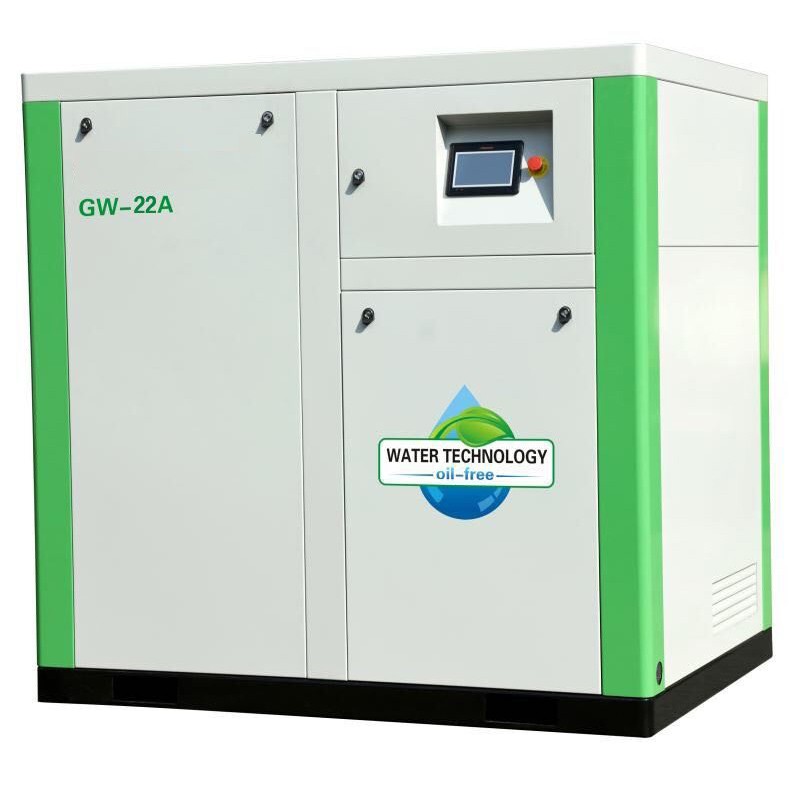

GW Series Smart Energy-Saving Water Lubricating Oil-Free Screw Compressor:
Self-learning function, intelligent start/stop;
Detect the ambient temperature to prevent the ambient temperature from being too high temperature to cause high-temperature failure;
Self-learning function, intelligent start/stop;
Detect the ambient temperature to prevent the ambient temperature from being too high temperature to cause high-temperature failure;
Detect the terminal pressure of the post-treatment equipment to effectively prevent the compressed air's pressure different from being too high to wasteelectric energy;
Detect the motor's temperature to protect it.
| Model | Maxinmum work pressure MPa | AAD m3/min | Motor power kw | noise dB | Ppe diameters oACooling waterinlet and outlet | Quantity oA cooling water | Lubricating water L | dimension | weight kg | Air outlet |
| 32P Water entering^P T/H | LxWxH mm | |||||||||
| GW06A/W | 0.8 1.0 | 0.78 0.65 | 5.5 | 57 | 3/4" | 1.5 | 10 | 800x800x1100 | 430 | 3/4" |
| GW08A/W | 0.8 1.0 | 1.17 1.05 | 8 | 57 | 3/4" | 2 | 10 | 800x800x1100 | 470 | 3/4H |
| 1.25 | 0.81 | |||||||||
| GW11A/W | 0.8 1.0 | 1.72 1.42 | 11 | 60 | 1" | 2.5 | 26 | 1200x760x1300 | 580 | 3/4" |
| 1.25 | 1.10 | |||||||||
| 0.8 | 2.43 | |||||||||
| GW15A/W | 1.0 | 2.17 | 15 | 60 | 1" | 3.5 | 26 | 1200x760x1300 | 620 | 3/4“ |
| 1.25 | 1.80 | |||||||||
| 0.8 | 3.13 | |||||||||
| GW18A/W | 1.0 | 2.82 | 18.5 | 63 | 1" | 4 | 30 | 1400x900x1450 | 680 | 1H |
| 1.25 | 2.05 | |||||||||
| 0.8 | 3.62 | |||||||||
| GW22A/W | 1.0 | 3.21 | 22 | 63 | T1 | 5 | 30 | 1400x900x1450 | 730 | 1" |
| 1.25 | 2.78 | |||||||||
| 0.8 | 5.12 | |||||||||
| GW30A/W | 1.0 | 4.43 | 30 | 66 | 1 1/2H | 7 | 40 | 1550x1150x1500(A) | 1100 | 1 1/4" |
| 1.25 | 3.63 | 1500x1150x1300(W) | ||||||||
| 0.8 | 6.30 | |||||||||
| GW37A/W | 1.0 | 5.33 | 37 | 66 | 1 1/2" | 9 | 40 | 1550x1150x1500(A) | 1150 | 1 1/4" |
| 1.25 | 4.77 | 1500x1150x1300(W) | ||||||||
| 0.8 | 7.8 | |||||||||
| GW45W | 1.0 | 6.30 | 45 | 68 | 1 1/2H | 10 | 90 | 1800x1300x1750(A) | 1390 | 2" |
| 1.25 | 5.56 | 1800x1300x1680(W) | ||||||||
| 0.8 | 9.76 | |||||||||
| GW55W | 10 | 855 | 55 | 69 | 1 1/2" | 12 | 100 | 1980x1300x1750(A) | 1470 | 2" |
| 1.25 | 7.67 | 1800x1300x1680(W) | ||||||||
| 0.8 | 13.00 | |||||||||
| GW75W | 1.0 | 11.50 | 75 | 72 | 1 1/2" | 18 | 100 | 1800x1300x1750(W) | 1630 | 2" |
| 1.25 | 9.70 | |||||||||
| 0.8 | 16.60 | |||||||||
| GW90W | 1.0 | 14.66 | 90 | 73 | 1 1/2" | 20 | 120 | 2200x1550x1800 | 2350 | 2 1/2" |
| 1.25 | 12.60 | |||||||||
| 0.8 | 19.97 | |||||||||
| GW110W | 1.0 | 16.66 | 110 | 77 | 2" | 24 | 120 | 2200x1550x1800 | 2460 | 2 1/2" |
| 1.25 | 15.56 | |||||||||
| 0.8 | 22.52 | |||||||||
| GW132W | 1.0 | 19.97 | 132 | 77 | 2" | 30 | 120 | 2200x1550x1800 | 2500 | 2 1/2" |
| 1.25 | 16.90 | |||||||||
| 0.8 | 28.11 | |||||||||
| GW160W | 1.0 | 25.45 | 160 | 79 | 3" | 35 | 160 | 3000x1800x2100 | 3700 | 3" |
| 1.25 | 22.52 | |||||||||
| 0.8 | 33.97 | |||||||||
| GW185W | 1.0 | 29.00 | 185 | 79 | 3" | 38 | 160 | 3000x1800x2100 | 3750 | 3" |
| 1.25 | 25.21 | |||||||||
| 0.8 | 36.75 | |||||||||
| GW200W | 1.0 | 32.78 | 200 | 80 | 4" | 42 | 200 | 3100x1850x2100 | 3900 | 4" |
| 1.25 | 29.24 | |||||||||
| 0.8 | 39.67 | |||||||||
| GW220W | 1.0 | 36.75 | 220 | 80 | 4" | 47 | 200 | 3100x1850x2100 | 4200 | 4" |
| 1.25 | 29.63 | |||||||||
| 0.8 | 44.78 | |||||||||
| GW250W | 1.0 | 39.67 | 250 | 80 | 4” | 53 | 200 | 3100x1850x2100 | 4600 | 4" |
| 1.25 | 33.97 |
