high pressure oil free nitrogen diaphragm compressor for cylinder filling

Description

oil free nitrogen diaphragm compressor for cylinder filling , is a reciprocating compressor that reciprocates in a cylinder to compress and transport gas.
The cylinder filling diaphragm nitrogen compressor is a special type of volumetric compressor with large compression ratio, good sealing performance, and the compressed gas is not polluted by lubricating oil and other solid impurities. Therefore, it is suitable for compressing high purity, rare and precious, flammable, explosive, toxic and harmful, corrosive and high pressure gases.

nitrogen cylinder filling diaphragm compressor, are one of many types of compressors. It has a special name because it has a special diaphragm that separates the compressed medium from the outside. The diaphragm compressor can also be referred to simply as a membrane compressor. Due to its special structure, the oxygen reciprocating low pressure diaphragm compressor does not need lubrication, and the sealing performance is very good. The compressed medium is not in contact with any slip agent, so it can compress the gas with very high purity, generally achieving a purity of 99.999%, which is more suitable for compression. And transport all kinds of precious rare gases. In addition, for corrosive, radioactive, toxic, and explosive gases, diaphragm compressors are also particularly suitable. The diaphragm compressor has good heat dissipation and can adopt a high compression ratio, so its pressure range is wide, and the exhaust pressure can be up to 500MPa. It is used in the food industry, petroleum industry chemical industry, electronics industry, nuclear power plant, aerospace, military equipment, medicine, scientific research and other fields.

G3 industrial hydrogen diaphragm compressor|nitrogen compressor|is a non-standard compressor product, G3 diaphragm compressor is divided into single cylinder GZ3 and double cylinder GL3 and GD2 diaphragm compressor, G3 diaphragm compressor piston force 5.5TON, Customized according to different customer parameters, requirements and environment!

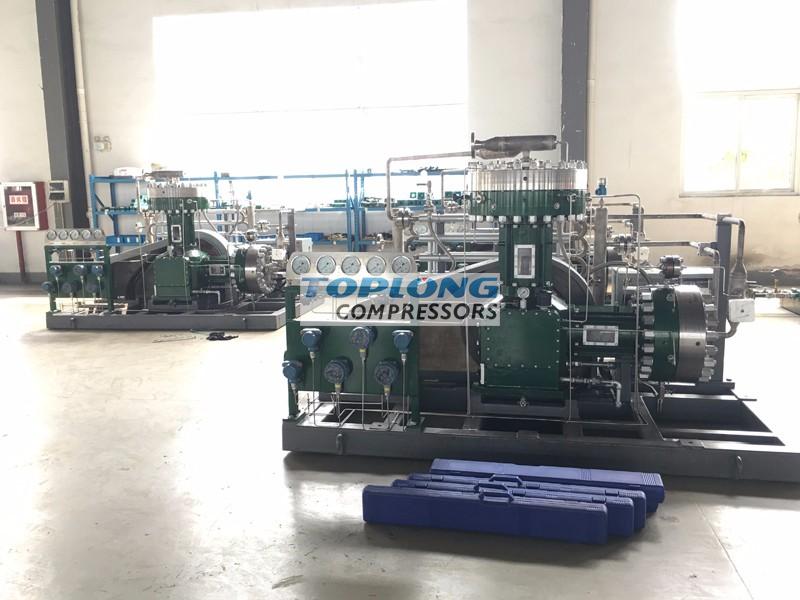

GZ3 oil free cylinder filling diaphragm nitrogen compressor is composed of cylinder block, cylinder head, crankshaft connecting rod, diaphragm, oil circuit, gas path, water cooling system and motor drive. The G3 and G3 diaphragm compressor series products are available from our company. Cooling method: air cooling and water cooling.
Company product features
Ø Advanced oil-free disc cylinder component structure reduces the difficulty of assembly process; reduces sealing surface; alarm when leakage medium leaks, improves the reliability of the whole machine.
Ø The oil consumption of the whole machine hydraulic oil is small, which is 1/2 of the oil used in the traditional diaphragm compressor. The economic advantage is very obvious for the oxygen compressor.
Ø New membrane cavity curve, Kezan
Nie or HOERBIGER's air valve,
Leading diaphragm surface treatment technology
Improves the work of the compressor
Efficiency, achieving high energy efficiency,
Moreover, the life of the vulnerable piece diaphragm and the air valve is improved. Diaphragm and air valve have a guaranteed average life of 5000
Hours and 8,000 hours or more.
Ø Full-featured built-in oil supply and pressure regulation system for compressor lubrication and oil
Cylinder work provides pressure stable, clean quality lubricants and oils
The road system does not leak, completely different from the traditional diaphragm compressor oil system.
It belongs to our company's patented technology.
Ø User-friendly instrument interface and middle window, simple oil and gas pipeline.

G3 type oil free cylinder filling diaphragm nitrogen compressor , technical data as follows

Characteristics of G3 series diaphragm compressor
Medium diaphragm compressor;
Structure type: Z, L, V, type
Lubrication method: forced lubrication
Replenishment method: forced replenishment
Cooling method: water or air cooling
Repair single piece maximum weight: 300-800kg
Maximum maintenance space: no less than 1.5 meters around

Model	Flow Rate Nm3/hr	Suction Pressure .Mpa	Discharge pressure.Mpa	Water Consumption L/hr	Speed .rpm	Motor.KW	Dimension L*W*H mm	Weight kgs
GL3-40/200	40	atmosphere	20	1600	400	22	2800x1600X2000	4500
GL3-80/13	80	atmosphere	1.3	1600	400	22	2800X1600X2000	5000
GL3-110/20-200	110	2	20	1600	400	30	2800X1600X2000	4000
GL3-20-200	20	atmosphere	20	800	400	15	2800X1600X2000	4000
GL3-50/5-160	50	0.5	16	2000	400	30	2800X1600X2000	4200
GL3-150/10-160	150	1	16	3500	360	37	2800X1600X2000	4200
GL3-80/7-320	80	0.7	32	2500	400	30	2800X1600X2000	4000
GL3-180/12-160	180	1.2	16	3500	360	37	2800X1600X2000	4200
GL3-120/13-400	120	1.3	40	3000	400	37	2800X1600X2000	4000
GL3-80/4-350	80	0.4	35	3000	400	30	2800X1600X2000	4200
GL3-150/30-400	150	3	40	2500	360	30	2800X1600X2000	4000
GL3-200/20-200	200	2	20	3000	360	37	2800X1600X2000	4200
GZ3-50/10-150	50	1	15	1000	400	11	2400X1400X2000	3500
GZ3-40/13	40	atmosphere	1.3	1000	400	11	2400X1400X2000	3600
GZ3-40/13-200	40	1.3	20	1000	400	11	2400X1400X2000	3500
GZ3-150/5-30	150	0.5	3	1500	400	18.5	2400X1400X2000	3600
GZ3-40/30-400	40	3	40	1000	400	11	2400X1400X2000	3400
GZ3-600/83-85	600	8.3	8.5	600	300	7.5	2400X1400X2000	3400
